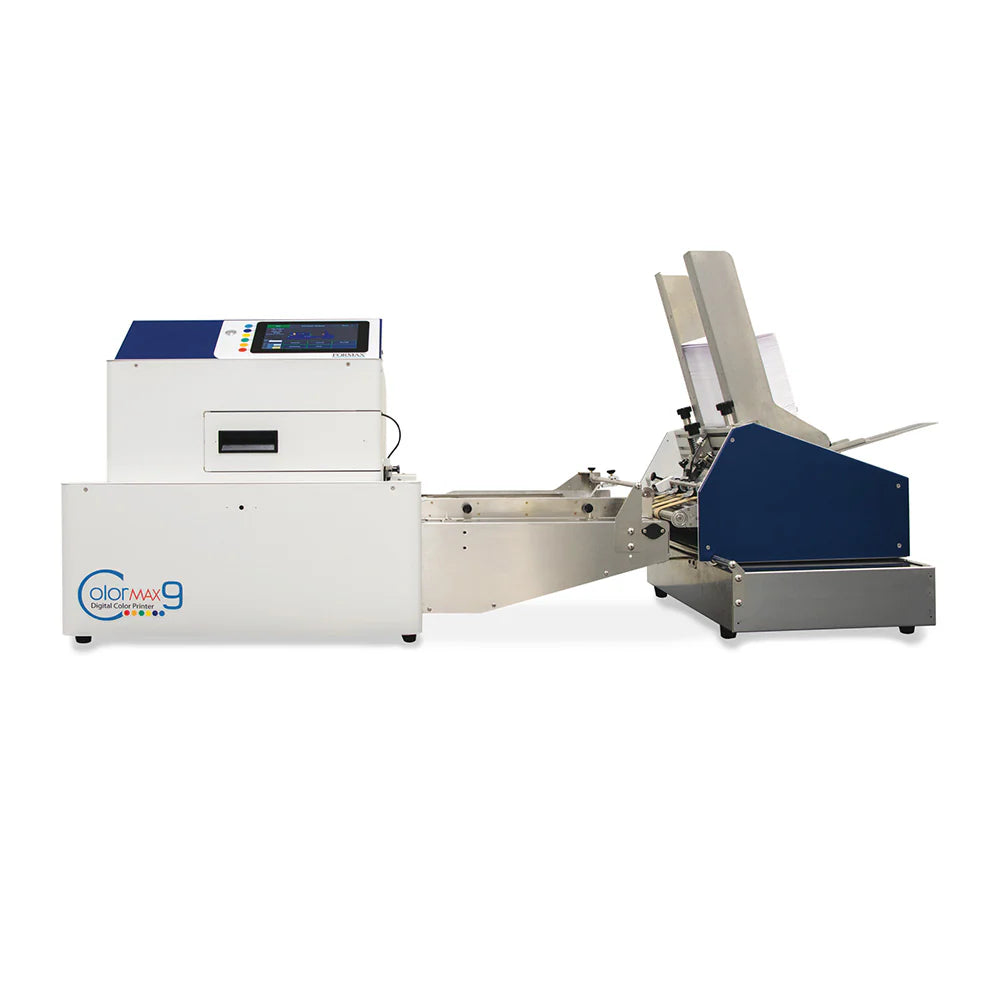

Formax ColorMax9 Digital Color Printer
User Manual: View PDF File
Installation Manual: View PDF File
✓ Prints on media up to 3/8" thick
✓ 7" color touchscreen interface
✓ Up to 8,000 #10 envelopes per hour
✓ 1600 x 1600 dpi resolution
✓ 16.8 million colors output
✓ Memjet® technology with 70,400 nozzles
✓ Prints on various materials
✓ Up to 60 GB job storage
✓ High-capacity ink tanks
✓ Automated print head maintenance
✓ USB and Ethernet connectivity
✓ 400,000 prints per month duty cycle
✓ Thermal inkjet technology
✓ Clamshell design for easy access
- Advanced inkjet technology for full-bleed, full-color mailing and packaging solutions with low cost per piece
- Wide, flat paper path accommodates media up to 3/8" thick, including stuffed envelopes, flats, cardboard, and padded envelopes
- Memjet® print head with 70,400 ink nozzles offers higher speeds, lower costs, and quieter operation
- Intuitive 7" color touchscreen for easy control, system status monitoring, and access to stored print jobs
- Produces full-color CMYK output with up to 16.8 million colors and 1600 x 1600 dpi resolution
- Prints at speeds up to 8,000 #10 envelopes per hour
- Thermal inkjet technology allows safe printing on pre-printed and windowed envelopes
- High-capacity ink tanks and automated print head cleaning for consistent print quality
- Full-bleed printing capability on media up to 8.5" wide
- Addressing and variable data printing functionality
- Electronic thickness control and pressure roller infeed transport system
- Up to 60 GB of job storage capacity
- USB and Ethernet PC interface for seamless connectivity
- Clamshell design for easy access to ink tanks and maintenance
| Print Quality | Up to 1600 x 1600 @ 6 inches per second |
| Speed | Up to 3,600/hour 11” sheet |
| Up to 8,000/hour #10 envelope, landscape | |
| Duty Cycle | Up to 400,000 prints per month |
| Material Size | Min: 3” W x 4” L Max: 10.5” W x 17” L |
| Material Thickness | Up to 3/8” (10mm) |
| Print Area | Up to 8.77” x 40” with full bleed under 8.6” |
| Ink Tank Capacity | C 250ml, M 250ml, Y 250ml, K 500ml x2 |
| Color Matrix | Up to 16.8 million colors |
| Job Storage | Up to 60 GB of saved jobs |
| PC Interface | USB & Ethernet |
| Fonts | All available TruType or Postscript |
| Dimensions | 38” (87” with conveyor) L x 22” W x 22” H |
| 965 (2210 w/conveyor) x 559 x 559mm | |
| Weight | 120 lbs (55kg) |
| Electrical | 110-240VAC, 60Hz / 2A |
| Certifications | UL approved, CE declared |
Product Description:
Transform your mailing and packaging workflow with the ColorMax9 Digital Color Printer. Designed for short-run inkjet printing at production-level speeds, this powerhouse delivers vibrant full-color output on envelopes and a wide range of mailing and packaging materials. Whether you're printing dynamic variable data, eye-catching graphics, or high-volume address runs, the ColorMax9 combines speed, versatility, and exceptional print quality to keep your operations running at peak efficiency.
Powered by HP Thermal Inkjet technology with a stationary print head featuring over 59,000 nozzles, the ColorMax9 produces stunning 1200 x 1200 dpi output with vibrant pigment-based inks that resist fading, scratches, and water damage. Its intelligent belt feeding system and built-in registration ensure pinpoint accuracy, especially in landscape mode, while digital thickness control accommodates media up to 1/2" thick and 15" wide. The intuitive 7" color touchscreen provides centralized control over image preview, system status, and access to up to 64 GB of stored print jobs. With production speeds of up to 10,000 #10 envelopes per hour, an all-metal housing, and a robust Made-in-USA build, the ColorMax9 sets the standard for reliable, high-output color printing.
Video of Formax ColorMax9 Digital Color Printer
