Spec Sheet: View PDF File
✓ Foot pedal activated electric punching
✓ Precision vertical punching system
✓ Punching speed up to 16,000 sheets per hour
✓ Binding speed up to 200 booklets per hour
✓ Binds booklets up to 480 sheets
✓ Comb sizes from 1/4 inch to 2 inches
✓ Specially hardened, disengageable punch pins
✓ Variable margin depth
✓ Page size adjustment knob
✓ Lever-activated comb opening and closing with closure control
✓ Easy-empty sliding waste tray
✓ Heavy-duty all-metal construction, compact design
✓ 115V, 60Hz, 90W power supply
- Electric punch and manual comb binding system for organizations with low to medium volume punch and binding needs
- Foot pedal activated electric punch keeps production moving, with punching speeds up to 16,000 sheets per hour
- Precision vertical punching system uses gravity to keep sheets in place for consistent hole placement on document sets up to 0.098 inch (2.5mm) thick
- Specially hardened punch pins can be disengaged individually without tools to prevent partially punched holes on various paper sizes

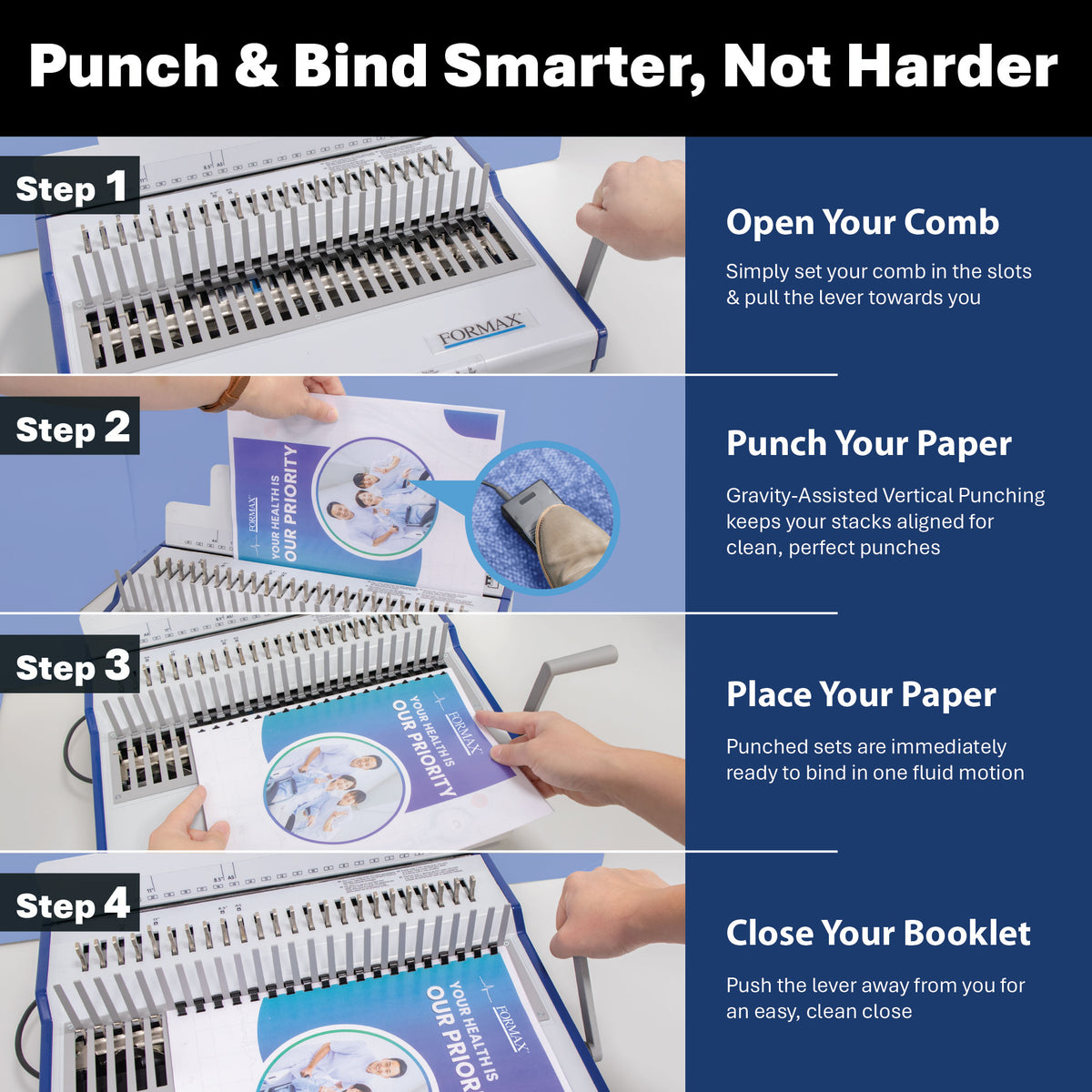

- Lever-activated comb open and close mechanism with closure control secures booklets up to 480 sheets
- Binds up to 200 booklets per hour using comb sizes from 1/4 inch to 2 inches (6 to 52mm)
- Comb binding allows pages to be added or removed without damage to the document or the binding
- Page size adjustment knob changes paper size settings in less than one second
- Quick-adjust binding dimensions and variable margin depth for accurate binding across different projects
- Rectangular 8.0 x 3.0mm punch holes on US pitch, with a punching width of 0.39 inch to 13.4 inches (10 to 340mm)
- Easy-empty sliding waste tray for quick cleanup
- Heavy-duty all-metal construction in a compact 20 x 14 x 9.75 inch footprint at 57 lbs
| Punching Speed | Up to 16,000 sheets/hr |
| Punching Width | 0.39 inch - 13.4 inches (10 - 340mm) |
| Unpunched Length | 1.96 inches - 19.6 inches (50 - 500mm) |
| Max. Punching Thickness | Up to 0.098 inch (2.5mm) |
| Punching Operation | Electric, foot pedal |
| Punch Hole Dimensions | Rectangular 8.0 x 3.0mm |
| Pitch | US |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | Yes |
| Binding Thickness | 0.04 inch - 1.88 inches (1 - 48mm) |
| Sheets Per Booklet | Up to 480 sheets |
| Comb Size | 1/4 inch - 2 inches (6 - 52mm) |
| Binding Operation | Manual, lever operated |
| Binding Speed | Up to 200 booklets/hr |

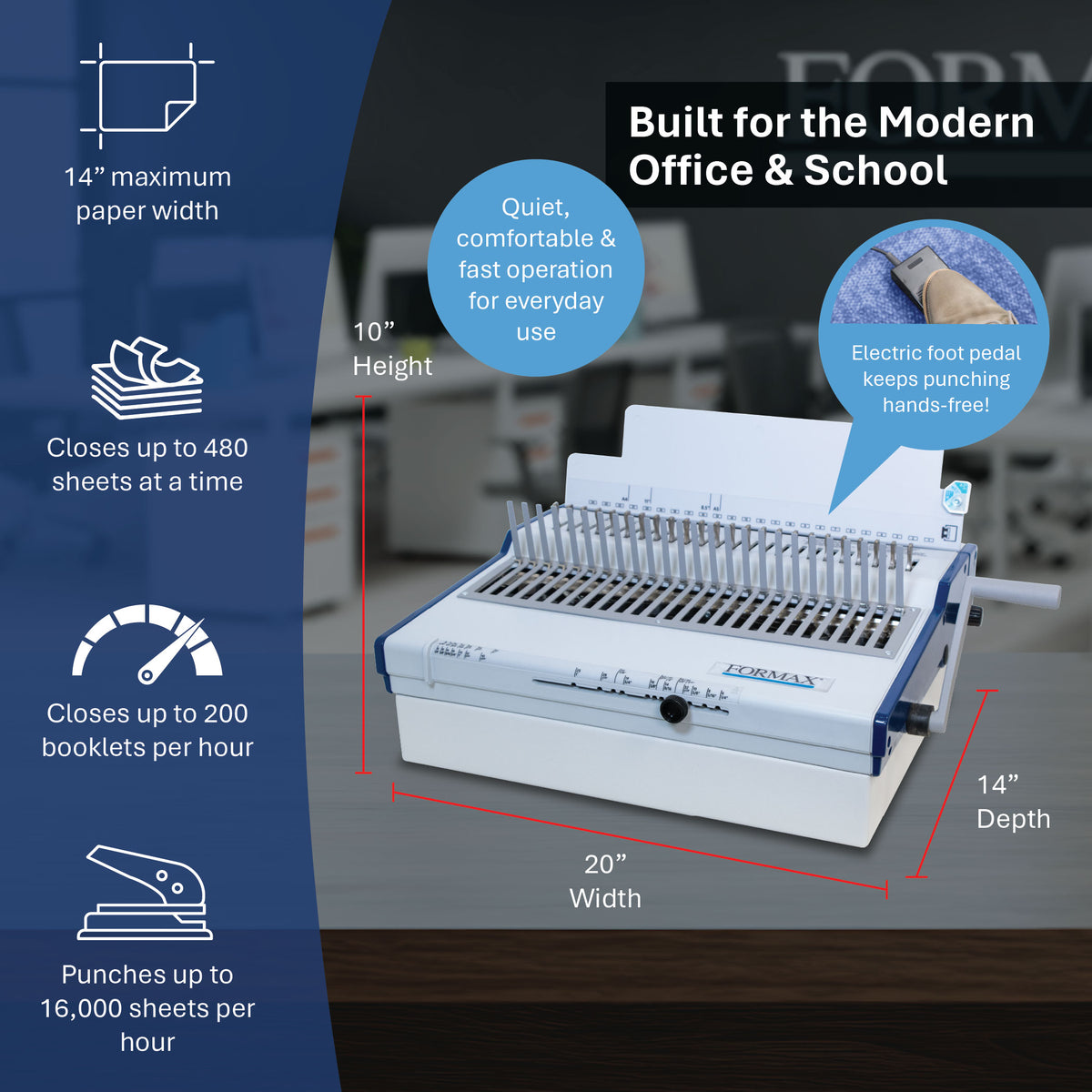

| Dimensions | 20 x 14 x 9.75 inches (508 x 355 x 247mm) |
| Weight | 57 lbs (26kg) |
| Power | 115V, 60Hz, 90W |
Product Description:

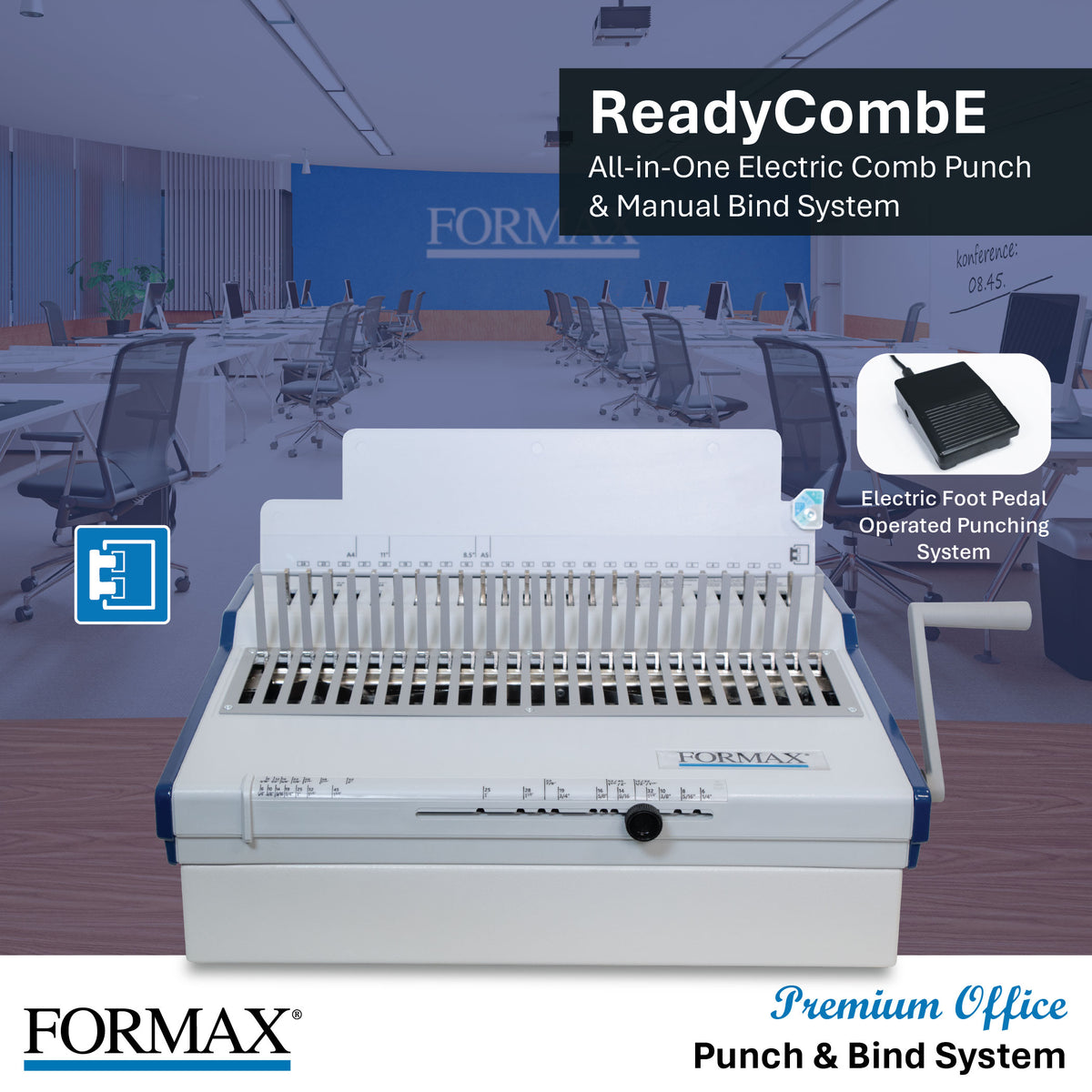

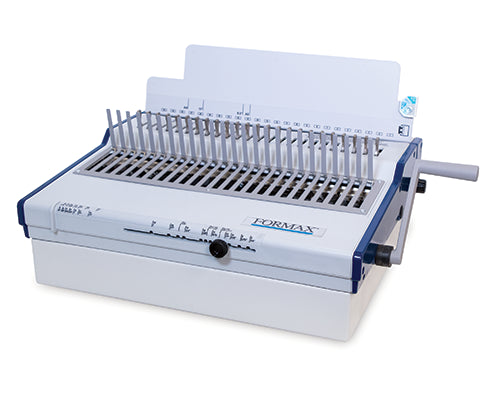

The Formax ReadyCombE Electric Punch and Manual Comb Binding Machine is an office comb binding system that pairs an electric, foot pedal activated punch with a manual lever-operated comb binder. Designed for organizations with low to medium volume punch and binding needs, it punches up to 16,000 sheets per hour, binds up to 200 booklets per hour, and handles booklets up to 480 sheets thick. Comb binding allows pages to be added or removed without damaging the document or the binding, which makes it useful for documents that need regular updates.
The precision vertical punching system uses gravity to keep every sheet in place for consistent hole placement, even on thicker document sets, and the foot pedal activation keeps production moving quickly. Specially hardened punch pins are easy to access and can be disengaged individually without tools to prevent partially punched holes on different paper sizes. The lever-activated comb open and close mechanism with closure control secures booklets up to 480 sheets, while user-friendly adjustment knobs allow quick changes to page size, margin depth, and binding dimensions. With heavy-duty all-metal construction and an easy-empty sliding waste tray, the ReadyCombE is suited for offices, schools, and print rooms that produce comb bound documents on a regular basis.
