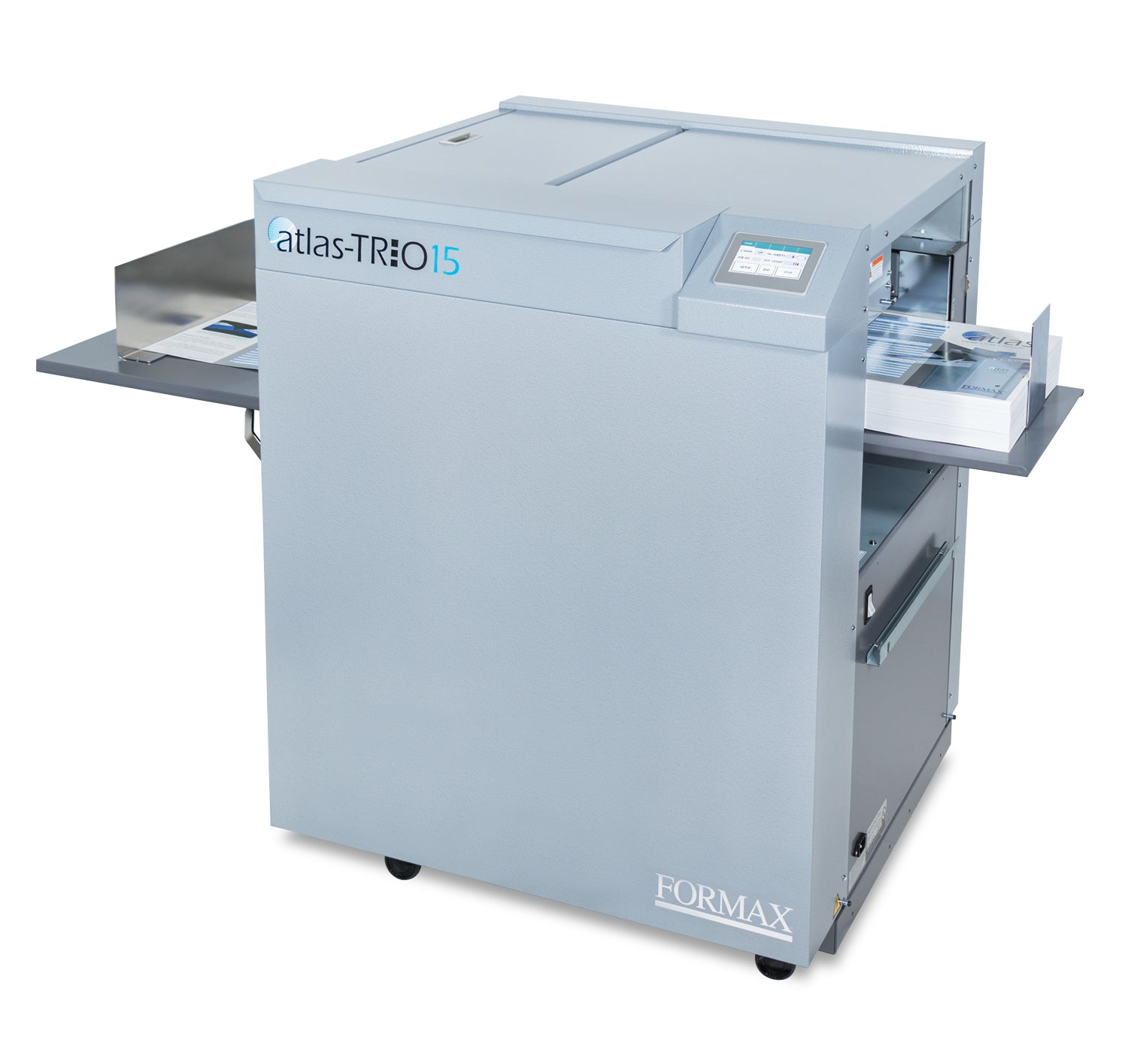

Formax Atlas-TRIO15 Multi-Function Creaser / Cutter / Slitter
Spec Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Installation Manual: View PDF File
✓ 13" W x 27.5" L sheet capacity
✓ 120-350gsm paper weight range
✓ 4" touchscreen control panel
✓ 150 custom job storage
✓ Upper-belt tri-suction feeding system

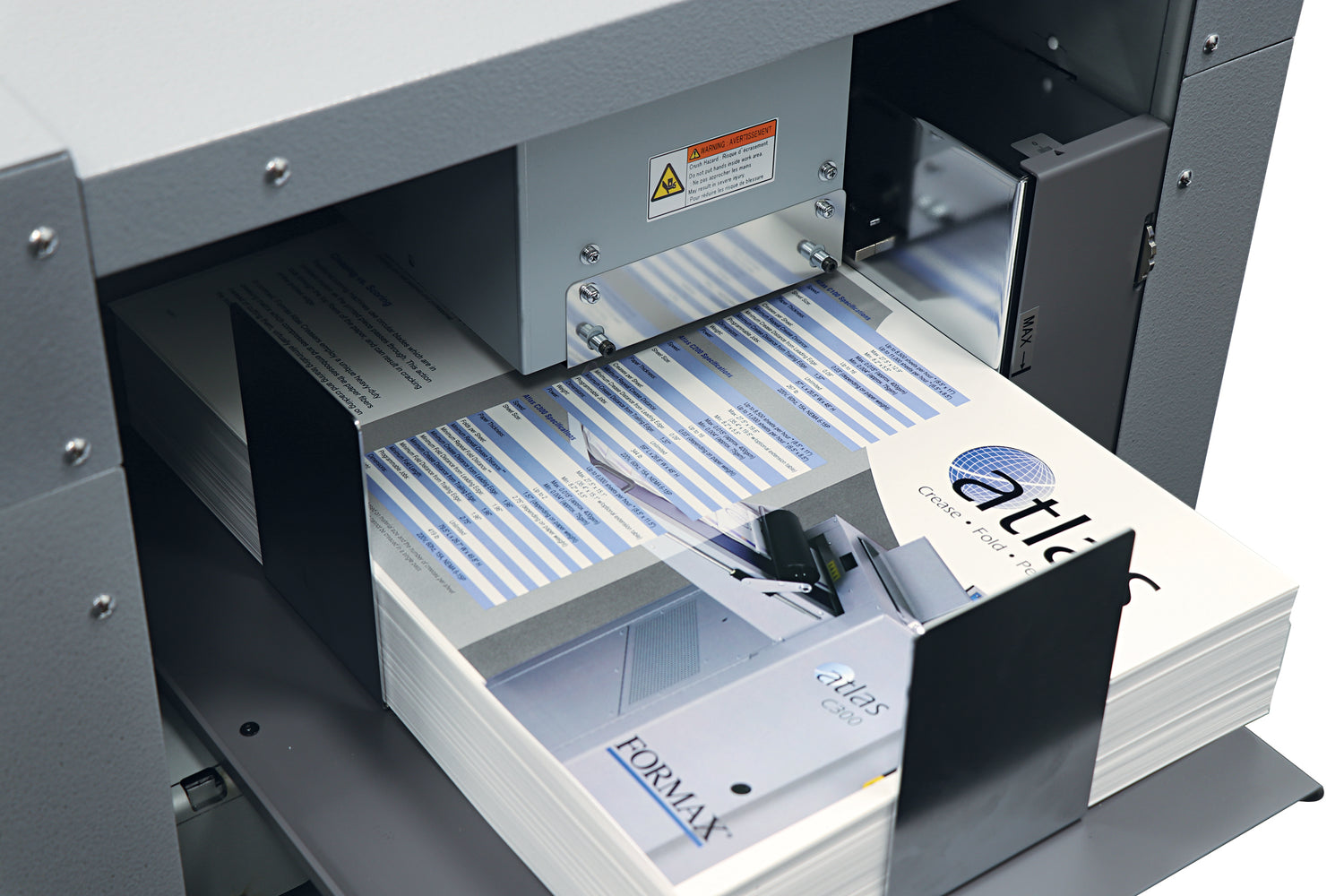

✓ Automatically elevating feed table
✓ Double-feed detection
✓ Cut-mark registration
✓ Side alignment guide
✓ Two standard slitting guides
✓ Up to 250 business cards in 2 minutes
✓ Up to 5,000 single-crease jobs per hour
✓ Ideal for digital print environments
✓ Optional long sheet kit available
- Multi-function digital print finishing solution that slits, cuts, and creases in a single pass, ideal for business cards, postcards, brochures, booklet covers, and greeting cards
- High-speed production capabilities, processing up to 250 business cards in under 2 minutes and up to 5,000 single-crease jobs per hour
- Versatile media handling, accommodating sheets up to 13" W x 27.5" L and weights from 120-350gsm

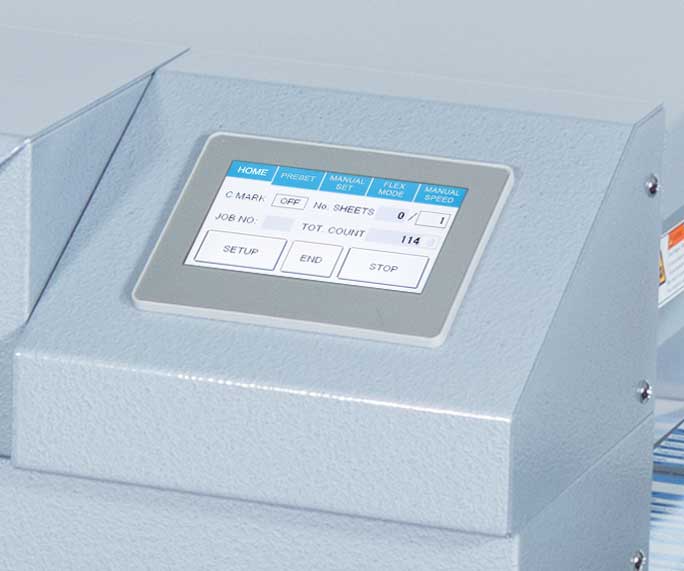

- User-friendly 4" touchscreen control panel with three operational modes: Preset, Manual, and Flex, allowing for maximum customization
- Storage capacity for up to 150 custom jobs, enabling quick and easy recall of frequently used settings
- Advanced feeding system featuring upper-belt tri-suction technology and an automatically elevating feed table for enhanced accuracy and reliability
- Comprehensive set of standard features including double-feed detection, cut-mark registration, side alignment guide, and skew adjustment
- Two standard slitting guides included, with optional custom slitting guides available for specialized applications
- Seamless integration with digital print environments, offering a efficient solution for on-demand finishing needs
- Ability to handle large and heavy stocks, making it suitable for a wide range of print finishing applications
| Speed | 24-up business cards, up to 8 sheets/min |
| 4-up postcards (12” x 18”), up to 10 sheets/min | |
| 2 cut / 2 slit / 1 crease (8.5” x 11”), up to 15 sheets/min | |
| 1 crease (8.5” x 11”), up to 5,000 sheets/hour | |
| Feed Capacity | Pile height up to 4” |
| Paper Sizes | 8” - 13” W x 8” - 19” L (203 - 330mm/483mm) |
| 13” W x 27.5” L w/optional long sheet kit (330 x 699mm w/optional long sheet kit) | |
| Paper Weight | 32# bond - 130# cover (120-350gsm) |
| Programmable Jobs | Up to 150 |
| Dimensions | 33” W x 31” D x 43” H (838 x 787 x 1092mm) |

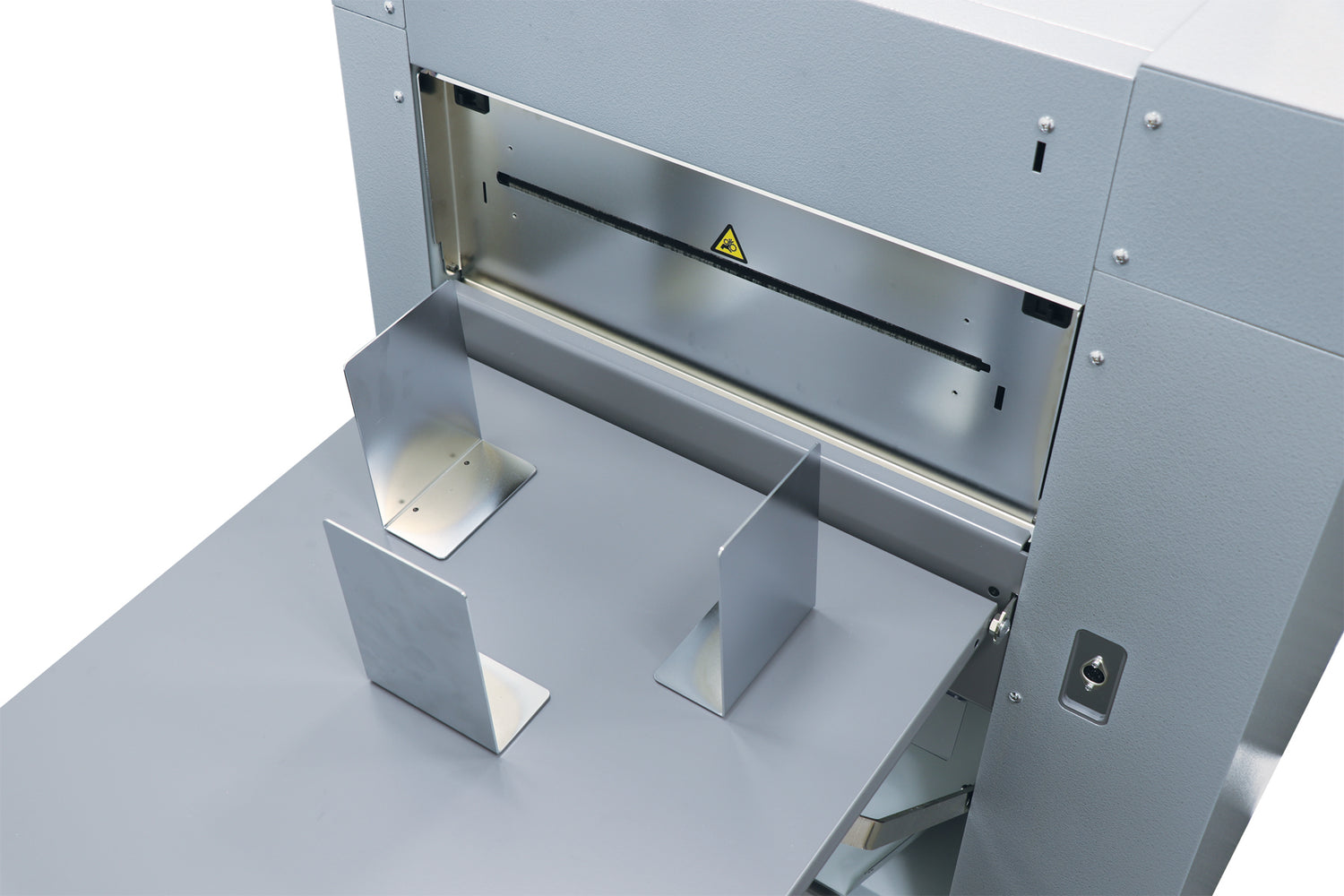

| Dimensions w/outfeed stacker 63” W x 31” D x 43” H (1600 x 787 x 1092mm) | |
| Weight | 440 lbs (200kg) |
| Power | 120 VAC |
Product Description:
Revolutionize your digital print finishing with the Formax Atlas-TRIO15, a versatile powerhouse that seamlessly integrates slitting, cutting, and creasing into a single, efficient pass. This innovative machine is the answer to the ever-growing demand for high-quality, on-demand finishing in today's fast-paced digital print environments. From sleek business cards to eye-catching brochures and elegant booklet covers, the Atlas-TRIO15 handles it all with precision and speed, processing media up to 13" wide and 27.5" long, with weights ranging from 120 to 350gsm.
At the heart of this remarkable device is a user-friendly 4" touchscreen control panel, offering three intelligent modes to suit your workflow: Preset for common formats, Manual for quick adjustments, and Flex for ultimate customization. With the ability to store up to 150 custom jobs, you'll breeze through recurring projects with unparalleled efficiency. The Atlas-TRIO15's advanced features, including an upper-belt tri-suction feeding system, automatically elevating feed table, and double-feed detection, ensure consistent, high-quality output even at impressive speeds of up to 5,000 single-crease jobs per hour. Whether you're running a small print shop or a large-scale production facility, this multi-function marvel will become an indispensable asset, streamlining your workflow and elevating the quality of your finished products.
