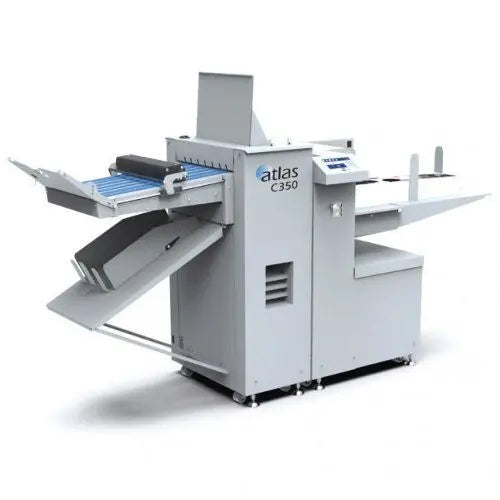

Formax Atlas C350 High-Speed Automatic Creaser/Folder
Formax Atlas C350 High-Speed Automatic Creaser/Folder - Atlas C350 - Creaser Only is backordered and will ship as soon as it is back in stock.
Formax Atlas C350 High-Speed Automatic Creaser/Folder
Spec Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Installation Manual: View PDF File
✓ Up to 6,000 sheets/hour (half fold)
✓ Up to 7,500 sheets/hour (single crease)
✓ 7" color touchscreen control panel
✓ Vacuum top-feeding system
✓ Two-in-one outfeed configuration
✓ Lifetime guaranteed creasing matrix
✓ Handles media up to 51" long
✓ Unlimited programmable jobs
✓ Quick-change creasing matrix kits
✓ Floating knife folding system
✓ In-line rotary perforation
✓ Optional cross-perforating blade kit
✓ Rugged metal construction
✓ Up to 30 creases per sheet
✓ Min. repeat crease distance: 0.004"
✓ Paper thickness: 75-400 gsm
✓ Max. loading capacity: 7.9" high stack
- High-speed automatic creaser/folder designed for digital print environments, preventing cracking in toner-based prints
- Utilizes a heavy-duty, lifetime guaranteed creasing matrix that compresses paper fibers instead of cutting them
- Features a patented floating knife folding system to minimize marking on digital printouts

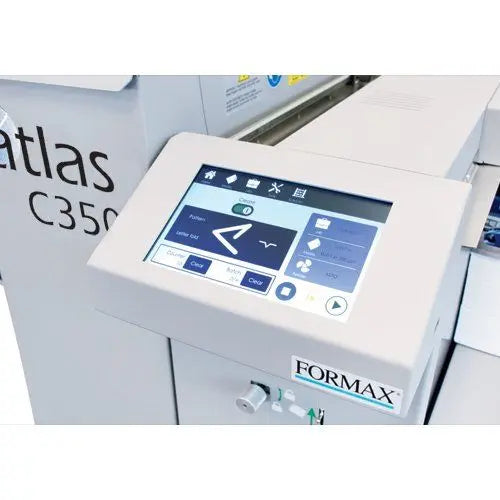

- Quick and easy setup using a 7" color touchscreen control panel with intuitive icons and layout
- Automatic calculation of crease locations based on sheet length, weight, and fold type
- Pre-programmed common creases and ability to save unlimited custom jobs
- Top-loading vacuum infeed system adjusts automatically to process media stacks up to 7.9" high
- Optical sensors control sheet separation by monitoring the float zone and making real-time adjustments

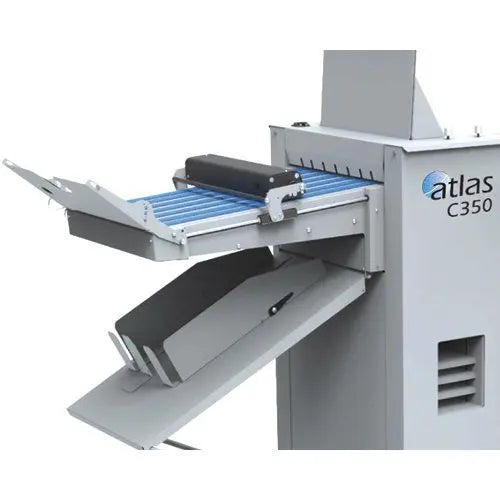

- Two-in-one outfeed configuration with automatic belt stacker for folded sheets and catch tray for flat sheets
- In-line rotary perforation kit included for creasing, perforating, and folding in a single pass
- Optional cross perforating blade kit available for creating brochures with tear-offs
- Can be used as a stand-alone creaser or perforator when folding is not required
- Rugged metal construction with a compact footprint, ideal for print shops with limited space
- Expands digital print finishing capabilities for professional, high-quality results
| Speed | Up to 6,000 sheets/hour, half fold* Up to 7,500 sheets/per hour, single crease |
| Sheet Size | Min: 8.3” x 3.7” (211 x 94mm) Max: 27.6” x 15.2” (51” long w/extension) (701 x 386mm, 1295mm w/extension) |
| Paper Thickness | Max: 0.0157” (400gsm) Min: 0.0035” (75gsm) |
| Creases per Sheet | Up to 30 |
| Min. Repeat Crease Distance | 0.004” (0.1mm) |
| Programmable Jobs | Unlimited |
| Max. Loading Capacity | Stack up to 7.9” H (200mm) |
| Outfeed | Belt conveyor stacker, catch tray |
| Dimensions | 84” L x 29” W x 55” H (118” L w/extension) (2134 x 737 x 1397mm, 2997mm w/ext.) |
| Weight | 689 lbs (312kg) |
| Power | 100-240VAC, 8-4A, 50/60 Hz NEMA 6-15 (220V), NEMA 5-15 (110V) |
Product Description:
In the world of digital printing, the Formax Atlas C350 High-Speed Automatic Creaser/Folder stands as a testament to precision and efficiency. This innovative machine addresses the common issue of cracking in toner-based prints, ensuring a flawless finish for your professional documents. By employing a heavy-duty creasing matrix that compresses paper fibers instead of cutting them, the C350 delivers crisp, clean folds without compromising the integrity of your prints. Its user-friendly 7" color touchscreen interface allows for quick setup and easy customization, making it an indispensable tool for print shops of all sizes.
The Atlas C350 isn't just about creasing; it's a versatile powerhouse that can handle a wide range of finishing tasks. With its ability to accommodate sheets up to 51" long and its high-capacity vacuum feed system, this machine is ready to tackle even the most demanding jobs. The two-in-one outfeed configuration, featuring both an automatic belt stacker and a catch tray, provides flexibility for various output requirements. Additionally, the in-line rotary perforation kit allows for creasing, perforating, and folding in a single pass, streamlining your workflow and saving valuable time. Whether you're producing brochures, menus, or complex marketing materials, the Atlas C350 delivers professional results with unprecedented speed and precision.
