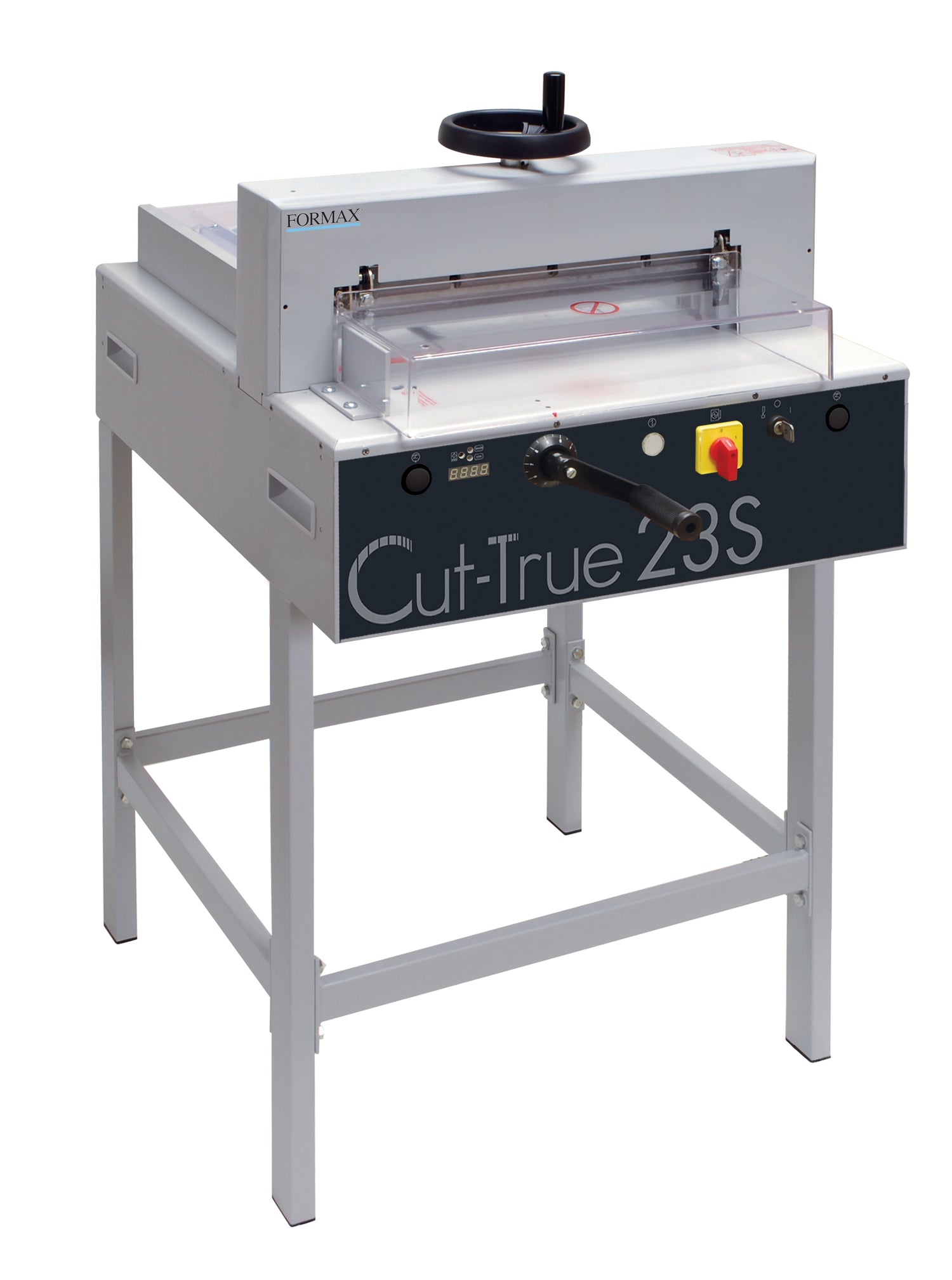

Formax Cut-True 23S Semi-Automatic Guillotine Paper Cutter
Spec Sheet: View PDF File
✓ 1.75" paper stack height
✓ Semi-automatic operation
✓ Electronically-controlled two-button system
✓ LED Laser cut line
✓ Hardened steel blade
✓ Spindle-guided back gauge
✓ LED digital readout
✓ Geared clamping system
✓ Automatic blade return
✓ Calibrated scales (inches and metric)
✓ Multiple safety features
✓ Easy blade change mechanism
✓ Wooden paper push for alignment
✓ All-metal stand included
✓ 110V power supply
✓ CE approved
- Semi-automatic electric paper cutter with precision cutting for stacks up to 1.75" high and 16.9" wide, ideal for print shops and in-plant finishing operations

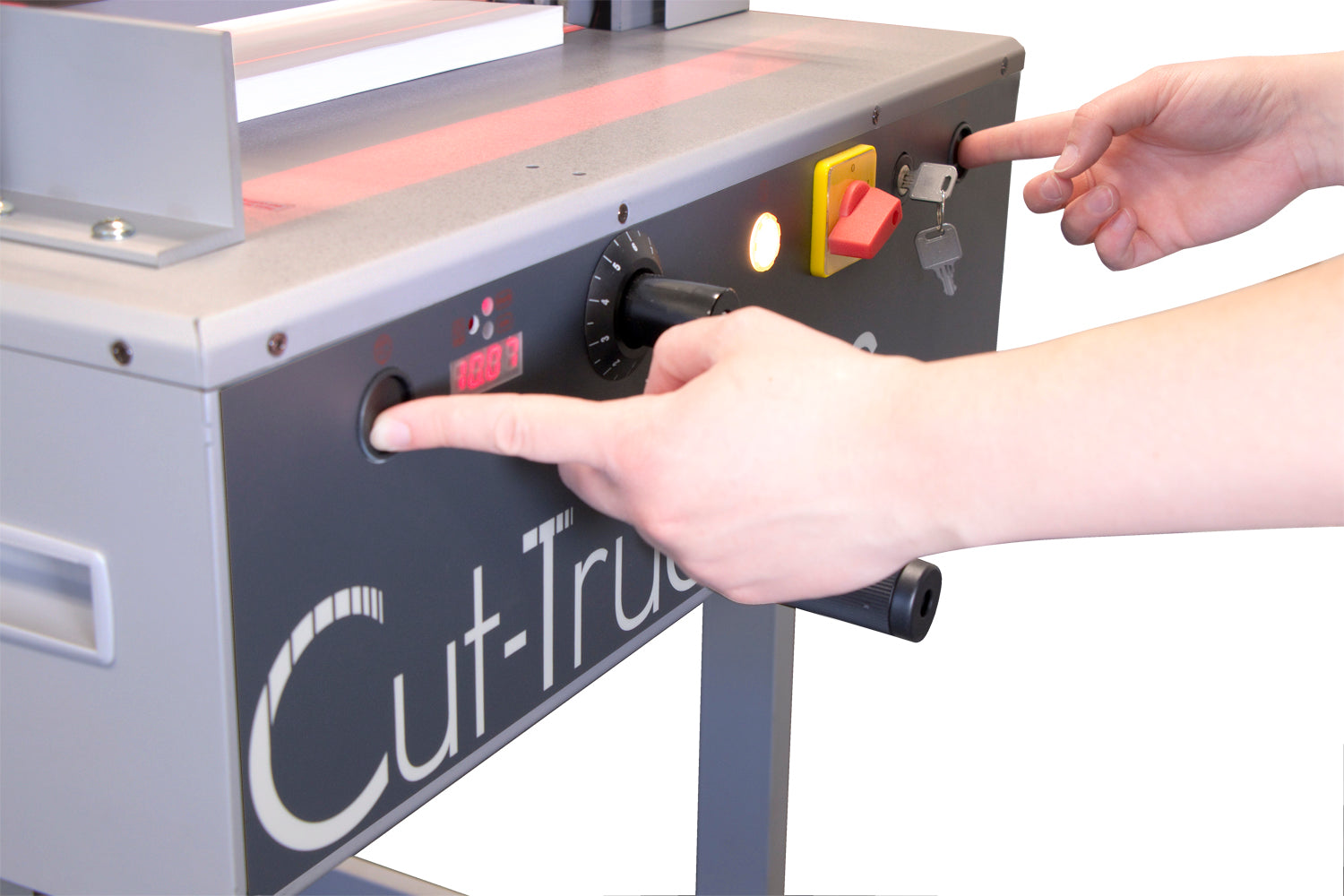

- Electronically-controlled two-button operation for effortless cutting, featuring a high-quality hardened steel Guillotine blade

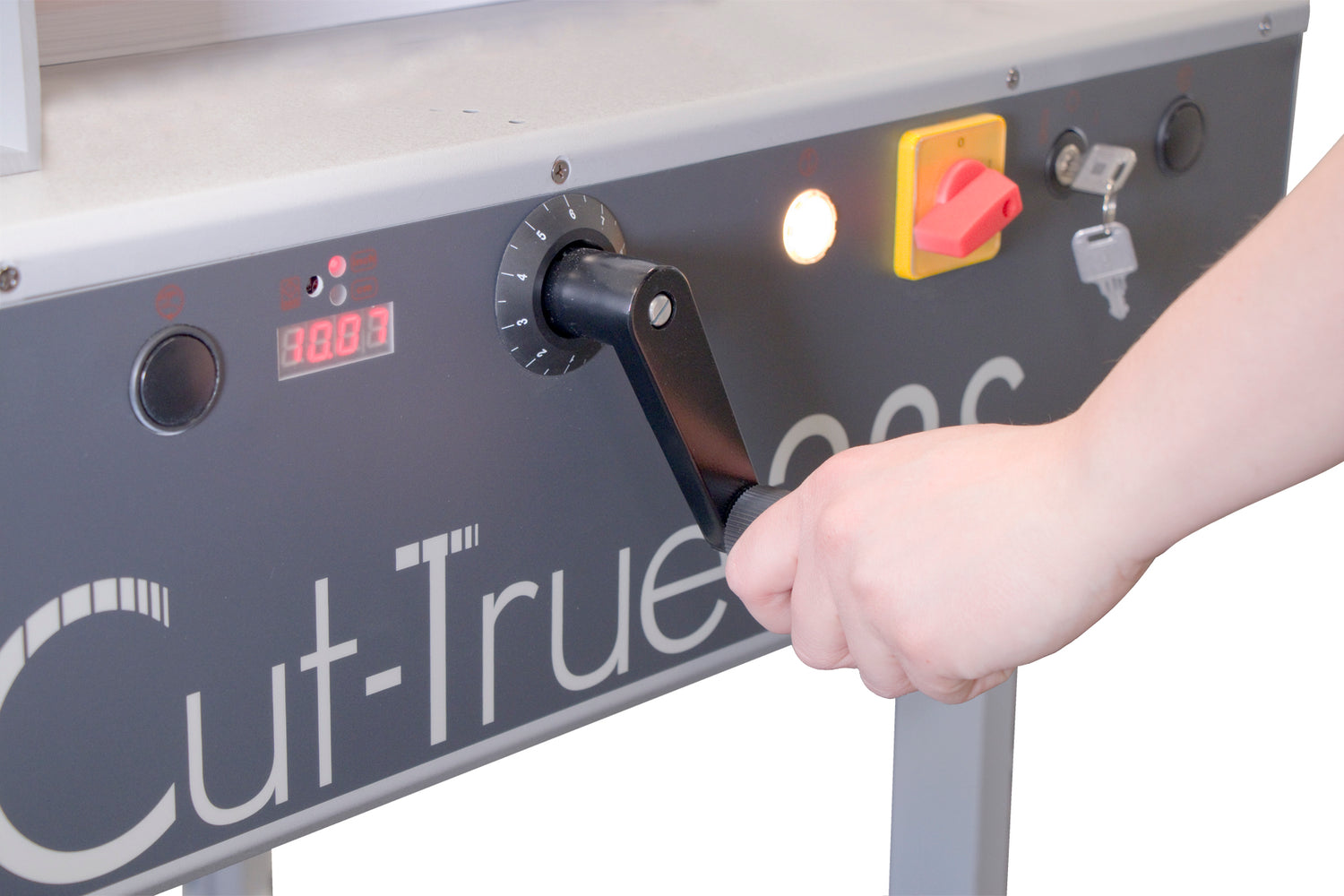

- Spindle-guided back gauge with LED digital readout and calibrated scales for accurate measurements and fine adjustments

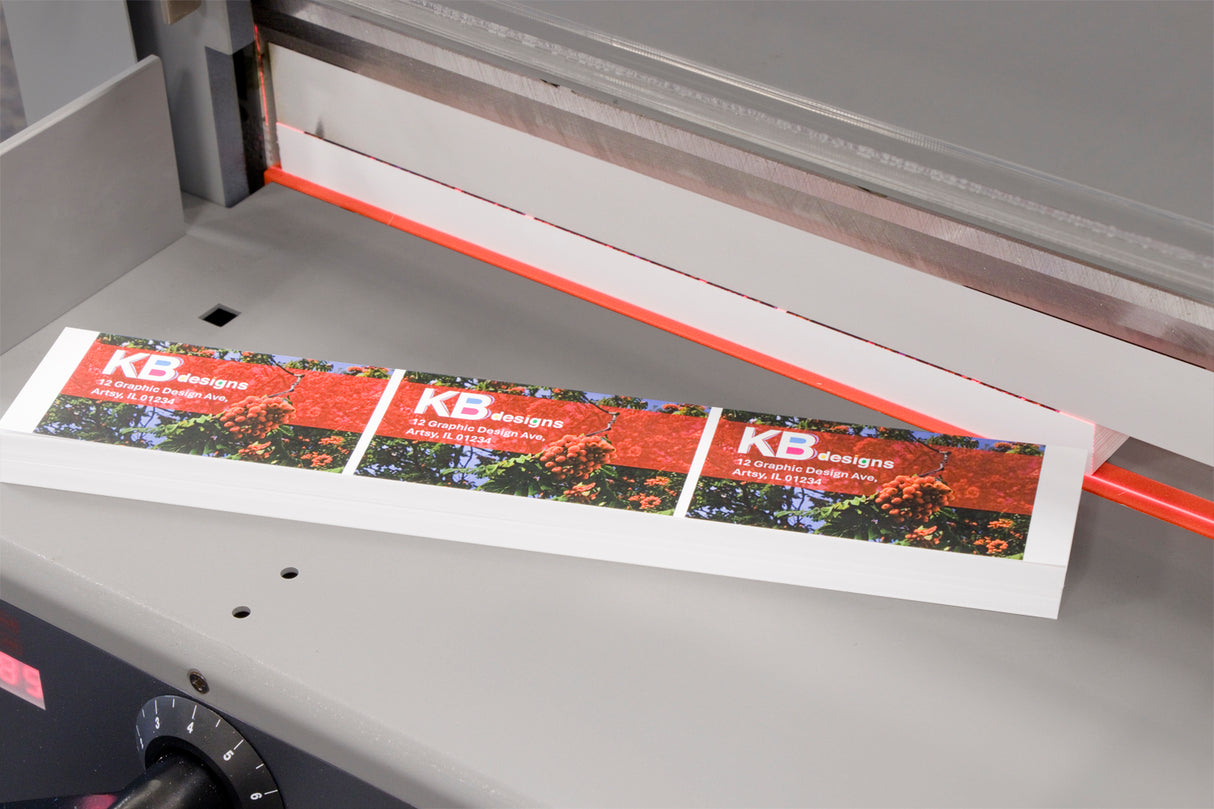

- LED Laser Line for pinpoint cutting accuracy, allowing operators to see exactly where the blade will cut

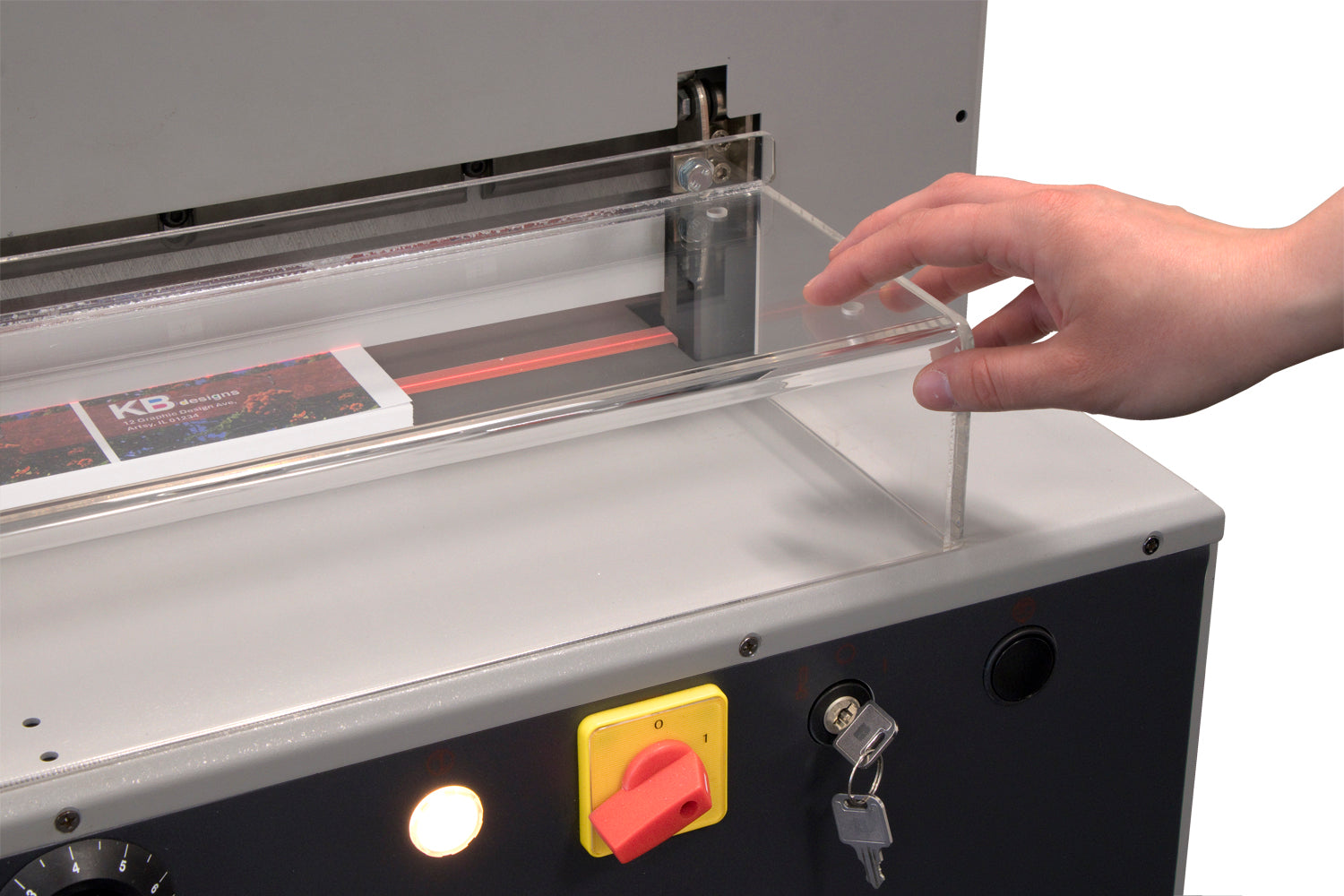

- Comprehensive safety features including electronically-controlled front safety cover, transparent rear cover, safety lock with key, and blade lock
- Automatic blade return from any position and easy-to-use blade change safety tool for enhanced convenience and safety
- Geared clamping system to securely hold paper stacks in place during cutting
- Wooden paper push for safe alignment of materials
- Calibrated scale with both inch and metric measurements, and clearly marked common paper sizes for quick reference
- Solid steel blade carrier and adjustable blade guides for consistent, precise cuts
- External blade depth adjustment for easy maintenance and customization
- Included all-metal stand provides a stable work surface for optimal performance
- Versatile cutting solution for creating professional-quality brochures, invitations, and other printed materials
| Cutting Action | Dual-button electric |
| Maximum Cutting Width | 16.9” (430mm) |
| Maximum Paper Stack Height | 1.75” (45mm) |
| LED / Laser Cut Line | Yes |
| Clamp Style | Spindle-guided clamping wheel |
| Back Gauge Adjustment | Manual crank |
| Back Gauge Reading | Digital readout, in both inches and metric |
| Paper Clamp | Spindle |
| Blade Change Safety Tool | Included |
| Dimensions | 46.75” H x 24.75” W x 33” D (1187 H x 629 W x 838 D mm) |
| Weight | 198.6 lbs. (90kg) |
| Power Supply | 110V |
| Safety Certifications | CE approved, UL pending |
Product Description:
The Cut-True 23S Semi-Automatic Electric Cutter is designed for precision cutting of paper stacks up to 16.9 inches wide, making it a dependable tool for professional finishing environments. With electronically-controlled two-button operation, it minimizes operator effort while ensuring controlled, consistent performance. Its hardened-steel guillotine blade, combined with a geared clamp to secure stacks up to 1.77 inches high, allows for clean and accurate results every time.
Accuracy is further enhanced with a spindle-guided back gauge, LED digital display, calibrated scales, and an LED laser line for clear cutting guidance. Safety is built into every step with features such as a front safety cover, safety lock with key, blade lock, and easy front access for blade adjustments. Supplied with a rugged metal stand or optional tabletop feet, the 23S offers versatility and stability, making it well-suited for producing brochures, invitations, and other professional materials in print shops or in-house finishing operations.
