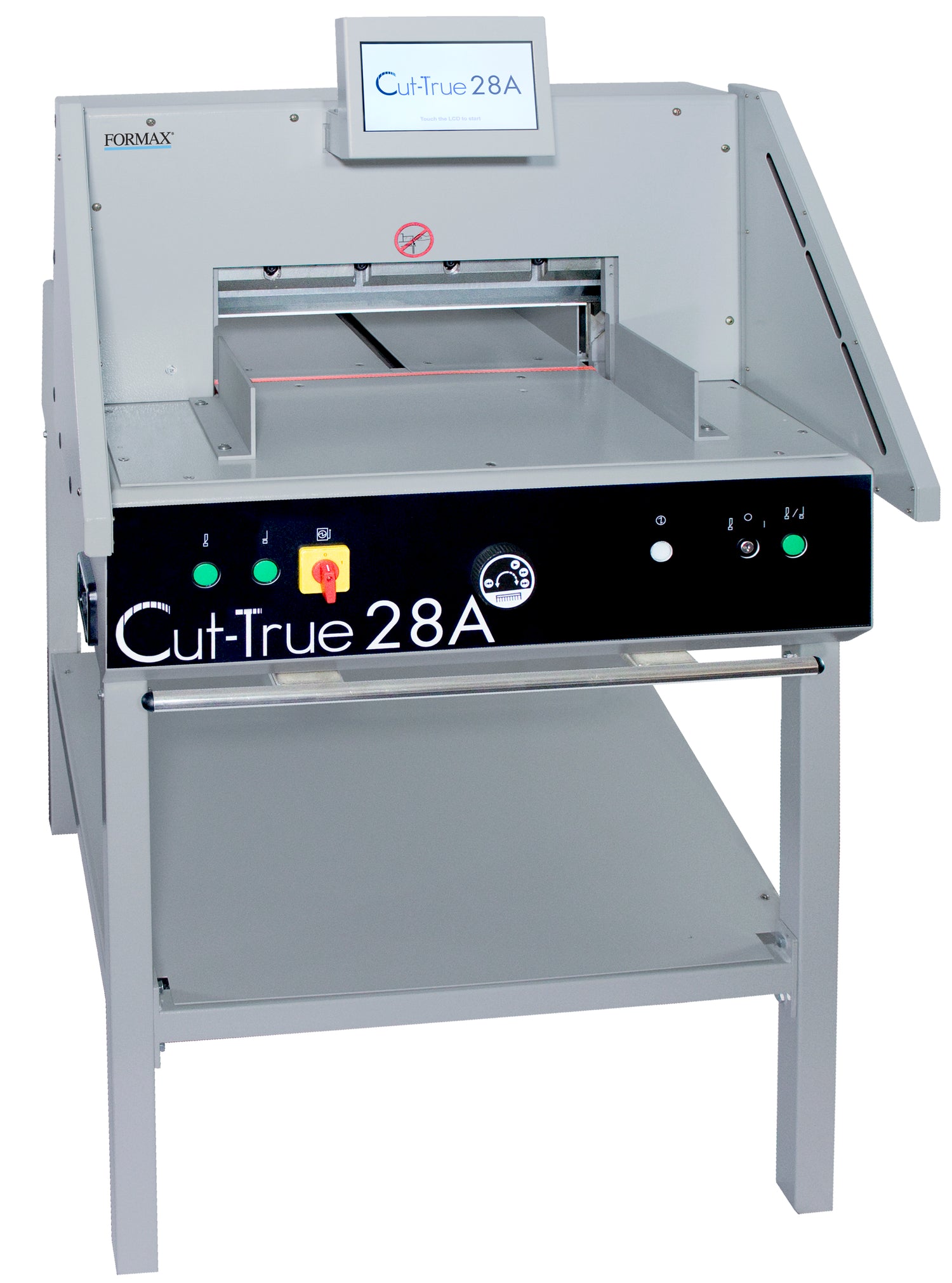

Formax Cut-True 28A Automatic Programmable Paper Cutter
Spec Sheet: View PDF File
User Manual: View PDF File
✓ 18.9 cutting width
✓ 3.15" maximum stack height

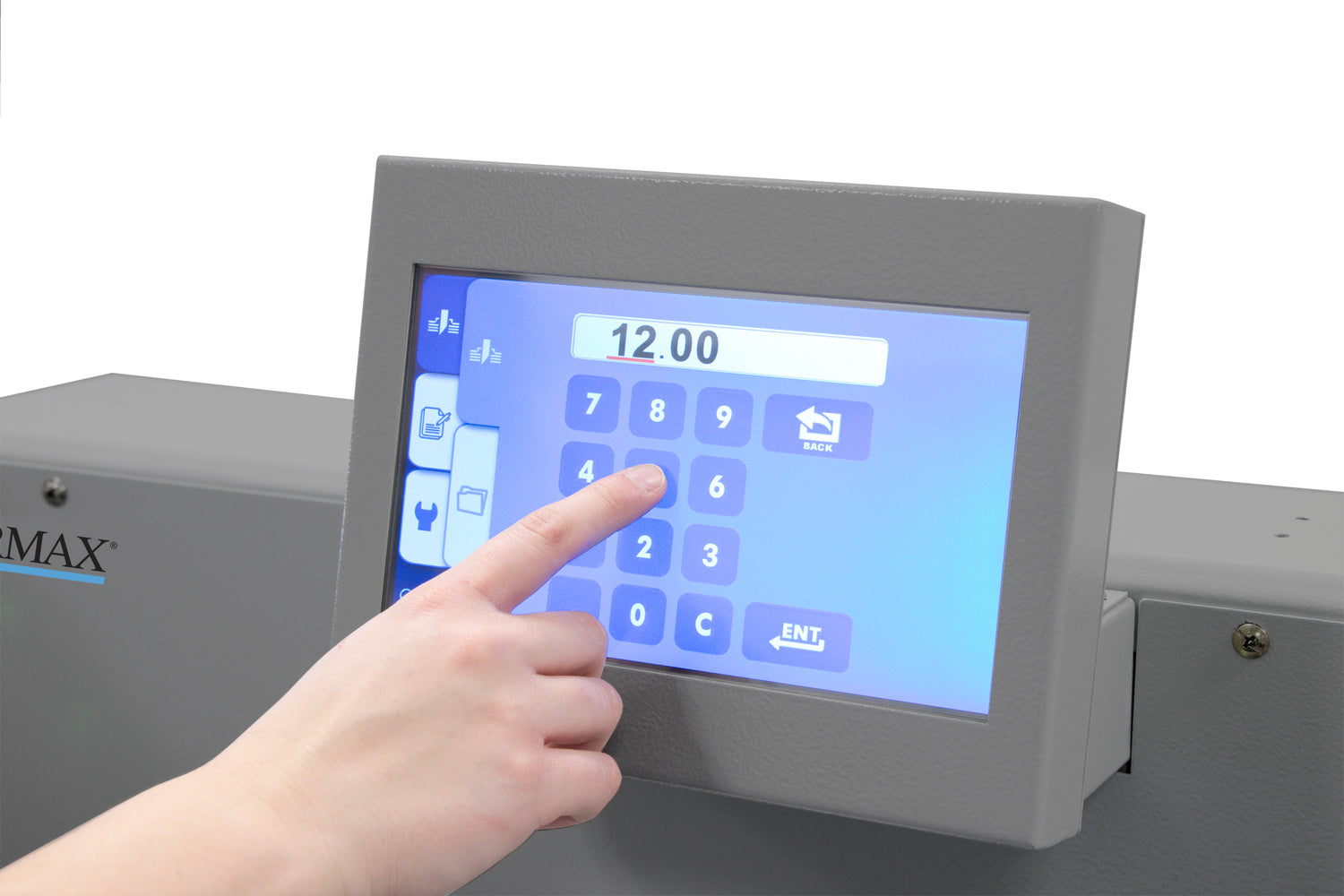

✓ Full-color touchscreen control panel
✓ Programmable for 99 jobs/30 cuts

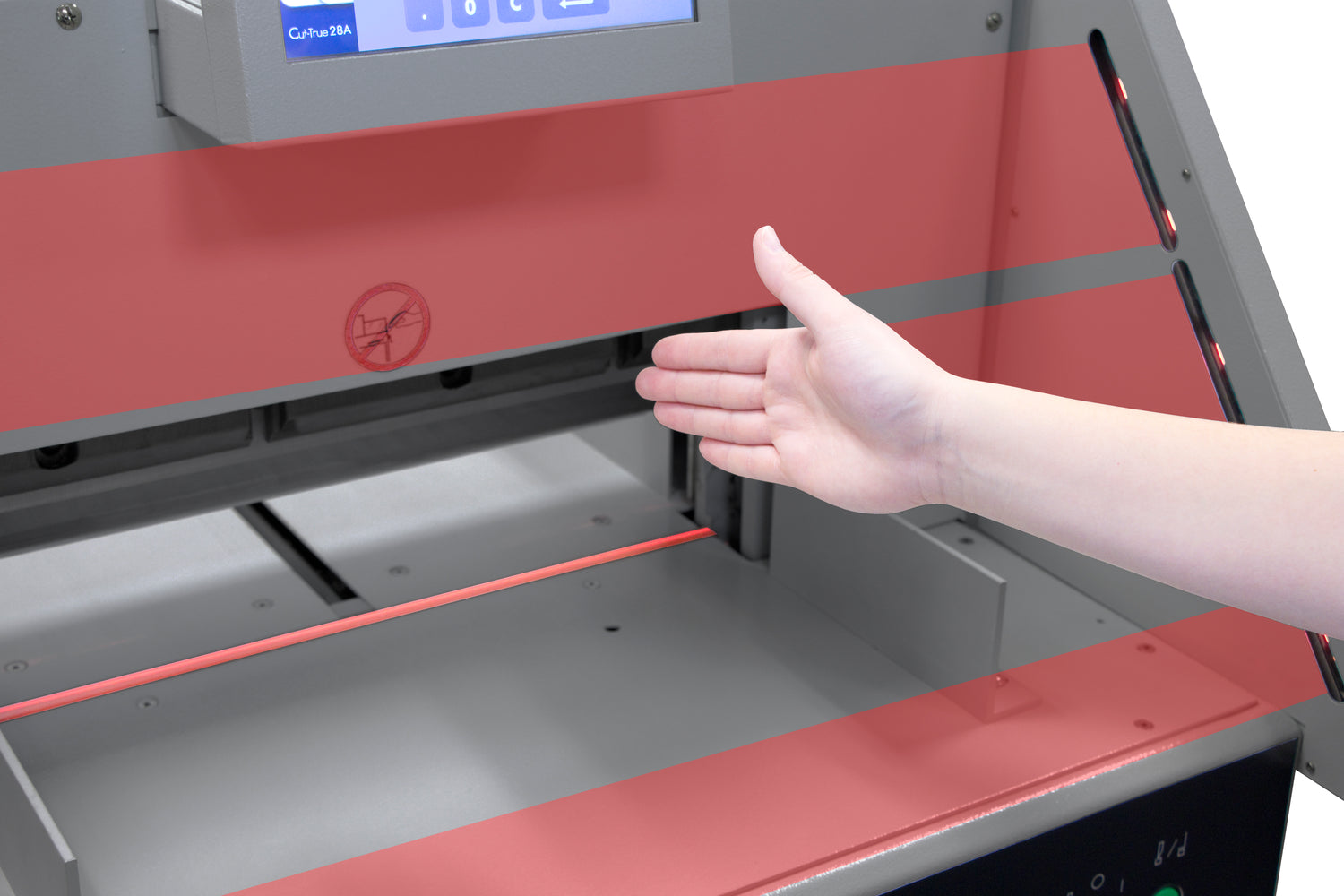

✓ Infrared safety curtain

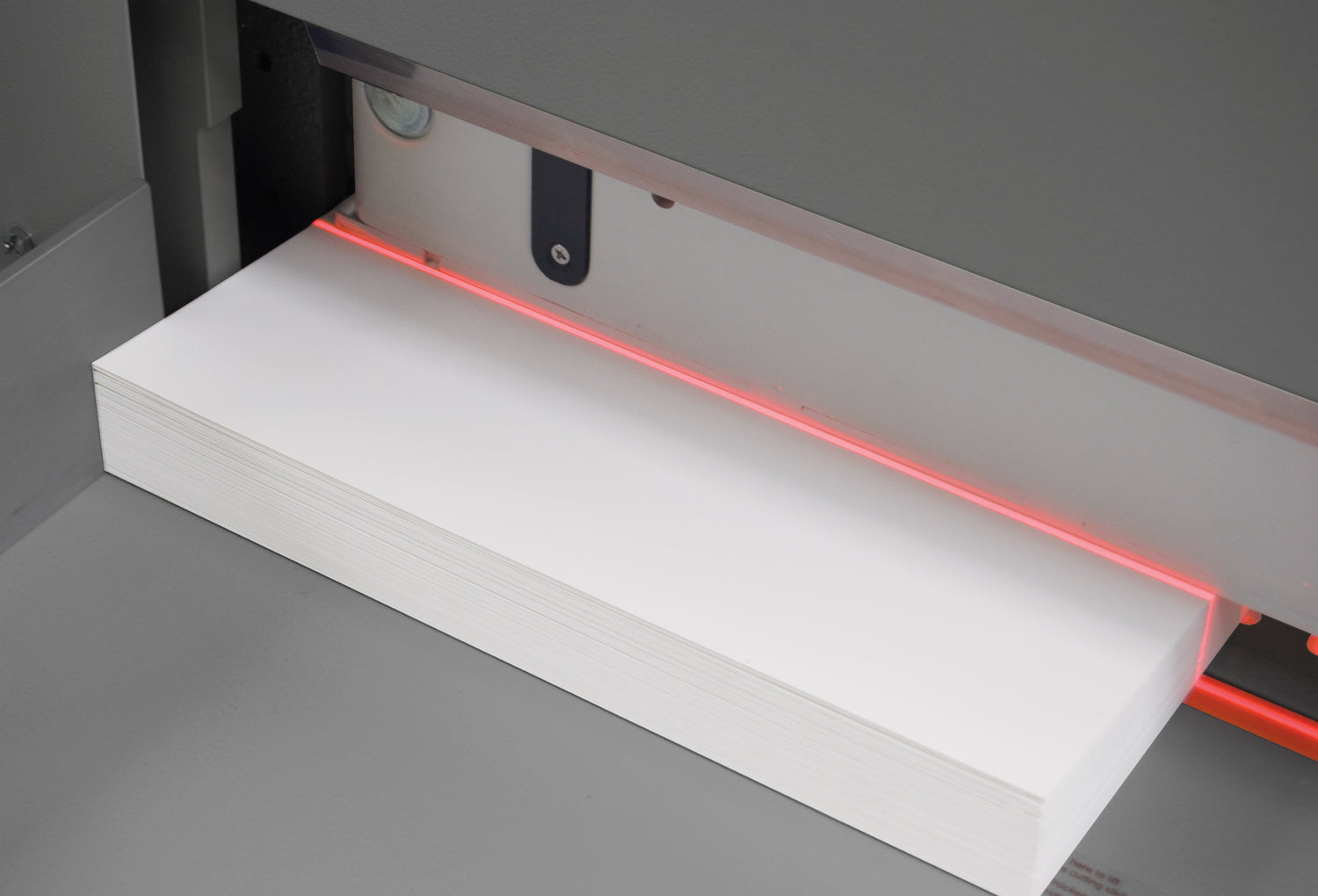

✓ LED cutting line for accuracy

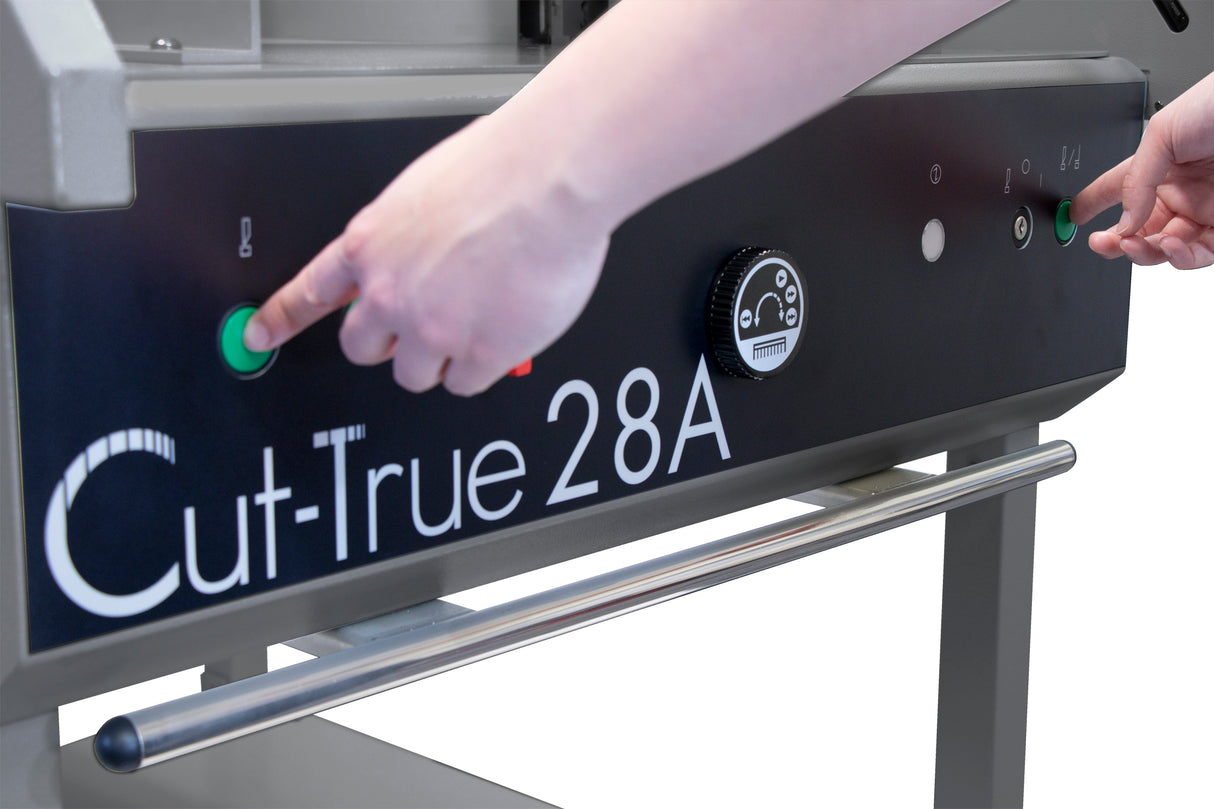

✓ Electronically-controlled two-hand operation
✓ High-speed Hardened steel blade
✓ Anti-friction surface
✓ Automatic geared clamping system
✓ Blade change safety tool included
✓ Multiple safety features
✓ Ideal for print shops and in-plant finishing
- Cuts paper stacks up to 3.15 inches high and 18.9 inches wide
- Automatic operation with touchscreen control panel and programmable settings
- Up to 99 programmable jobs with 30 cuts each for repeat accuracy
- Electronically controlled two-hand operation with infrared safety curtain

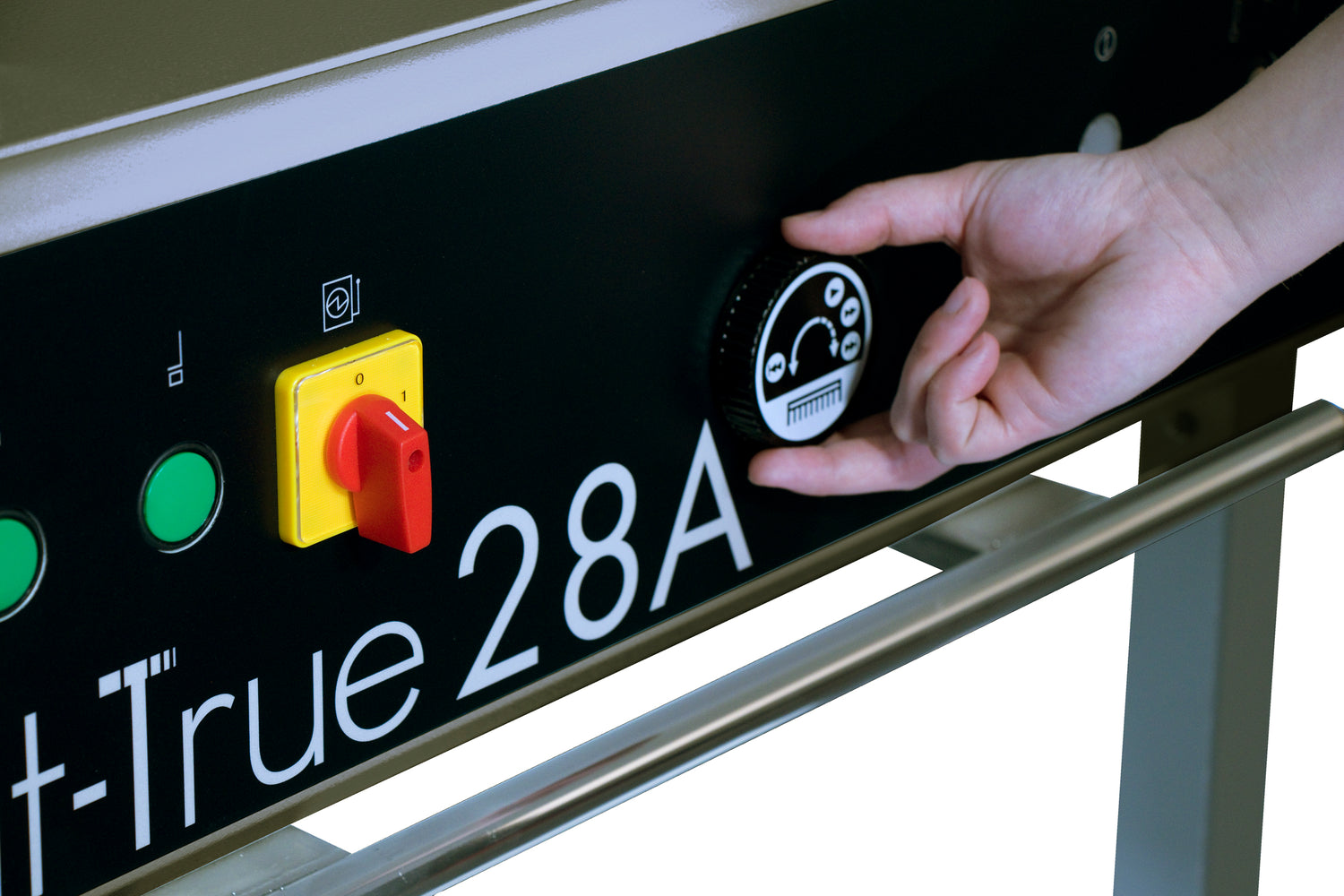

- Electronic fine-tune back gauge adjustment with automatic geared clamping system
- High-speed hardened steel blade with solid steel blade carrier and automatic return
- LED cutting line for precise alignment and wooden paper push for safe handling
- Comprehensive safety features including blade lock, key lock, blade change safety tool, and all-metal stand with storage shelf
| Cutting Action | Dual-button electric |
| Maximum Cutting Width | 18.9” (480mm) |
| Maximum Paper Stack Height | 3.15” (80mm) |
| Length Behind Blade | 18.9” (480mm) | Narrow Cut (Inches) | 1.37 (35mm) 0.98 |
| Clamp Style | Automatic, electronically adjusted |
| Back Gauge Adjustment | Fully programmable using screen |
| Blade Change Safety Tool | Included |
| Dimensions | 60” H x 36” W x 40” D (1520 x 920 x 1010mm) |
| Table Size Infront of Blade | 32” W x 37” D (811 x 941 mm) |
| Weight | 575 lbs (260kg) |
| Power Supply | 110V, 60Hz, 20A dedicated line, NEMA 6-20P |
Product Description:
The Formax Cut-True 28A Electric Guillotine Paper Cutter delivers precise cutting for paper stacks up to 18.9 inches wide, making it a reliable solution for professional print finishing. Its intuitive touchscreen control panel, automatically adjusting back gauge, and the ability to program up to 99 jobs with 30 cuts each ensure both efficiency and repeatable accuracy. An infrared light beam safety curtain further enhances operation by stopping the cutter if the light field is interrupted, offering convenience along with protection.
Operation is streamlined with touchscreen programming, an electronic fine-adjustment knob, and a bright LED cutting line for clear visual guidance. The hardened steel blade is engaged through electronically controlled two-hand operation, guaranteeing consistent results while maintaining operator safety. Additional safeguards include a wooden paper push, key lock, blade lock, automatic blade return, and a built-in blade change safety tool. With its robust performance and user-focused design, the 28A is an excellent choice for cutting large sheets into precise formats such as brochures, invitations, and other professional materials.
