Formax FD 8806CC Cross-Cut Industrial Shredders
Spec Sheet: View PDF File
User Manual: View PDF File
✓ High-volume industrial shredders
✓ Cross-cut (FD 8806CC) and strip-cut (FD 8806SC) options
✓ Shreds up to 90 sheets (CC) or 110 sheets (SC) per pass
✓ Continuous-duty motor for non-stop operation
✓ LED control panel with load indicator
✓ Auto Start/Stop, Auto Reverse, and Auto Cleaning
✓ EvenFlow™ Automatic Oiling System
✓ Heat-treated solid-steel cutting blades
✓ Shreds files, computer forms, cardboard, CDs, and magnetic discs
✓ Large safety stop bar and key lock
✓ Front waste bin access for space-saving placement
✓ Door safety sensor and waste bin full sensor
✓ Manual mode for small paper or films
✓ Self-diagnosis system
✓ Thermal overload protection and safety circuit breaker
✓ 16" feed opening
✓ 36-gallon waste bin capacity
✓ 3-Phase 220V, 60Hz, 20A power supply
- High-capacity industrial shredders designed for centralized, high-volume shredding with fully-automated features and rugged, industrial strength.

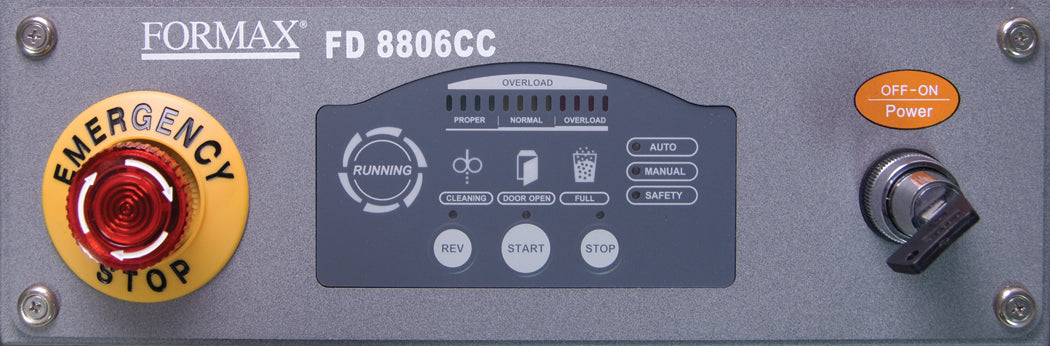

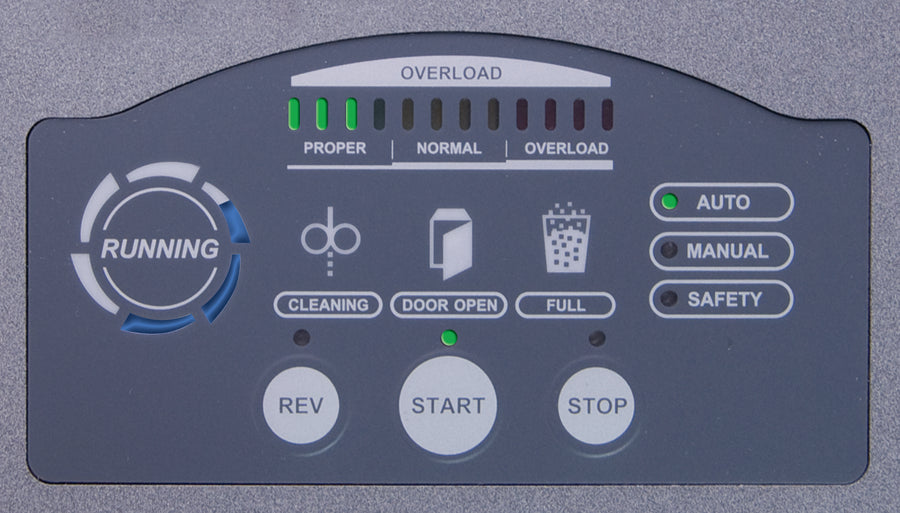

- Advanced LED control panel with load indicator for immediate feedback, maximizing efficiency and minimizing jams.
- Continuous-duty motor, all-metal gearing, and heat-treated solid steel cutting blades capable of shredding up to 90 sheets (CC) or 110 sheets (SC) in one pass.
- Versatile shredding capabilities, including entire files, stacks of computer forms, cardboard, CDs, and magnetic discs.
- User-friendly features such as Auto Start/Stop, Auto Reverse, and Auto Cleaning for enhanced operational efficiency.

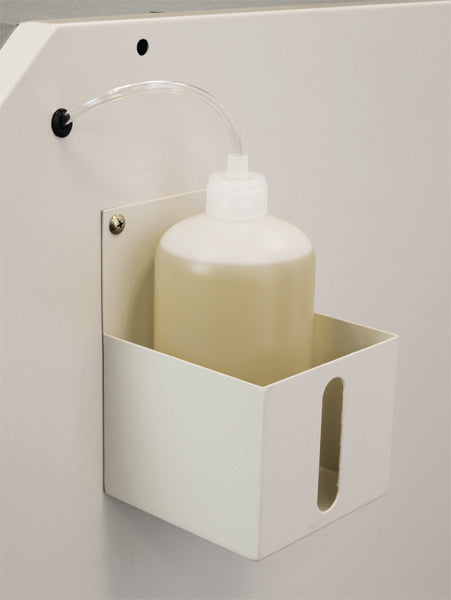

- EvenFlow™ Automatic Oiling System for lubricating cutting blades and maintaining peak performance.
- Belt-Feed Industrial Shredding System designed to handle a wide range of materials.

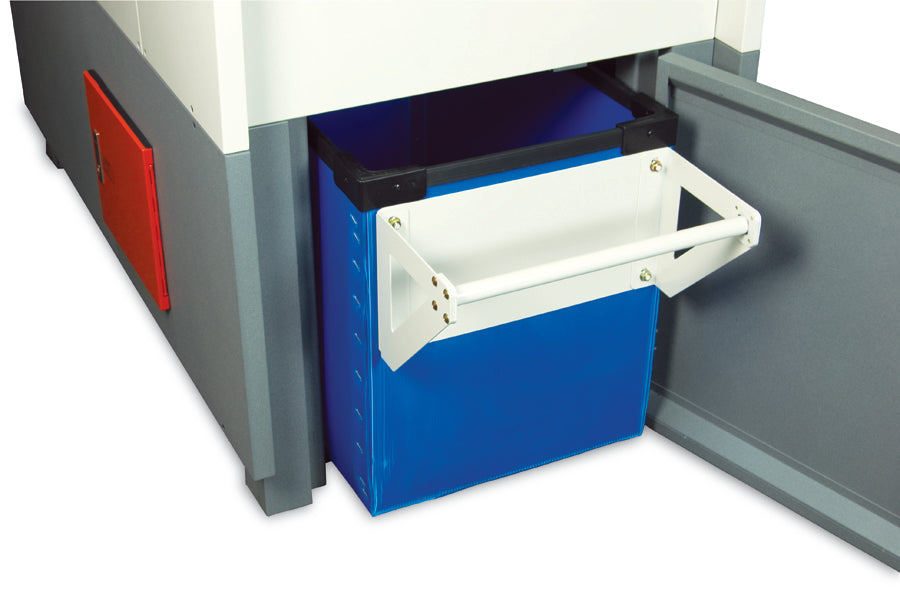

- Front waste bin access allows placement against walls for space-saving convenience.
- Multiple safety features, including a large safety stop bar, door safety sensor, and key lock system.
- Self-Diagnosis System provides operational data with an optional diagnostic reader.
- Thermal Overload Protection and Safety Circuit Breaker ensure safe and reliable operation.
- Two operational modes: Auto Start/Stop with optical sensor and Manual mode for continuous operation.
- Waste Bin Full Sensor automatically stops the motor when the bin reaches capacity.
| Cutting Style | Cross-Cut |
| Shred Size | 1/4” x 1.57” 1/2” |
| Security Level | P-3 |
| Sheet Capacity | Up to 90 |
| Speed | Up to 43 fpm |

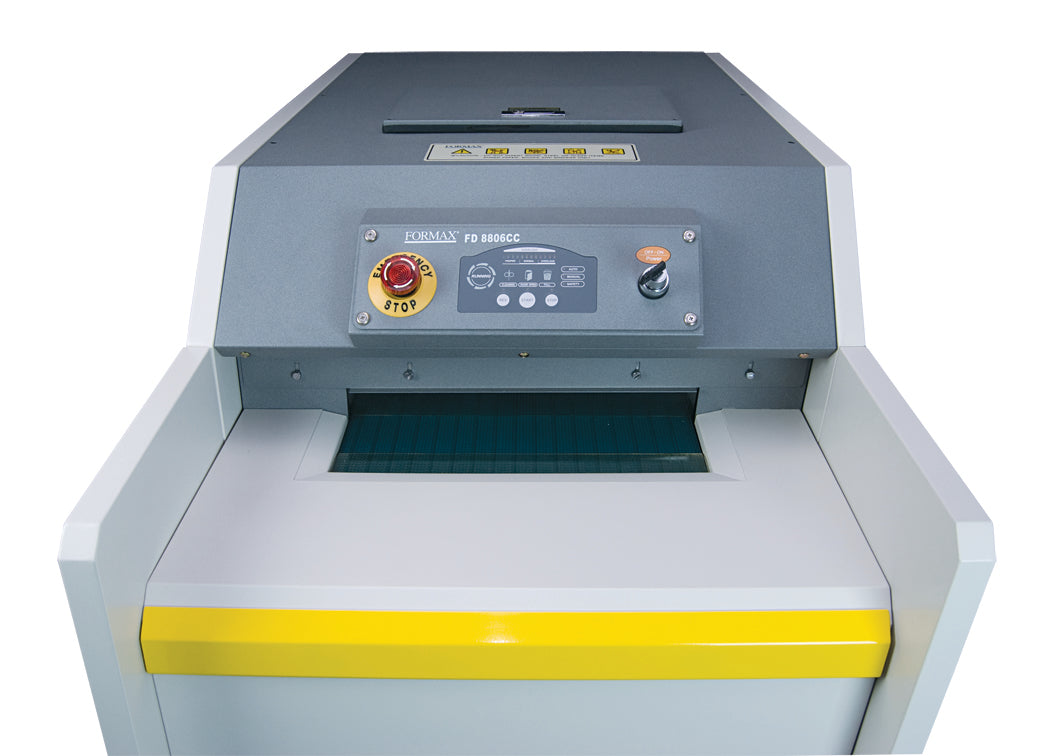

| Feed Opening | 16" |
| Dimensions | 28.3” W x 52.3” L x 48.5” H |
| Bin Capacity | 36 gallons |
| Weight | 1008 lbs |
| Power Supply | 3-Phase 220V, 60Hz, NEMA L15-20P plug included, A L15-20R receptacle required |
Product Description:
Safeguard your sensitive information with unparalleled efficiency using the Formax FD 8806CC Cross-Cut Industrial Shredder. This high-capacity powerhouse is engineered for centralized, high-volume shredding needs, effortlessly destroying up to 90 sheets per pass. Its advanced features, including an intuitive LED control panel and EvenFlow™ Automatic Oiling System, ensure smooth operation and minimal maintenance, allowing you to focus on your core business tasks.
The FD 8806CC doesn't just shred paper; it obliterates entire files, computer forms, CDs, and even magnetic disks with its heat-treated solid steel cutting blades. Its conveyor-fed system and continuous-duty motor make quick work of large shredding jobs, while smart features like Auto Start/Stop and Auto Reverse prevent jams and optimize performance. With its focus on safety, including a large stop bar and key lock system, this industrial-grade shredder offers peace of mind for both operators and organizations committed to data security.
