Formax 6406 Series Paper Folder & Inserters
Formax 6406 Series Paper Folder & Inserters - FD 6406-Standard 2 Inserter - Two Station with 2 Standard Feeders is backordered and will ship as soon as it is back in stock.
Formax 6406 Series Paper Folder & Inserters
Spec Sheet: View PDF File
User Manual: View PDF File
✓ High-capacity document feeder (725 sheets)
✓ 7" color touchscreen control panel
✓ AutoSet™ one-touch setup
✓ 50 programmable jobs
✓ Vertical output stacker (500 envelopes)
✓ Top-loading envelope hopper (325 envelopes)
✓ Folds up to 10 sheets (half fold)
✓ Folds up to 8 sheets (tri-fold)
✓ Cascade Mode for continuous operation
✓ Double document detection
✓ Automatic divert station
✓ Energy-saving auto standby mode
✓ Optional CIS Scanner for OMR, Barcodes, QR codes
✓ Various folding options (C, Z, half, double parallel)
✓ Daily mail mode
✓ Multi-feeding capability
✓ Eco-friendly design
- Versatile paper folder and inserter with 2 to 6 station configurations for maximum flexibility

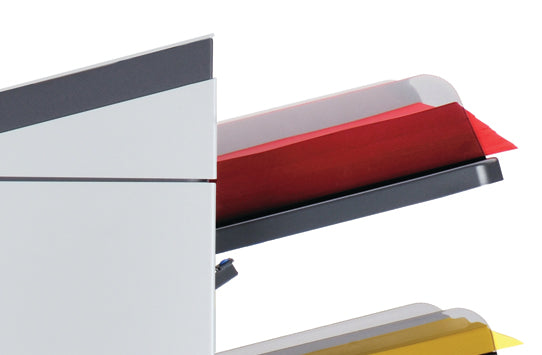

- High-capacity document feeder holds up to 725 sheets, with options for production feeders and special trays

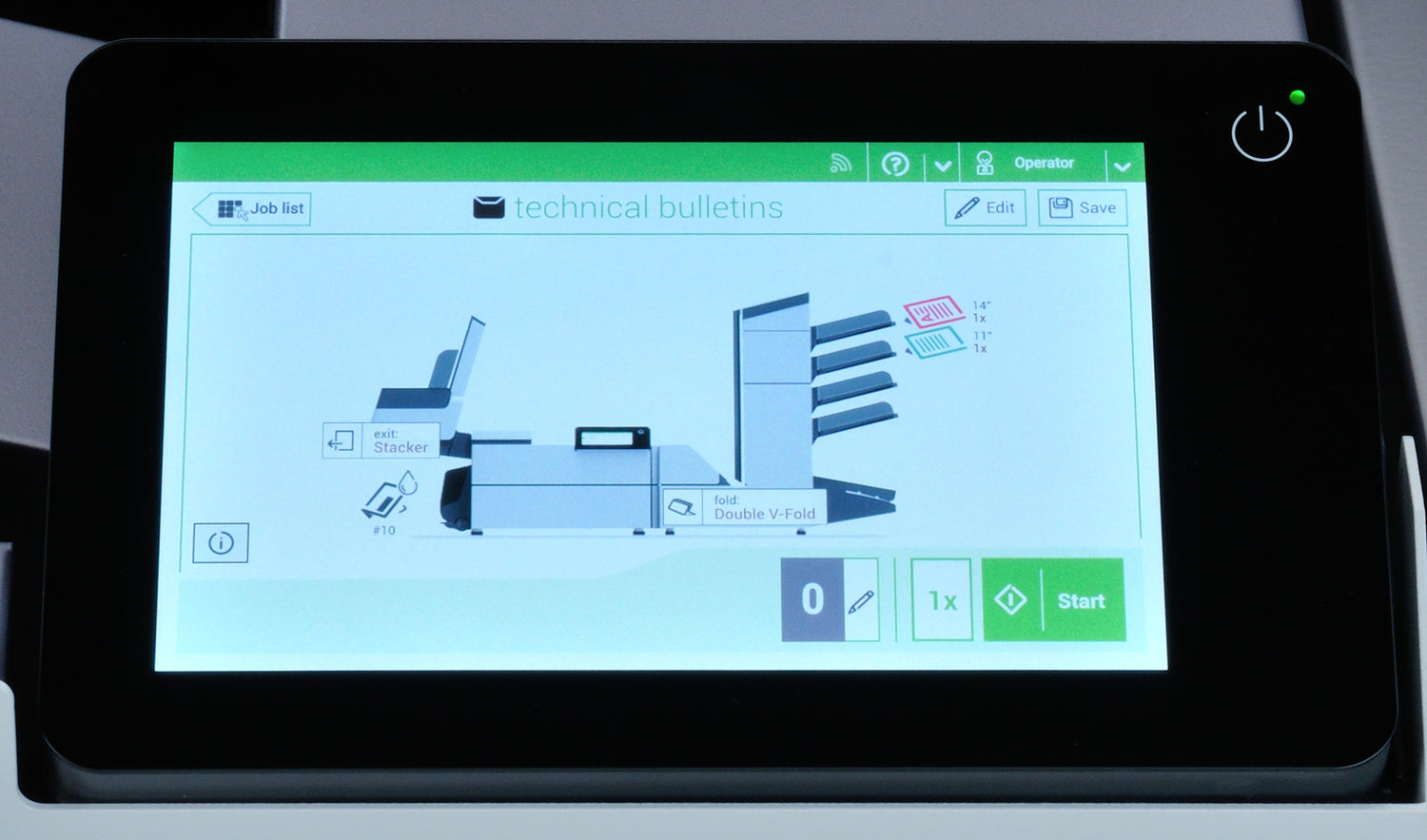

- User-friendly 7" color touchscreen control panel with graphics-based display for easy operation
- AutoSet feature automatically adjusts settings and can store up to 50 programmed jobs for quick recall
- Powerful folding capacity: up to 10 sheets (half fold) or 8 sheets (tri-fold) at once
- Cascade Mode links feeders for continuous operation, switching to the next feeder when one empties
- Double document detectors ensure accuracy and prevent feeding errors
- Automatic divert station for documents requiring inspection
- Energy-saving auto standby mode activates after 1 hour of idle time
- Optional CIS Scanner reads OMR, 1D and 2D Barcodes, QR codes, and OCR for automated multi-page document insertion

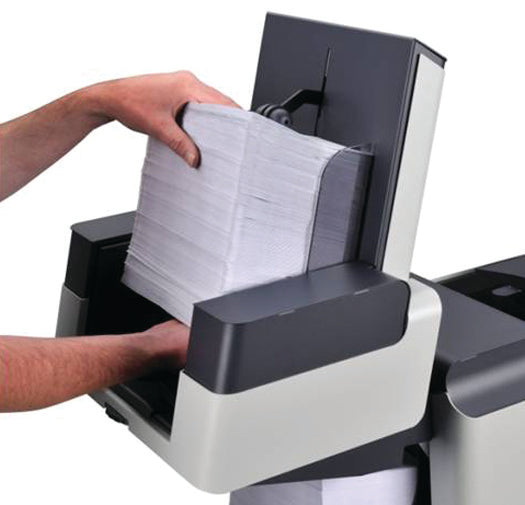

- Vertical output stacker holds up to 500 filled envelopes
- Top-loading envelope hopper with 325-envelope capacity, refillable on-the-fly
- Handles various folding types: C, Z, half, double parallel, and no fold
- Daily mail mode for processing variable daily mail

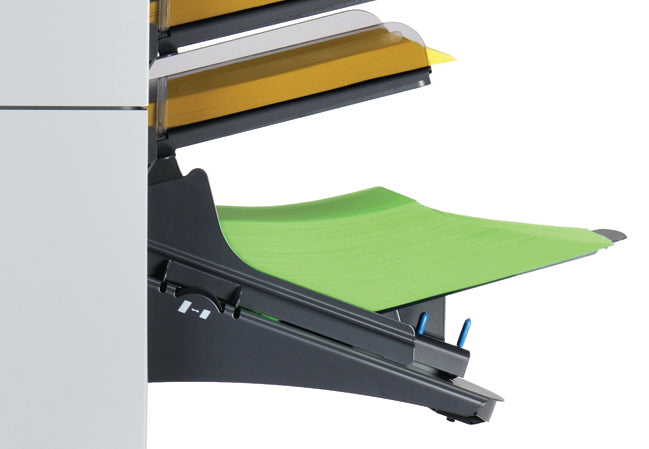

- Additional options include production feeders, thin booklet feeder, and short feed trays for small inserts
| Speed Up | 4,000 pieces per hour |
| Duty Cycle | Up to 60,000 pieces per month |
| Feeder Capacity | Up to 325 sheets, per feeder |
| Envelope Hopper | Up to 325 envelopes, top-loading |
| Vertical Output Stacker | Up to 500 filled envelopes |
| Sheet Size* | 3.5”- 14” H x 5” - 9” W (89 x 356 x 229mm) |
| Programmable Jobs | Up to 50 |
| Envelope Size* | 6.3” - 9.7” L x 3.5” - 6.3” W (160 - 246 x 89 - 160mm) |
| Dimensions (4-station) | 65” L x 32” H x 16.5” D (165 x 81 x 42cm) |
| Weight (4-station) | Approx. 242 lbs (110kg) |
| Power | 100V AC 50/60Hz |
| Safety Certifications | UL, CE, approved |
Product Description:

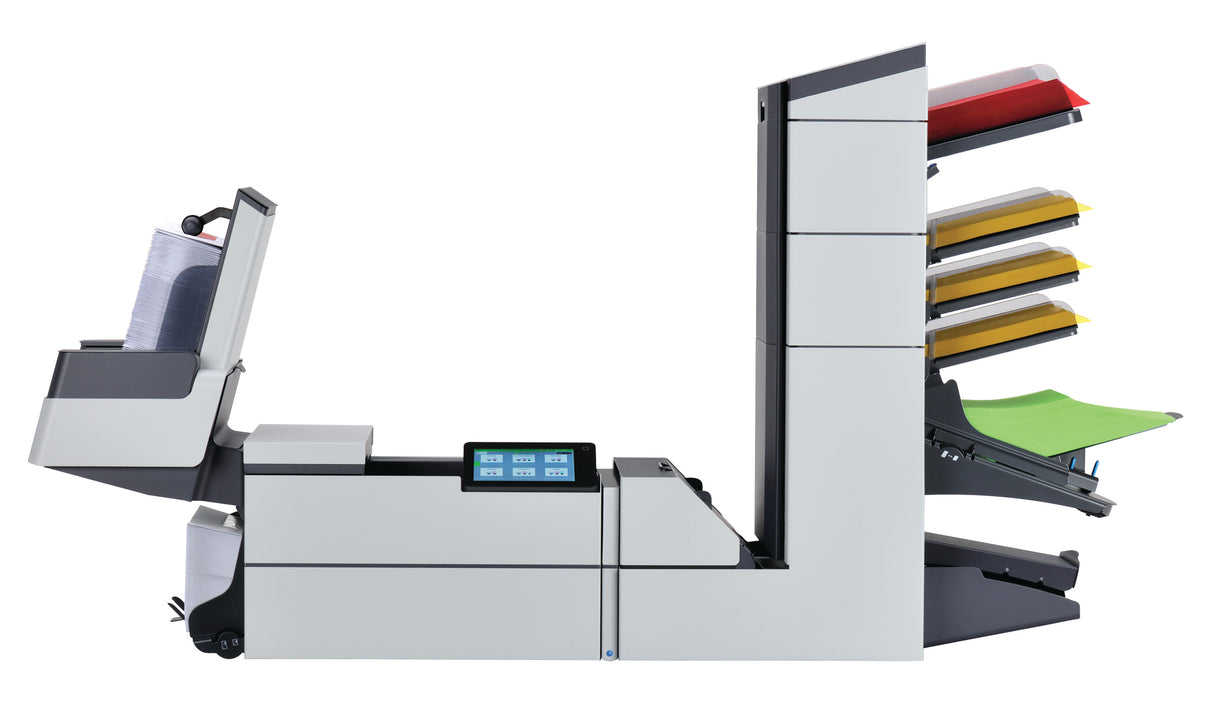

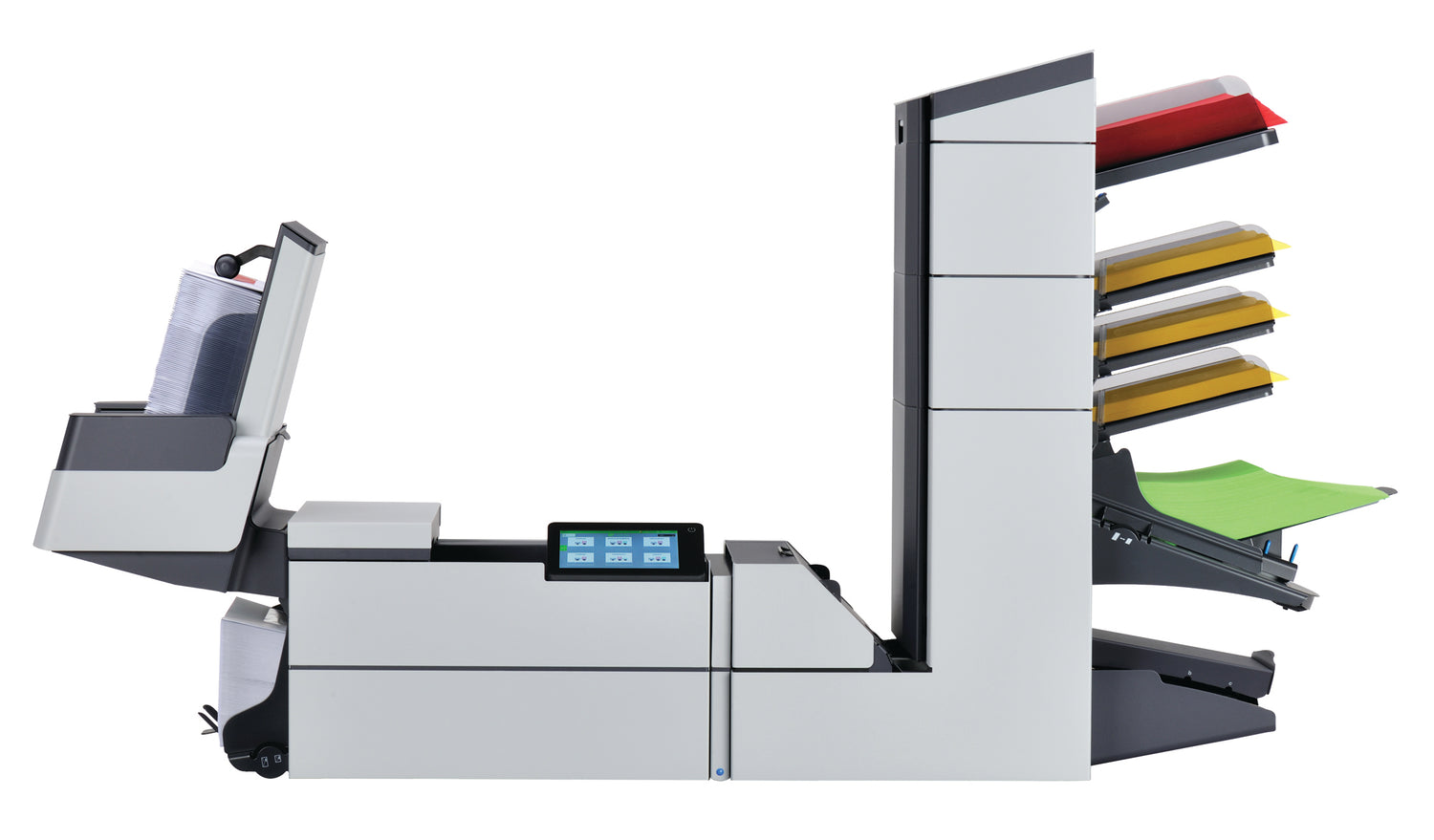

Streamline your mailing operations with the Formax 6406 Series Paper Folder & Inserter, a versatile powerhouse designed to handle diverse document processing needs. This modular system adapts to your evolving requirements, offering configurations from 2 to 6 stations and accommodating various input options. Whether you're managing high-volume mailings or intricate multi-page documents, the 6406 Series rises to the challenge with its robust folding capacity and intelligent features.
Experience unparalleled efficiency with the intuitive 7" color touchscreen, AutoSet™ one-touch setup, and the ability to store up to 50 programmed jobs for quick recall. The high-capacity vertical output stacker and top-loading envelope hopper minimize interruptions, while the Cascade Mode ensures continuous operation by seamlessly switching between feeders. Advanced security features, including double document detection and a divert station for inspection, safeguard the integrity of your mailings. For businesses seeking to automate complex inserting tasks, the optional CIS Scanner reads various codes anywhere on the page, eliminating manual collation and enhancing accuracy.
