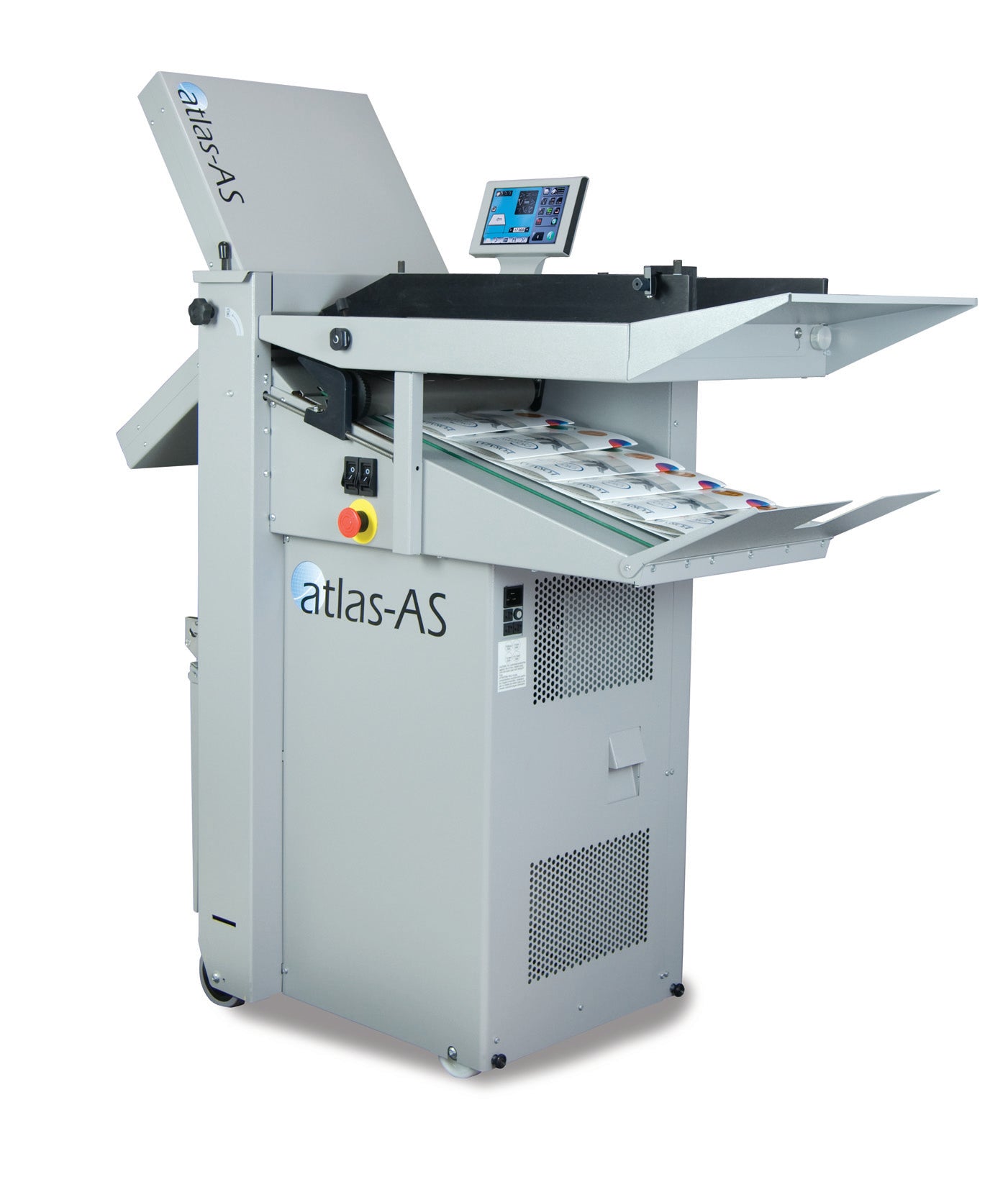

Formax Atlas-AS Air-Feed Paper Folder
Spec Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Maintenance / Parts Manual: View PDF File
✓ Air suction feed table for various paper types
✓ 7" color touchscreen control panel
✓ Low-pressure air chamber for curled paper
✓ Unlimited custom folds programmable
✓ Six pre-set folds for common paper sizes
✓ Fully-enclosed fold plates with LED displays
✓ Durable composite fold rollers
✓ Belt-driven outfeed stacker
✓ Modular perforator/scorer included
✓ Anti-static brushes

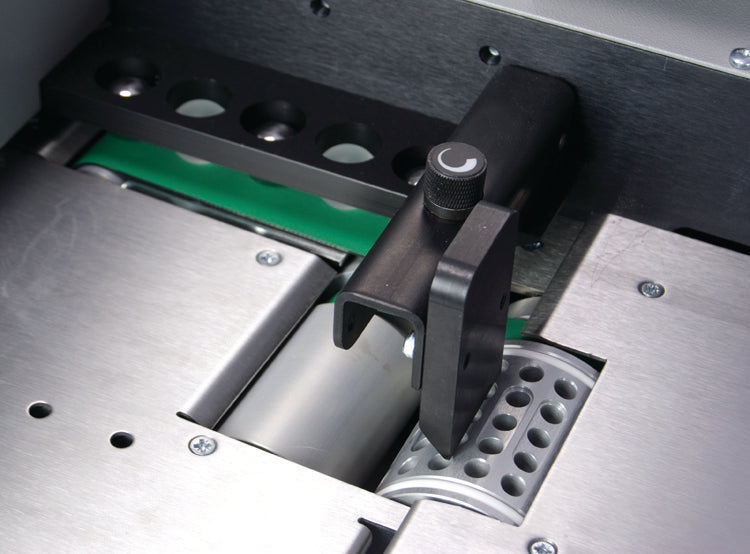

✓ Skew and micro adjustments
✓ Double document and jam detection
✓ Batch counting feature
✓ Handles paper up to 26.5" in length
✓ Accommodates 30# bond to 90# cover stock
- High-speed document folding with variable speed control, processing up to 27,500 sheets per hour

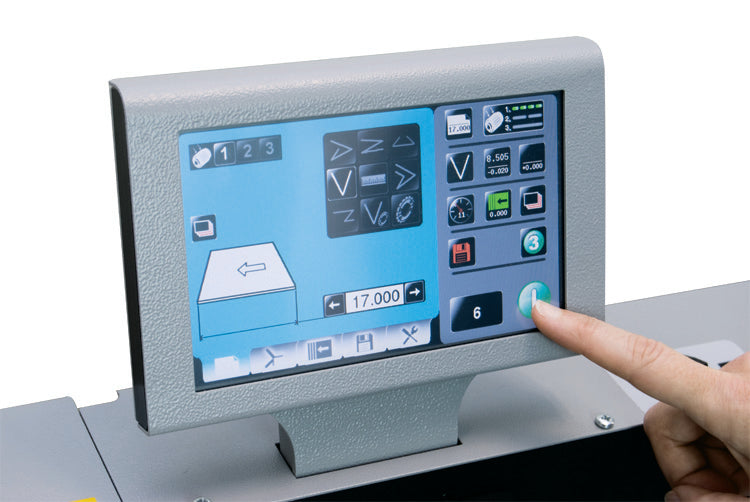

- 7" full-color touchscreen control panel for easy job setup and unlimited job memory storage
- Powerful air suction feed table handles various paper types, including coated and non-coated stock up to 26.5" in length

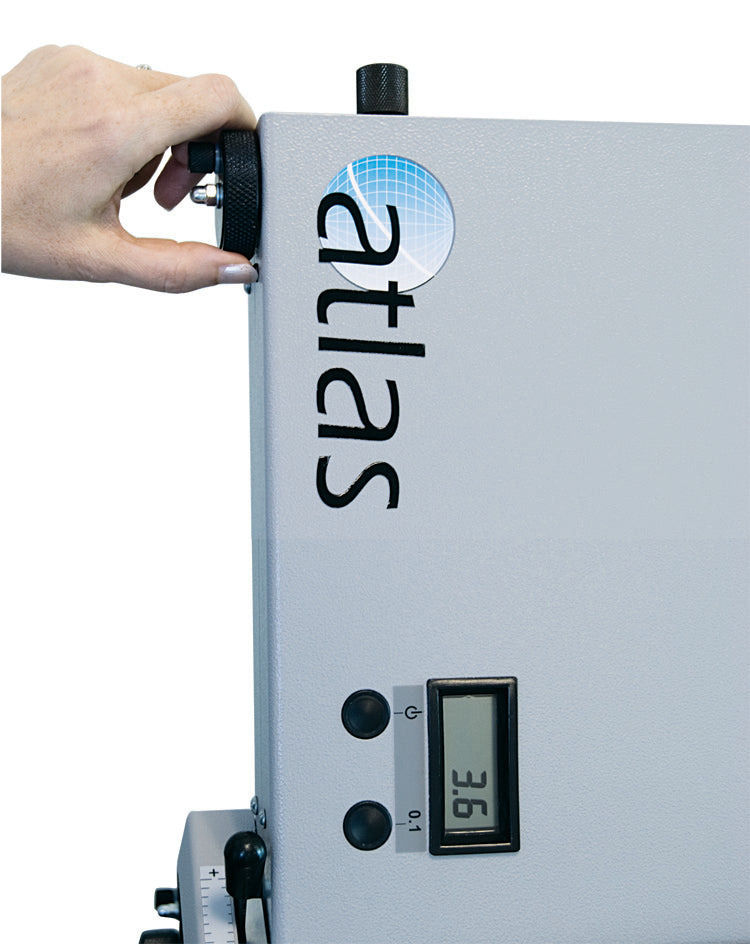

- Fully-enclosed fold plates with precise dial adjustments and LED displays accurate to 0.1mm
- Durable composite fold rollers designed to grip high-gloss paper, housed in a patented pull-out cassette
- Suction chamber to control curled or statically charged paper

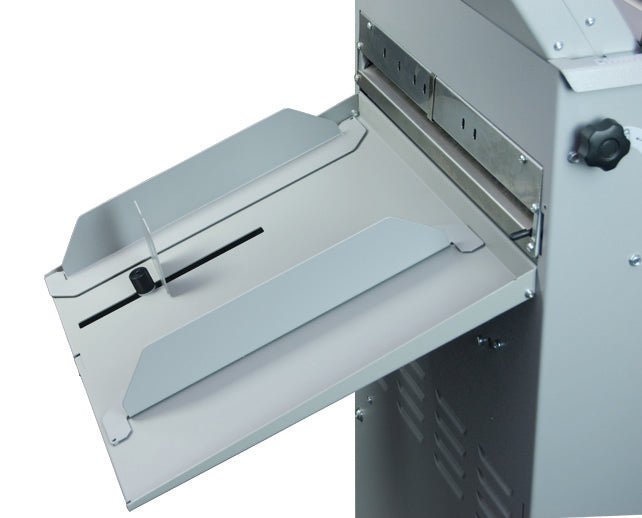

- Modular perforator/scorer with roller bypass function for folding and flat output of cover stock

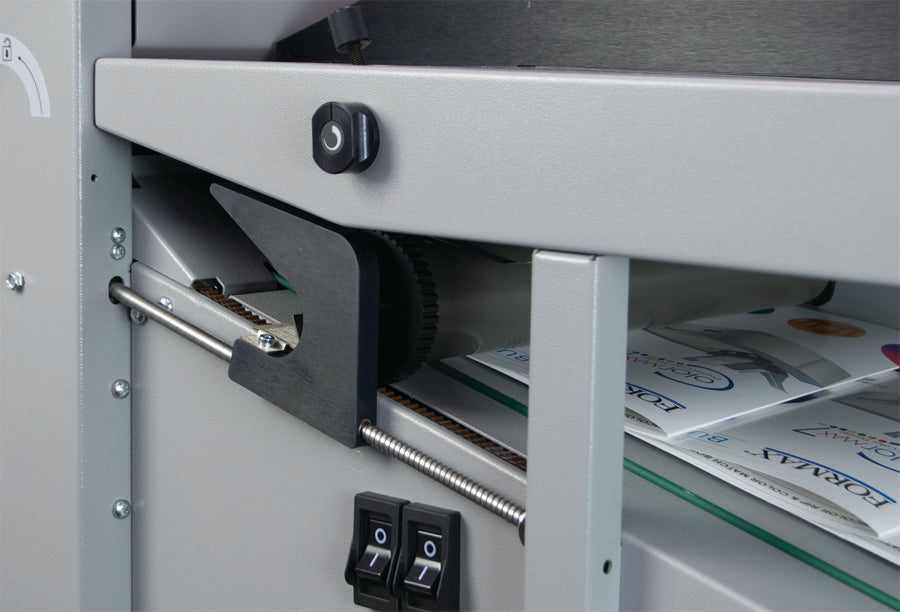

- Belt-driven outfeed stacker on the same side as infeed for convenient single-position operation
- Six standard folds for common paper sizes and unlimited custom fold options
- Double document and jam detection for improved reliability
- Batch counting feature for precise job management
- Anti-static brushes to reduce static electricity issues
- Skew and micro adjustments for fine-tuned folding accuracy
- Compact design ideal for high-volume folding in limited spaces
| Speed Up | 27,500 per hour* |
| Hopper Capacity | Up to 500 sheets, 22# bond |
| Pre-Set Folds | Pre-programmed for C, V, Z, Gate, Fold Out, and Double Parallel |
| Min. Paper Size | 6.2” L x 5.5” W (157 x 140mm) (3.7” w/optional narrow attachment) |
| Max. Paper Size | Max: 26.5” L x 14.3” W (673 x 363mm) |
| Paper Weight | Min: 30# bond Max: 90# cover (variable, based on material and grain direction) |
| Programmable Jobs | Unlimited |
| Dimensions | 48.8” L x 21.8” D x 54” H (1240 x 554 x 1372mm) |
| Weight | 265 lbs (120kg) |
| Power | 220V, 60Hz, 15A, with plug NEMA 6-15P |
Product Description:
Revolutionize your document folding process with the Formax Atlas-AS Air-Feed Paper Folder, a powerhouse that combines high-volume output with user-friendly features in a compact, robust design. This innovative folder addresses the challenges of handling various paper types and sizes, making it an indispensable tool for print shops, mailrooms, and offices with demanding folding needs. With its ability to process up to 27,500 sheets per hour and handle paper lengths up to 26.5", the Atlas-AS effortlessly tackles large-scale projects while occupying minimal space.
The Atlas-AS stands out with its intelligent air suction feed system, which expertly manages coated, non-coated, and even statically charged paper. The 7" full-color touchscreen control panel puts unlimited job programming at your fingertips, while the fully-enclosed fold plates with LED displays ensure precise, repeatable results. The durable composite fold rollers, housed in a patented pull-out cassette, grip high-gloss paper with ease, expanding your folding capabilities. Additional features like the modular perforator/scorer, belt-driven outfeed stacker, and anti-static brushes further enhance productivity and versatility. Whether you're producing marketing materials, invoices, or complex multi-page documents, the Formax Atlas-AS Air-Feed Paper Folder delivers professional results with efficiency and precision.
