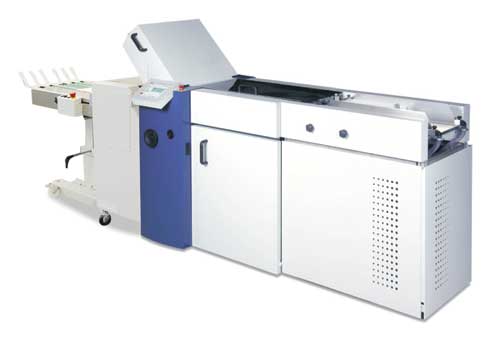

Formax AutoSeal 2300 Series Production Pressure Sealer
Formax AutoSeal 2300 Series Production Pressure Sealer - FD 2300 Pressure Sealer with Air-Feed is backordered and will ship as soon as it is back in stock.
Formax AutoSeal 2300 Series Production Pressure Sealer
✓ Up to 43,000 forms per hour
✓ Three models with different infeed options
✓ Color touchscreen control panel
✓ 200 custom job storage
✓ Fully automated settings
✓ Handles forms up to 11.5" x 25"
✓ Air-feed and pile-feed options
✓ Optional V-Stack36 Vertical Stacker
✓ Unlimited monthly duty cycle
✓ 20 pre-programmed standard folds
✓ Jam detection and safety interlocks
✓ Static eliminator included
✓ Adjustable output conveyor
✓ Insulated fold plates for noise reduction
- High-volume production pressure sealer capable of processing up to 43,000 forms per hour

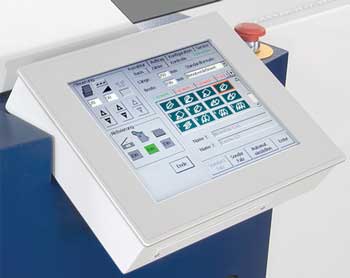

- User-friendly color touchscreen control panel for easy operation and job programming
- Ability to store up to 200 custom jobs for quick setup and recall
- Fully automated settings for feeder, alignment rails, fold plates, deflectors, and rollers
- Three models available with different infeed options to suit various capacity needs
- FD 2300 features air-feed system with 500-form capacity

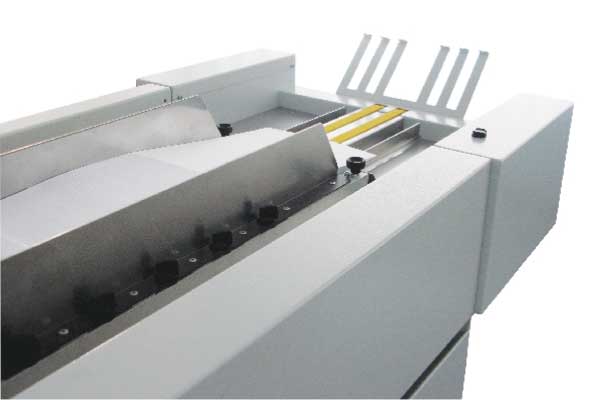

- FD 2300-EXT offers extended air-feed system with 2,500-form capacity

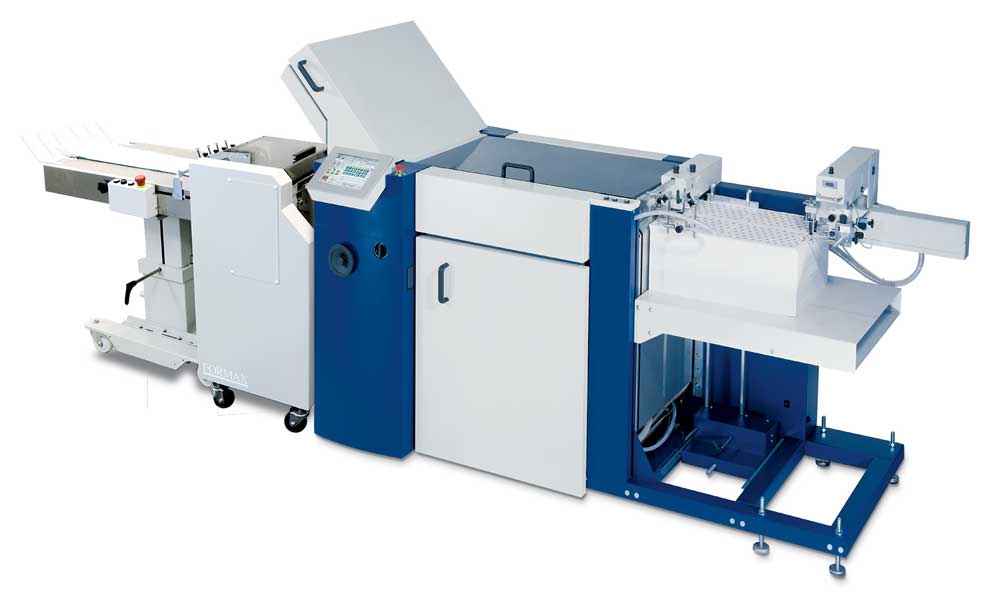

- FD 2350 utilizes pile-feed system with 3,500-form capacity
- Optional V-Stack36 Vertical Stacker for efficient form handling and unloading
- Processes forms up to 11.5" wide and 25" long
- Pre-programmed with 20 standard folds for common applications
- Adjustable output conveyor for flexible form collection
- Safety features include interlocks and jam detection
- Equipped with static eliminator for improved form handling
- Insulated fold plates for reduced noise during operation
- Unlimited monthly duty cycle for continuous high-volume processing
| FD 2300 | Up to 500 forms |
| FD 2300-EXT | Up to 2,500 forms |
| FD 2350 | Up to 3,500 forms* |
| Variable Speed | Up to 40,000 sheets per hour |
| Usage | High-volume production |
| Form size | FD 2300/2350: Up to 11.5” W x 25” L (292 x 635cm) FD 2300-EXT: Up to 11.5” W x 14” L (292 x 356cm) |
| Dimensions | FD 2300/2350: 152” L x 30” W x 56” H (386 x 76 x 142cm) FD 2300-EXT: 167” L x 30” W x 56” H (425 x 76 x 142cm) |
| Weight | Approximately 1,200 lbs (544kg) |
| Power | 208V, three phase, 20A** Special 3-Phase power required |
| Power Plug | NEMA L21-20P plug included, NEMA L21-20R receptacle required |
Product Description:
The Formax AutoSeal 2300 Series Production Pressure Sealer represents the pinnacle of high-volume document processing. This powerhouse machine is designed to tackle the most demanding jobs, sealing up to 43,000 forms per hour with precision and reliability. Whether you're managing large-scale mailings or processing sensitive documents in bulk, the 2300 Series streamlines your workflow with its user-friendly color touchscreen interface and the ability to store up to 200 custom job settings.
Available in three models to suit varying needs, the 2300 Series offers flexible infeed options ranging from 500 to 3,500 form capacity. The fully automated settings, including alignment rails, fold plate stops, and delivery rollers, ensure consistent, high-quality output while minimizing operator intervention. With the optional V-Stack36 Vertical Stacker, you can efficiently manage up to 22" of processed forms, further enhancing productivity. The 2300 Series not only accelerates your document processing but also maintains the confidentiality and integrity of your sensitive information, making it an indispensable asset for high-volume mailing operations, financial institutions, and government agencies alike.
