Formax AutoSeal FD 1506 Mid Volume Pressure Sealer
✓ Color touchscreen control panel
✓ Up to 100 forms per minute
✓ 14" form length capability
✓ Z, C, Uneven Z, Half, and custom folds
✓ 200-form hopper capacity
✓ Six-digit resettable counter
✓ Adjustable catch tray
✓ Drop-in feed system
✓ Easy-adjusted pre-marked fold plates
✓ 35,000/month duty cycle
✓ Optional 18" conveyor and jogger
✓ UL, CE, and CUL approved

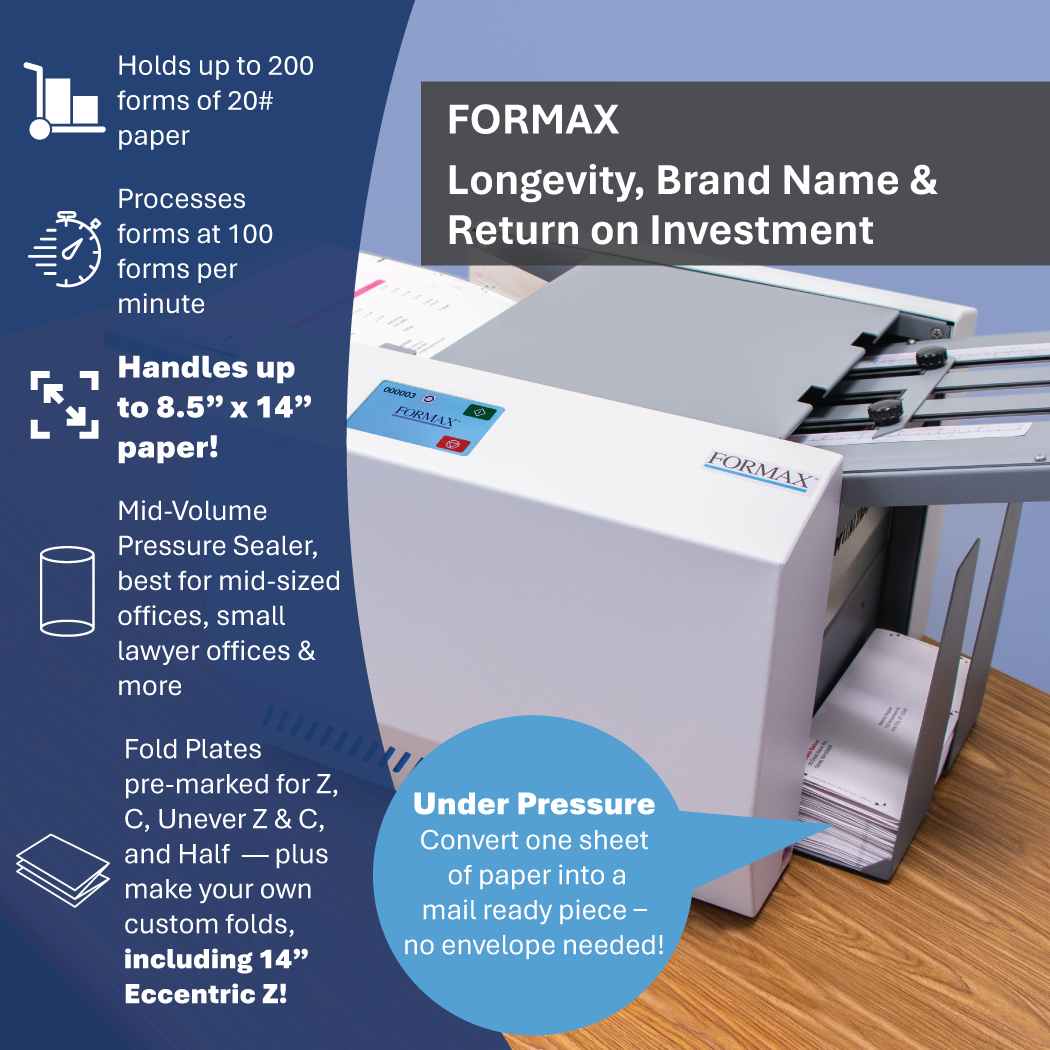

- Efficient mid-volume pressure sealer for processing one-piece pressure-sensitive mailers at speeds up to 100 forms per minute

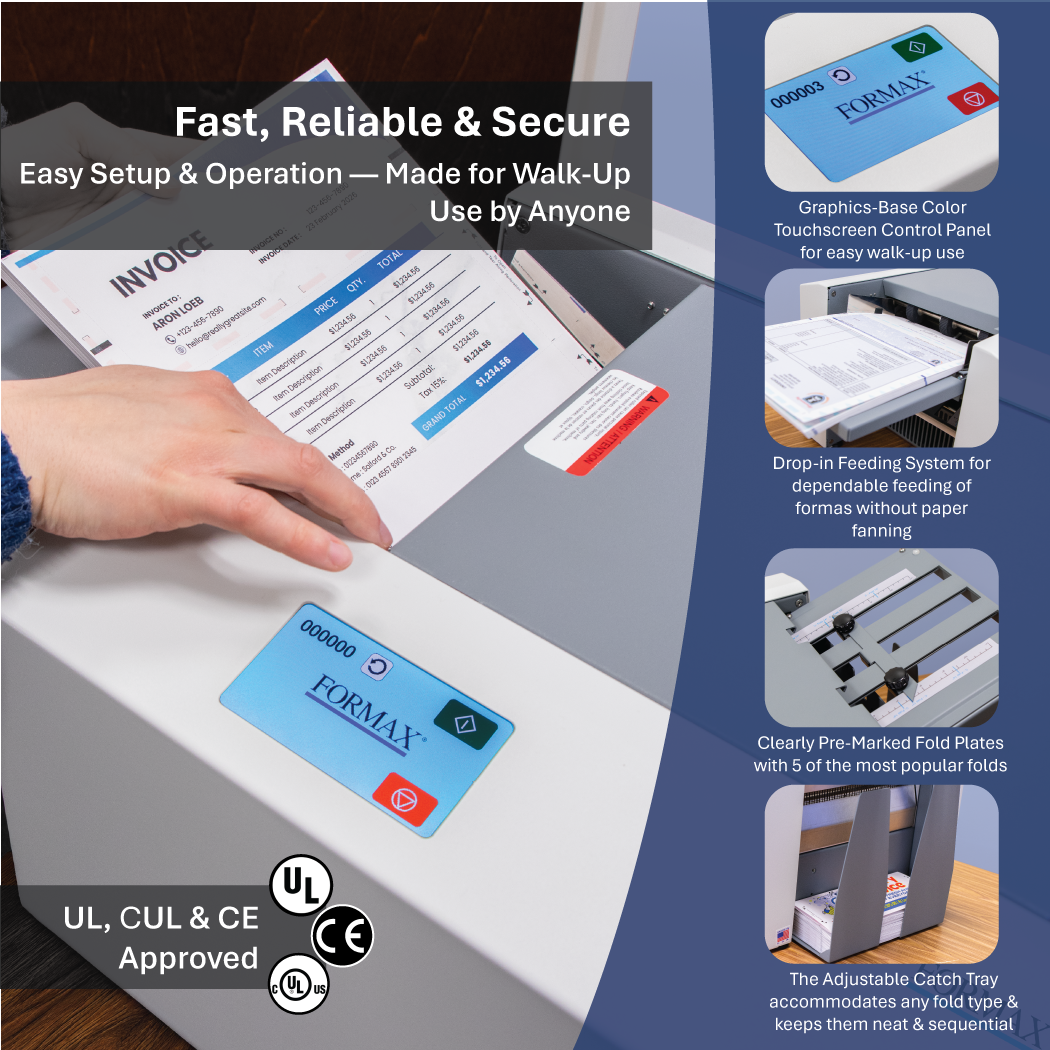

- Innovative color touchscreen control panel with internationally-recognized symbols for easy operation
- Versatile 14" form length capability for handling various mid-volume applications
- Pre-marked fold plates for quick setup of standard folds (Z, C, Uneven Z, Half) and easy adjustment for custom folds
- Ideal for processing checks, invoices, marketing pieces, school reports, and other single-form mail pieces
- Eliminates the need for envelopes, reducing hassle and expense in mailing operations
- Compact design suitable for office and school environments
- Built in the USA with proven Formax technology for reliability and quality
- Drop-in feeding system for dependable form processing without paper fanning
- Adjustable catch tray accommodates all fold types and neatly stacks forms
- Six-digit resettable counter for accurate job tracking
- Optional features include 18" conveyor, reverse stacking conveyor, locking cabinet, and 402 Series Jogger for enhanced functionality
| Hopper Capacity | Up to 200 forms 20# |
| Fixed Speed | Up to 100 forms per minute |
| Paper Size | Up to 8.5” W x 14” L (216 x 356mm) |
| Fold Types | Z, C, Uneven Z and C, Half, Custom |
| Monthly Duty Cycle | Up to 35,000/month |

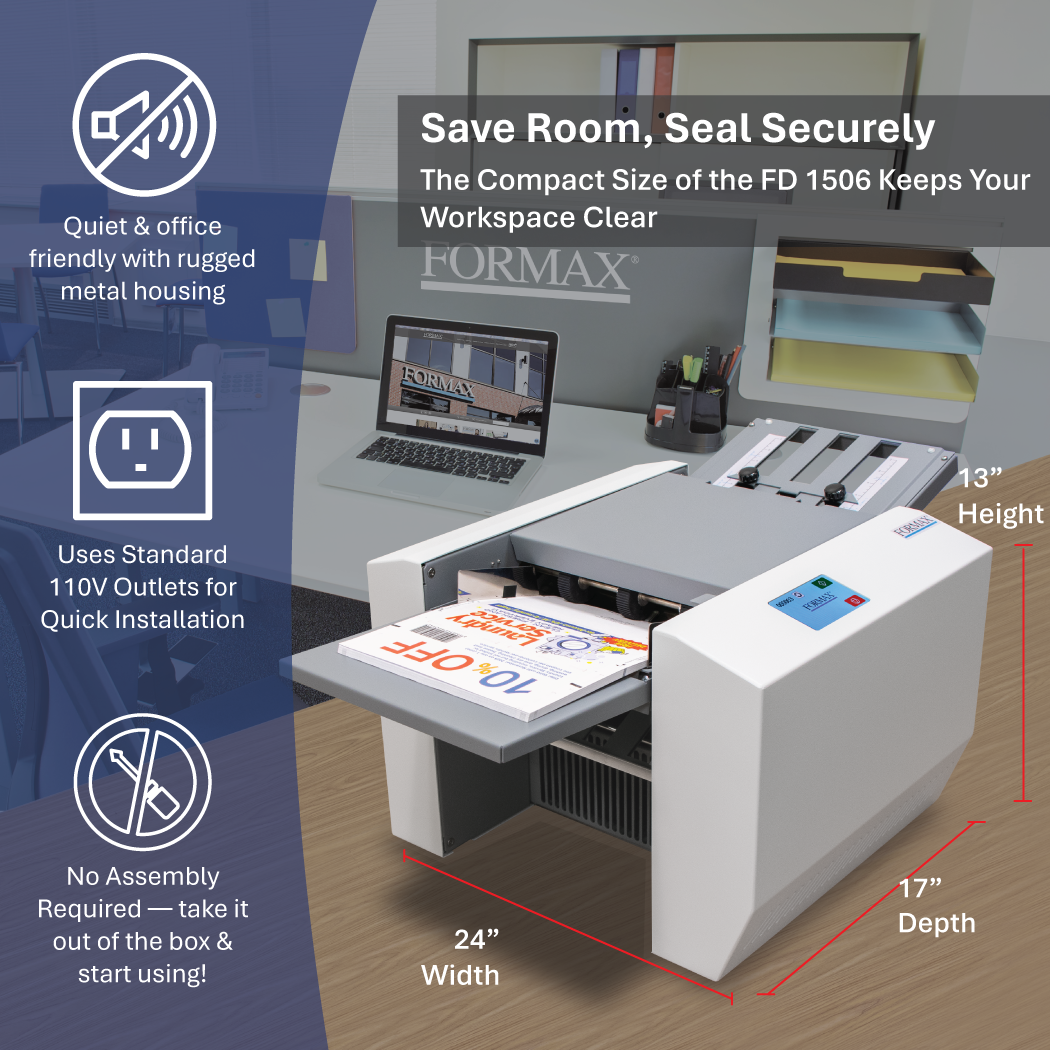

| Dimensions | 24” L x 17” W x 13” H (610 x 432 x 330mm) |
| Weight | 81 lbs (37kg) |
| Power | FD Model: 120 Volts AC 50/60Hz FE Model: 220 Volts AC 50/60Hz |
| Document Sequence | Standard sequence is A-to-Z input, Z-to-A output |
| Certifications | UL, CE, and CUL Approved |
Product Description:
Elevate your office's mailing efficiency with the Formax AutoSeal FD 1506 Mid Volume Pressure Sealer. This innovative solution revolutionizes the processing of one-piece pressure-sensitive mailers, offering unparalleled ease of use through its pioneering graphics-based color touchscreen. Featuring internationally-recognized symbols, the intuitive interface ensures seamless operation for users of all levels, making it an ideal choice for diverse office environments.
With a impressive speed of up to 100 forms per minute, the FD 1506 transforms time-consuming mailing tasks into swift, effortless processes. Its versatility shines through the ability to handle forms up to 14" long and execute a variety of fold types, including Z, C, Uneven Z, and Half folds, as well as custom options like Eccentric Z and C-fold mailers. This adaptability, combined with the convenience of pressure seal forms, eliminates the need for envelopes, significantly reducing both time and costs associated with traditional mailing methods. Built with proven Formax technology in the USA, the FD 1506 stands as a testament to quality, reliability, and efficiency in mid-volume document processing.
