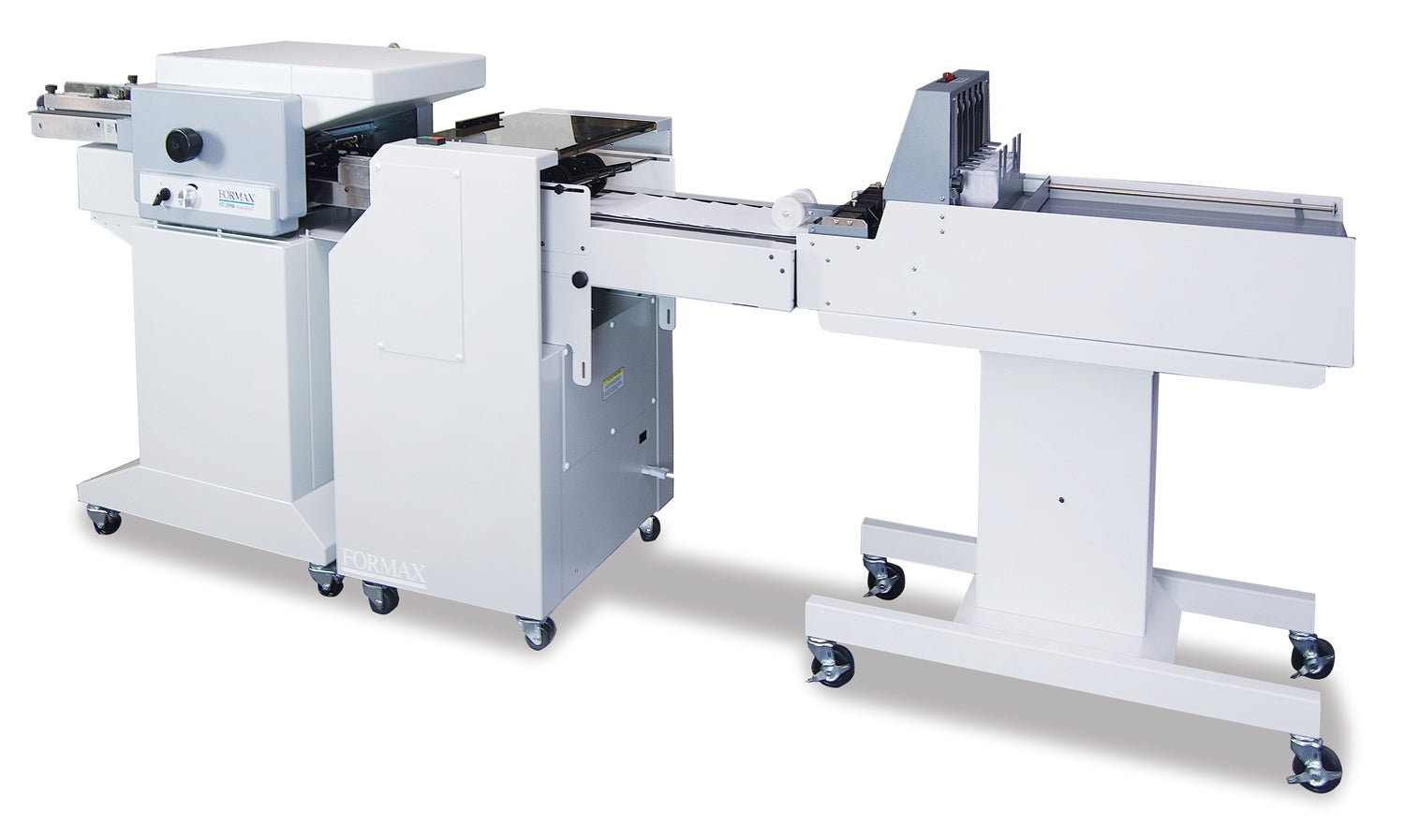

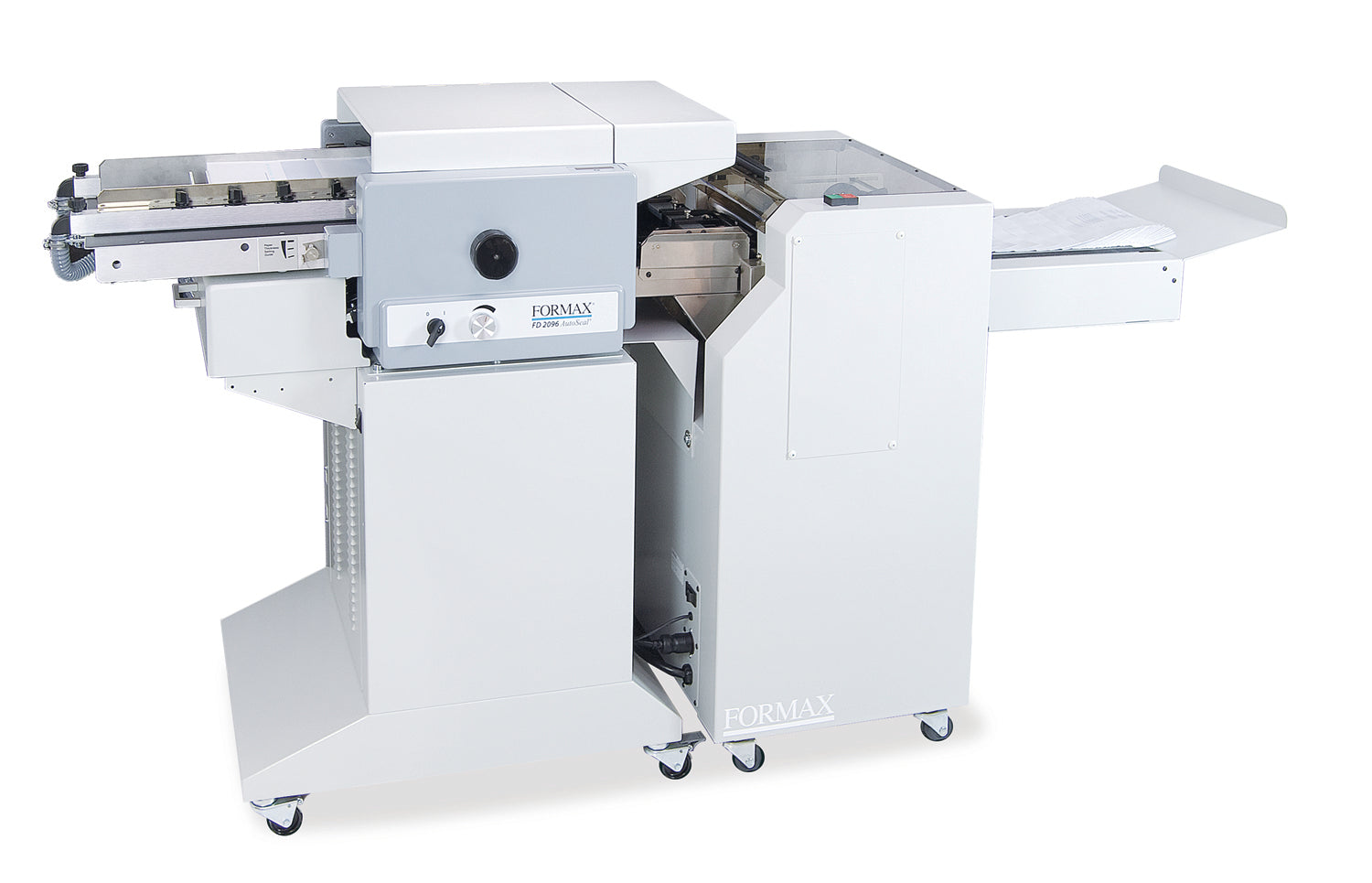

Formax AutoSeal FD 2096 Production Pressure Sealer
✓ Bottom-suction air-feed system
✓ Continual form loading capability
✓ Rugged metal fold plates
✓ Heavy-duty polyurethane foam rollers
✓ 17" ball transport deck
✓ Sound-dampening fold plate covers
✓ 6-digit resettable LED counter
✓ Rugged locking casters
✓ 24" collapsible output conveyor
✓ Variable speed control
✓ Rotating air suction drum
✓ 7-point quick-release fold stops
✓ Infrared fault detection
✓ Static eliminator brush
✓ Plexi-cover with safety interlock
✓ Mid-volume production usage
✓ Handles forms up to 12" W x 17" L
✓ 120V 60Hz, 30Amp power requirement
- High-speed processing of up to 30,000 pressure seal forms per hour, ideal for mid-volume production environments
- Bottom-suction air-feed system ensures accurate feeding and allows continuous form loading, minimizing downtime
- Quick and easy setup with durable metal fold plates featuring standard and metric markings
- Heavy-duty polyurethane foam fold rollers eliminate the need for gap adjustments
- 17" ball transport deck for smooth transition from fold rollers to sealer, requiring no adjustments
- Sound-dampening fold plate covers for quieter operation
- 6-digit resettable LED counter for accurate form tracking
- Rugged locking casters for easy mobility and stability
- High-capacity 24" collapsible output conveyor for convenient storage
- Variable speed control for versatile operation
- Precision ground clutching 4-roller system for reliable form processing
- Fully-enclosed air-feed pump and rotating air suction drum for efficient form handling
- 7-point quick-release fold stops for easy adjustments
- User-friendly controls and adjustments for seamless operation
- Infrared fault detection system for enhanced reliability
- Plexi-cover with safety interlock for operator protection
- Static eliminator brush to reduce paper jams and improve processing quality
| Hopper Capacity | Up to 350 sheets 24# |
| Speed | Up to 30,000 forms per hour |
| Usage | Mid-Volume Production |
| Form Size | Up to 12” W, up to 17” L (305mm, 432mm) |
| Dimensions (Conveyor Extended) | 86” L x 28” W x 42” H (219 x 71 x 107cm) |
| Dimensions (Conveyor Closed) | 64” L x 28” W x 42” H (163 x 71 x 107cm) |
| Weight | 450 lbs (204kg) |
| Power | 120V 60Hz, 30Amp, single phase |
| Power Plug | NEMA L5-30P |
Product Description:
Revolutionize your mid-volume mailing operations with the Formax AutoSeal FD 2096 Production Pressure Sealer. This cutting-edge machine harnesses patented pressure seal technology to process up to 30,000 cut-sheet forms per hour, streamlining your workflow and boosting productivity. The ingenious bottom-suction air-feed system ensures precise form handling while allowing continuous loading, minimizing downtime and keeping your operation running smoothly.
Designed for efficiency and user-friendliness, the FD 2096 boasts quick setup and intuitive controls. Its rugged metal fold plates with clear markings and heavy-duty polyurethane foam rollers eliminate the need for time-consuming adjustments. The 17" ball transport deck ensures seamless form transition, while sound-dampening covers provide a quieter work environment. With its high-capacity 24" collapsible output conveyor, 6-digit LED counter, and sturdy locking casters, this versatile machine adapts to your workspace needs. Experience the perfect blend of power, precision, and convenience with the Formax AutoSeal FD 2096 – your ultimate solution for efficient, high-volume pressure-seal mailings.
