Formax FD 262 Single-Head Tabber
Spec Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Maintenance / Parts Manual: View PDF File
✓ Handles media up to 17" wide
✓ Media thickness up to 5/32"
✓ Integrated bottom feeder
✓ Built-in waste take-up spool
✓ 5-digit resettable LCD counter
✓ Tab sensitivity control
✓ Uses various tab stocks
✓ Tab sizes up to 1 1/2" diameter
✓ Meets USPS requirements
✓ Optional drop-stacking conveyor
✓ Continuous media loading
✓ Made in USA

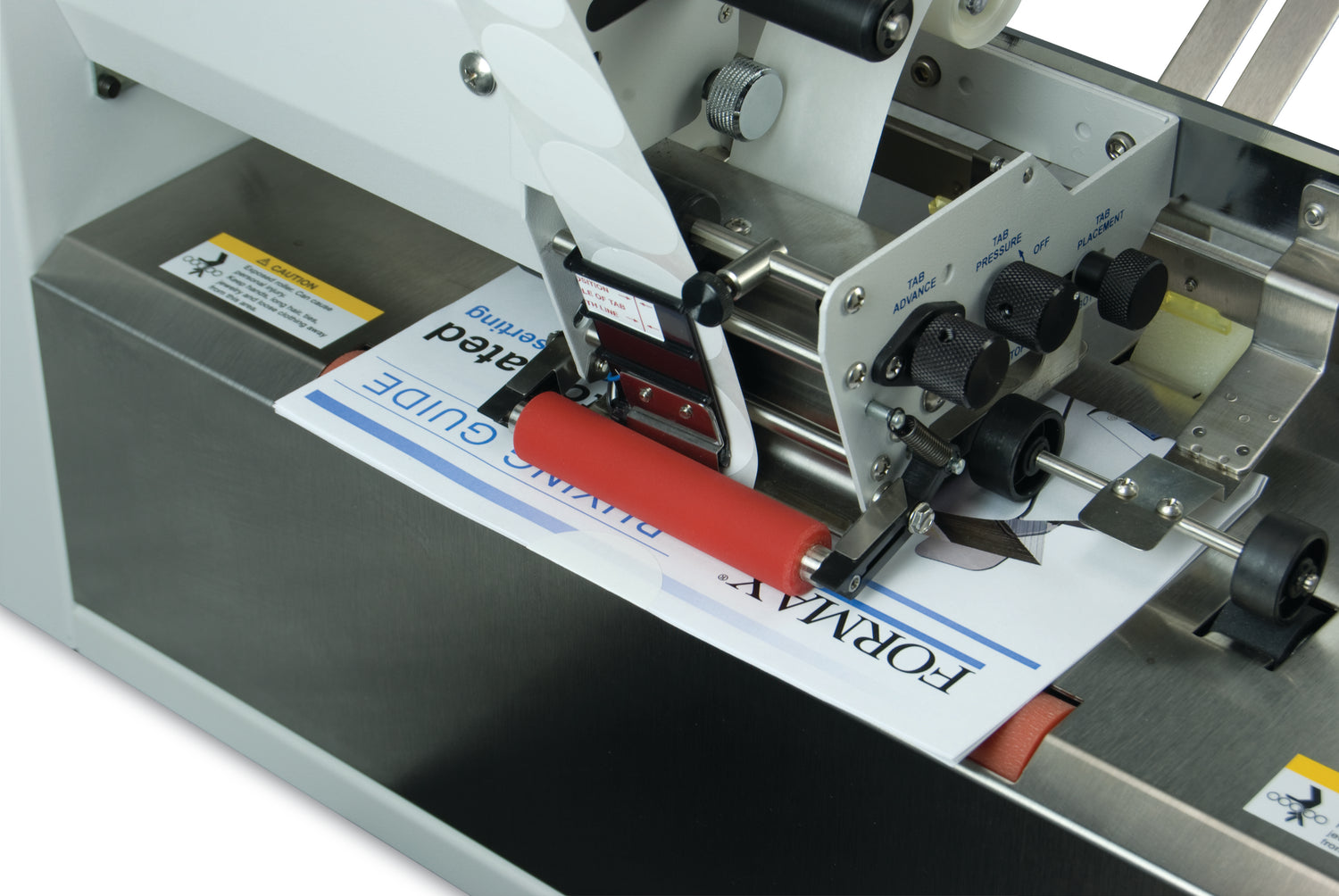

- Efficiently applies tabs to folded mailpieces at speeds up to 12,000 pieces per hour, meeting USPS requirements for mailing and automation discounts
- Utilizes "crash tab" technology for secure and tight sealing of mailpiece edges
- Handles media up to 17" wide and 5/32" thick, accommodating various mailpiece sizes

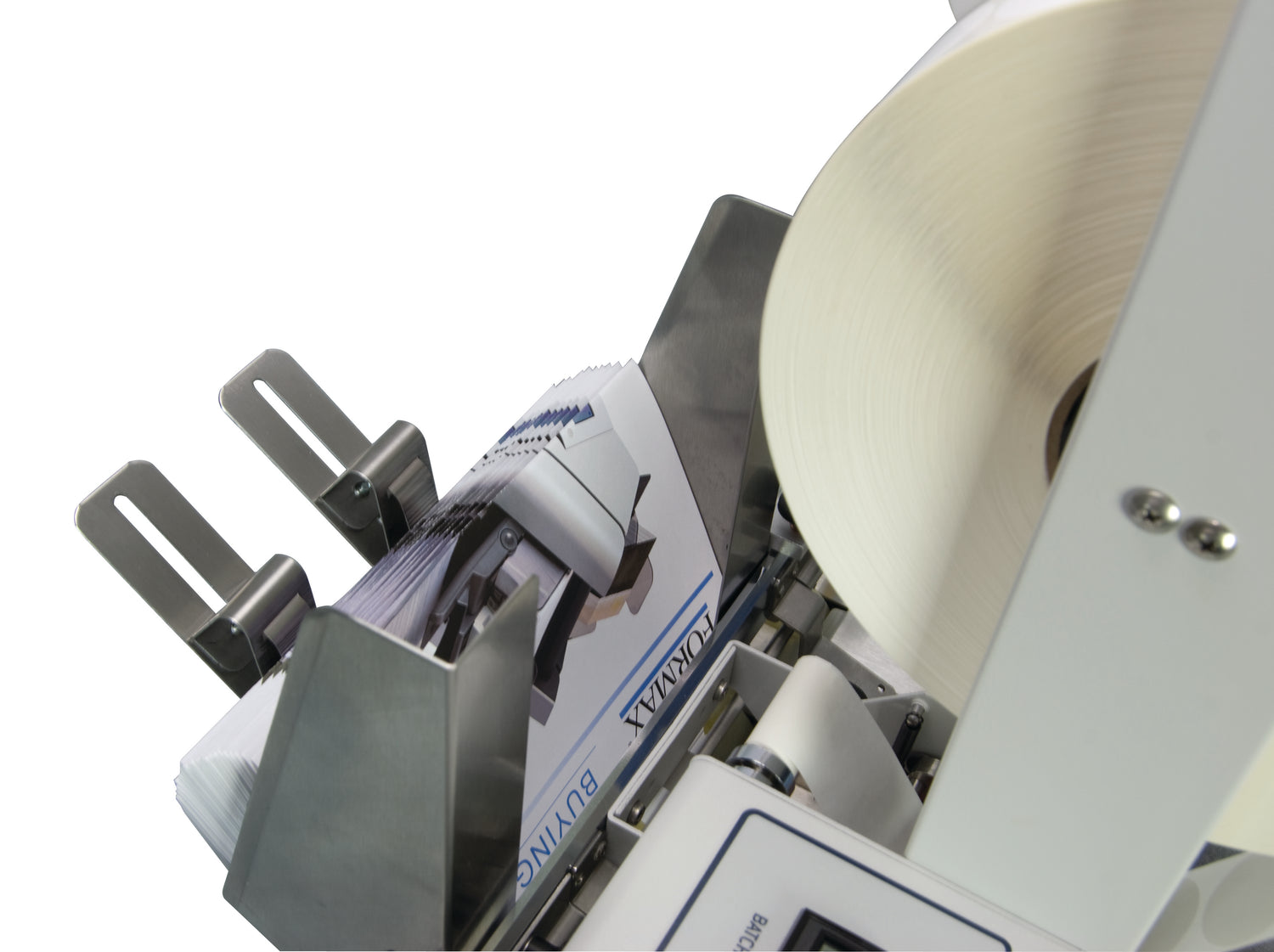

- Features an integrated bottom feeder for continuous operation, reducing downtime

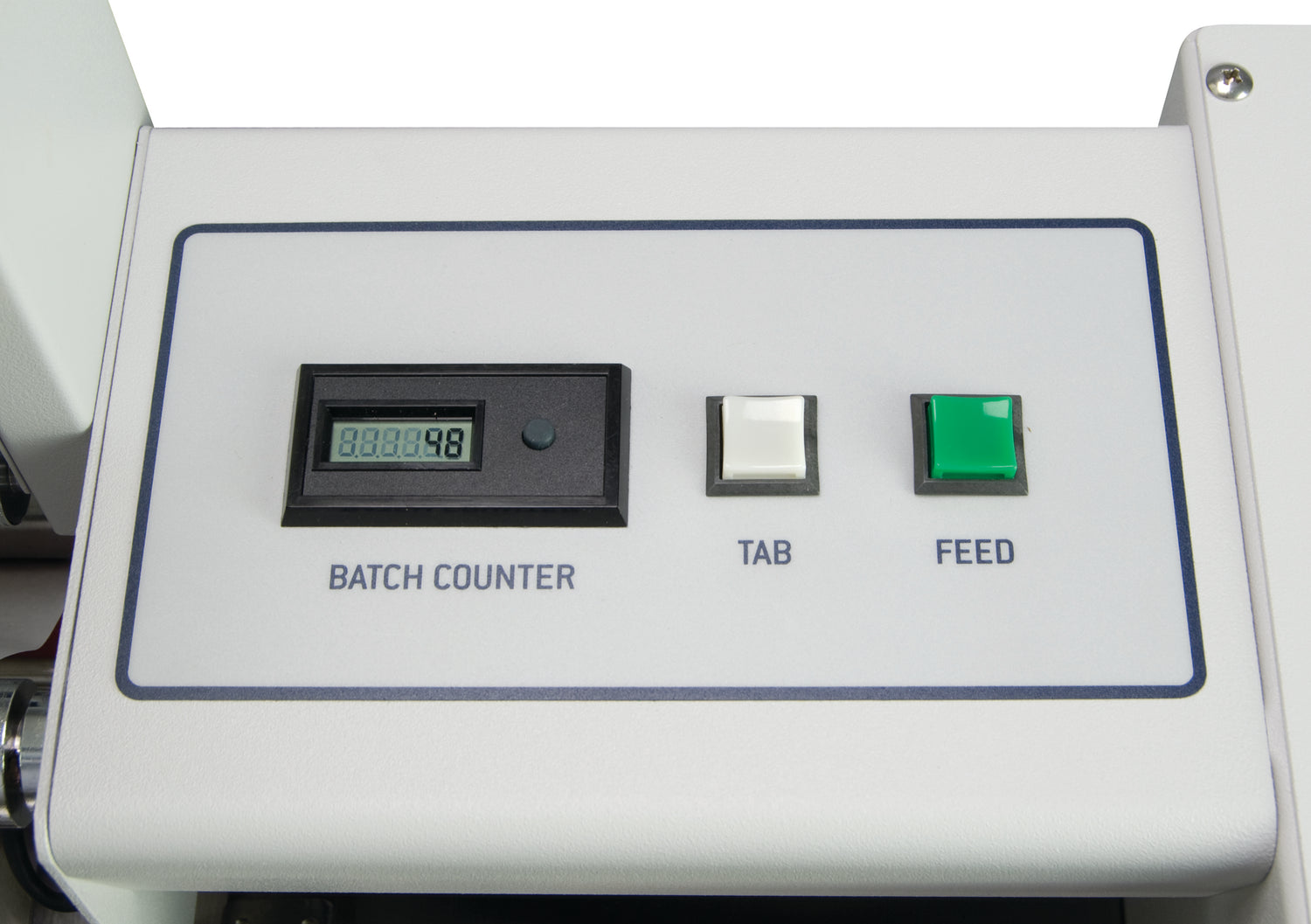

- Includes user-friendly controls with a 5-digit resettable LCD counter for easy tracking
- Offers tab sensitivity control to adjust for different tab stock densities

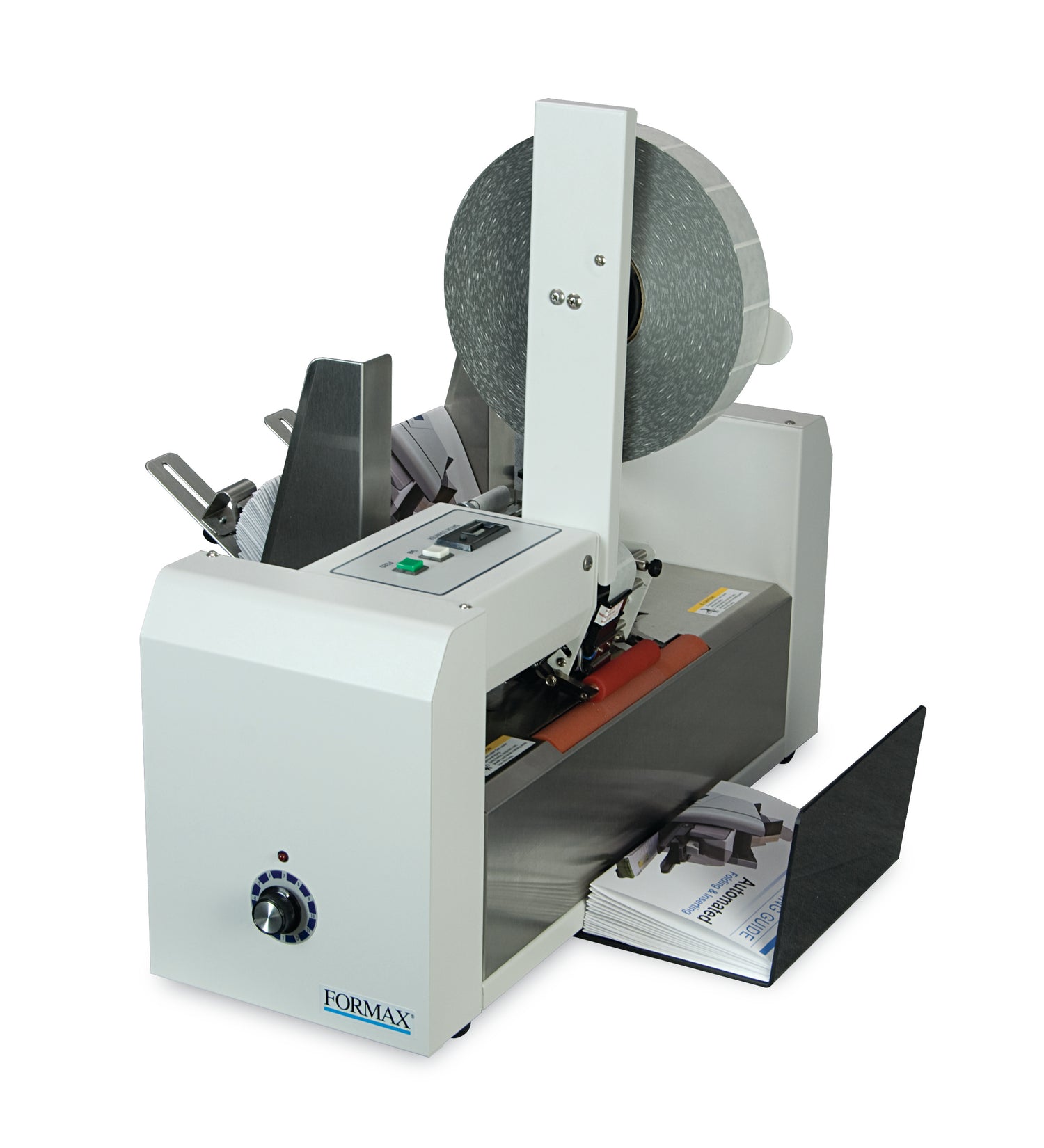

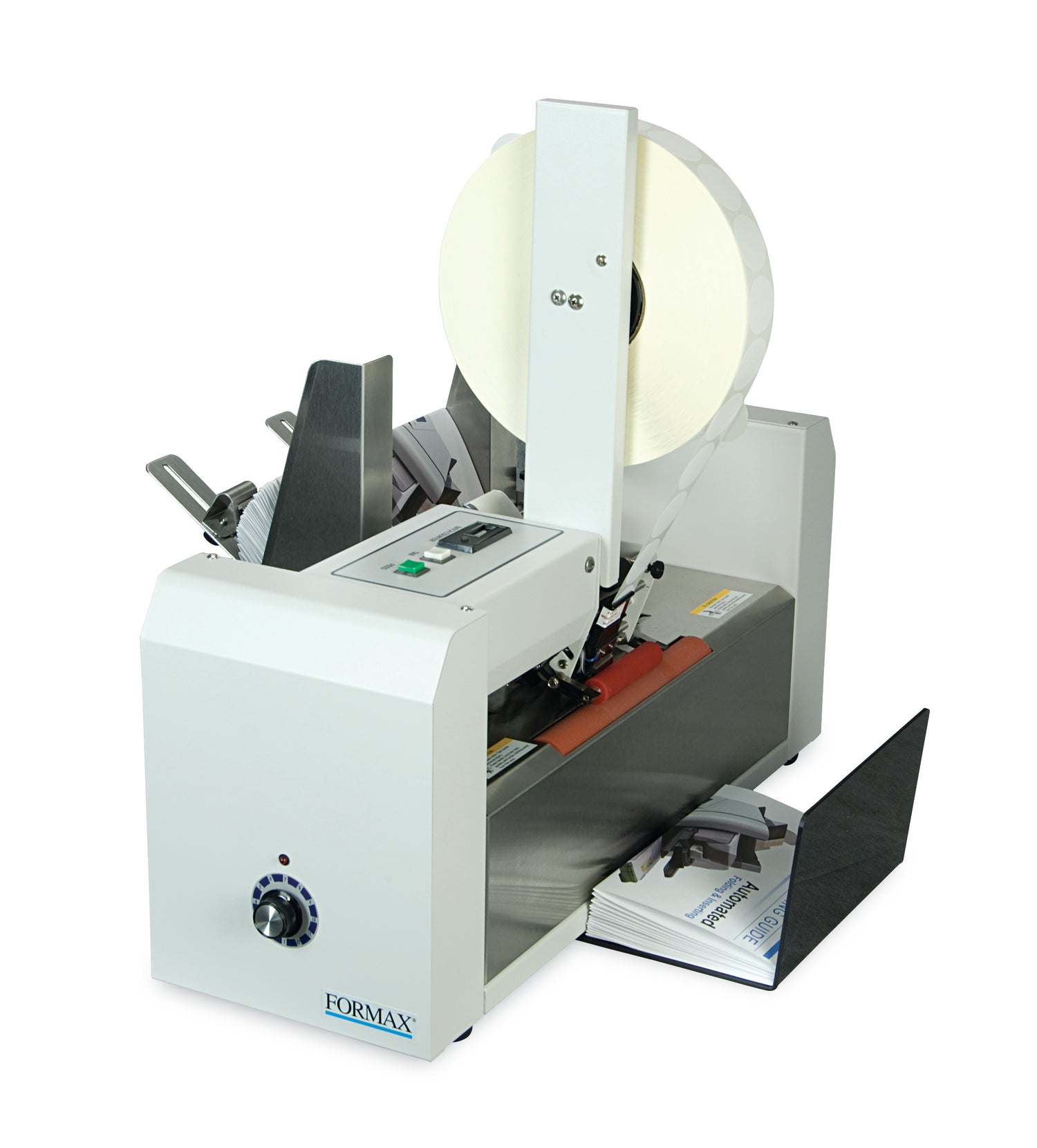

- Compatible with various tab stocks, including translucent, paper, and clear, up to 1 1/2" in diameter
- Allows for flexible tab placement to meet changing USPS requirements
- Optional FD 282-30 3-foot Drop-Stacking Conveyor available for neat, sequential stacking of tabbed pieces
- Built-in waste take-up spool minimizes maintenance and improves efficiency
- Made in the USA, ensuring high quality and reliable performance
| Speed Up | 12,000 pieces per hour |
| Feeder Capacity | Up to 200 tri-folds, integrated bottom feeder for continuous operation |
| Media Size | 3” to 18” L (76 x 457mm), 5” to 17” W (127 x 432mm) |
| Media Thickness | Up to 5/32” (4mm) |
| Tab size | 5/8” to 1 1/2” (16 to 38mm) |
| Tab Materials | Translucent, paper, clear |
| Tab Sensitivity Control | Adjusts for density in tab/wafer seals |
| Tabs Applied | 1 tab per pass |
| Tab Roll Capacity | Up to 10,000 tabs |
| Tab Roll Size | Max roll diameter: 9” Core diameter: 3” |
| Counter | 5-digit LCD, resettable |
| Duty Cycle | Up to 30 million addresses or 500,000 per month over 5-year cycle |
| Dimensions | 25” W x 22” H x 15.5” D (64 x 56 x 39cm) |
| Weight | 40 lbs (18kg) |
| Power | 120VAC, 50/60Hz |
Product Description:
Streamline your mailing process and ensure USPS compliance with the Formax FD 262 Single-Head Tabber. This high-performance tabbing system applies adhesive tabs to folded mailpieces with precision and efficiency, processing up to 12,000 pieces per hour. The FD 262's innovative "crash tab" technology and integrated bottom feeder allow for continuous operation, minimizing downtime and maximizing productivity. With its ability to handle media up to 17" wide and 5/32" thick, this versatile tabber adapts to a wide range of mailing needs.

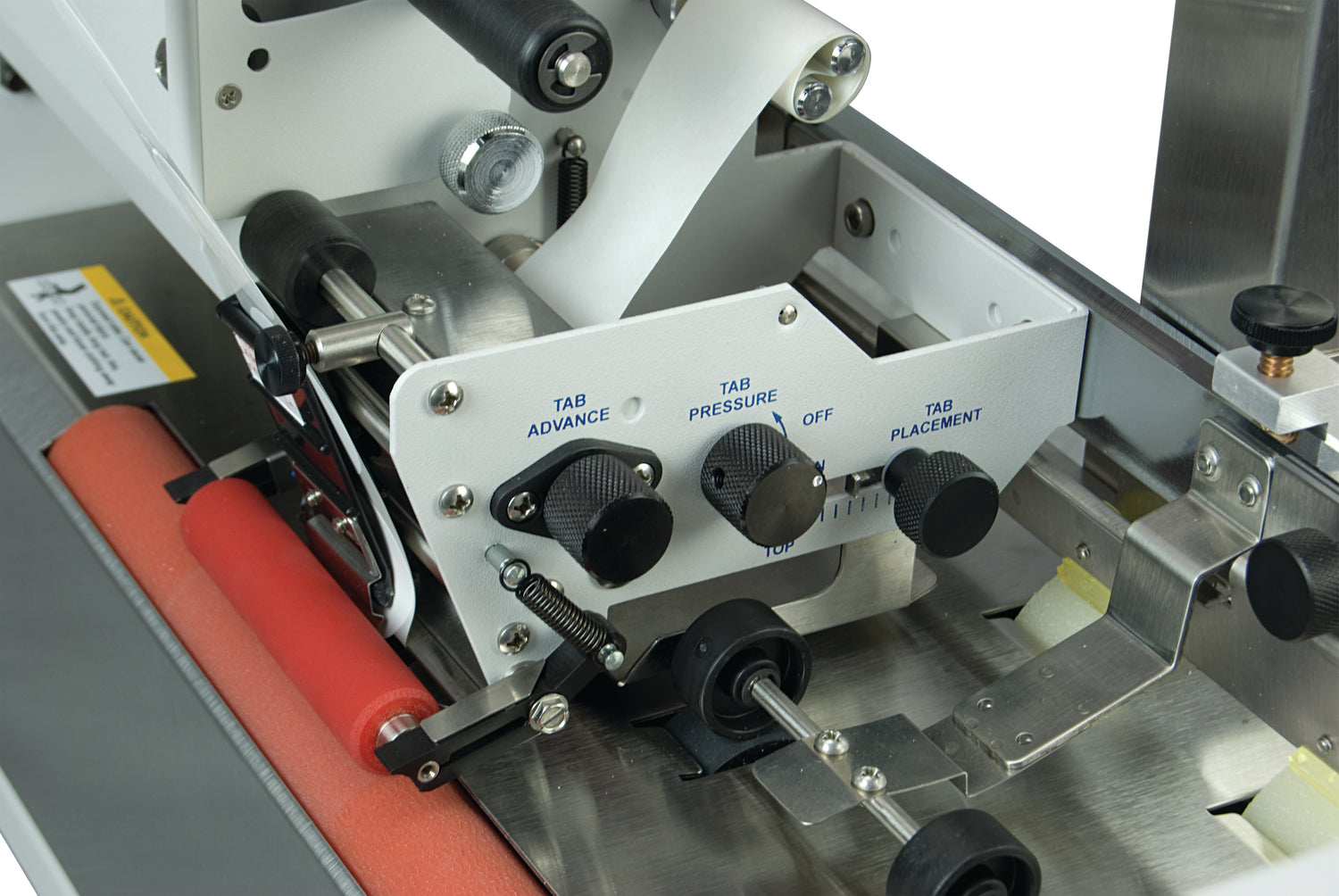

The FD 262's user-friendly design includes intuitive controls, a 5-digit resettable LCD counter, and a tab sensitivity control for optimal performance across various tab stock densities. Its built-in waste take-up spool and easily accessible adjustment knobs further enhance operational efficiency. Compatible with translucent, paper, and clear tab stocks up to 1 1/2" in diameter, this American-made tabber offers the flexibility to meet changing postal regulations with ease. When paired with the optional FD 282-30 conveyor, the FD 262 becomes a complete mailing solution, ensuring your mailpieces are not only compliant but also neatly stacked for convenient handling.
