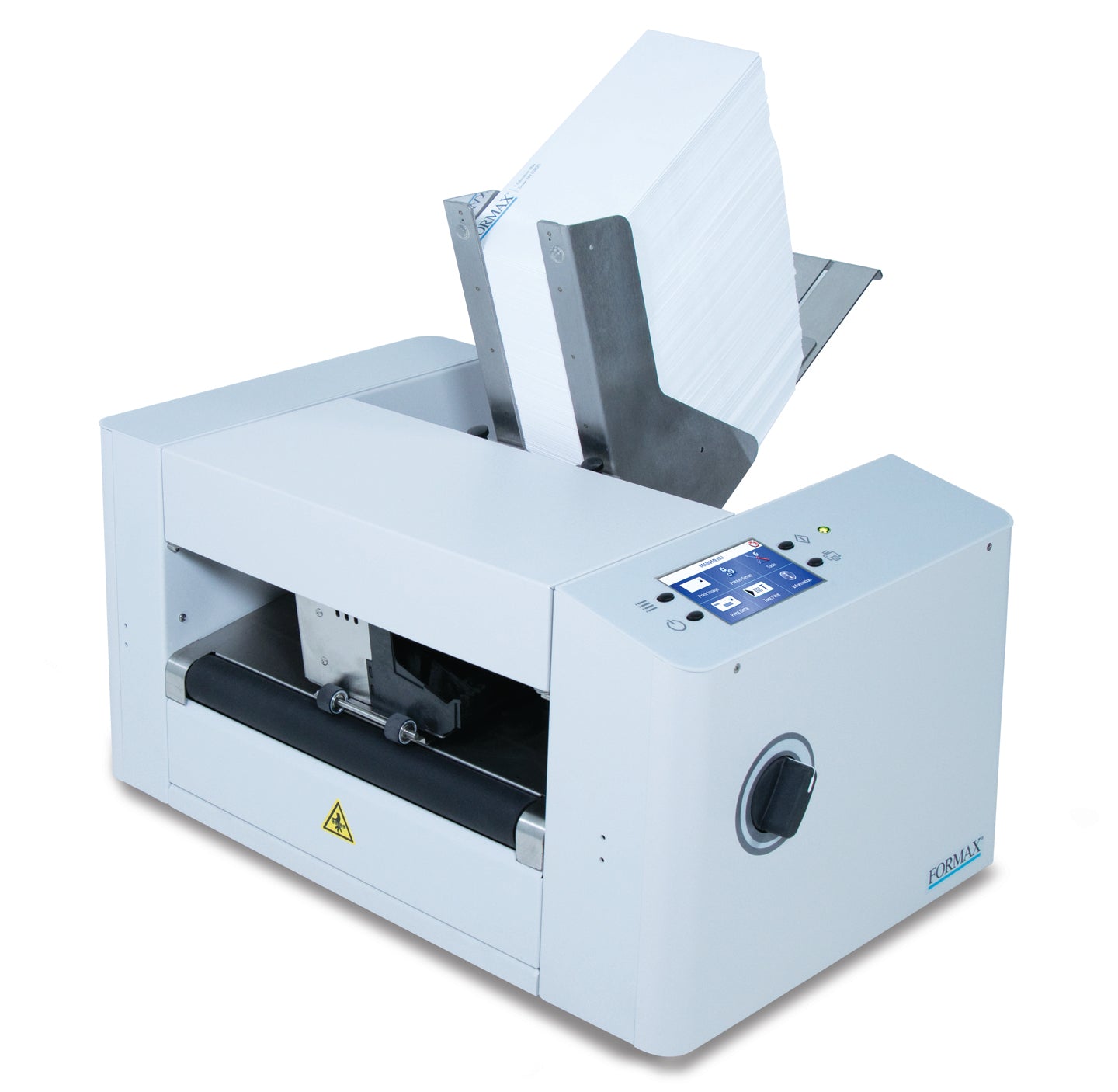

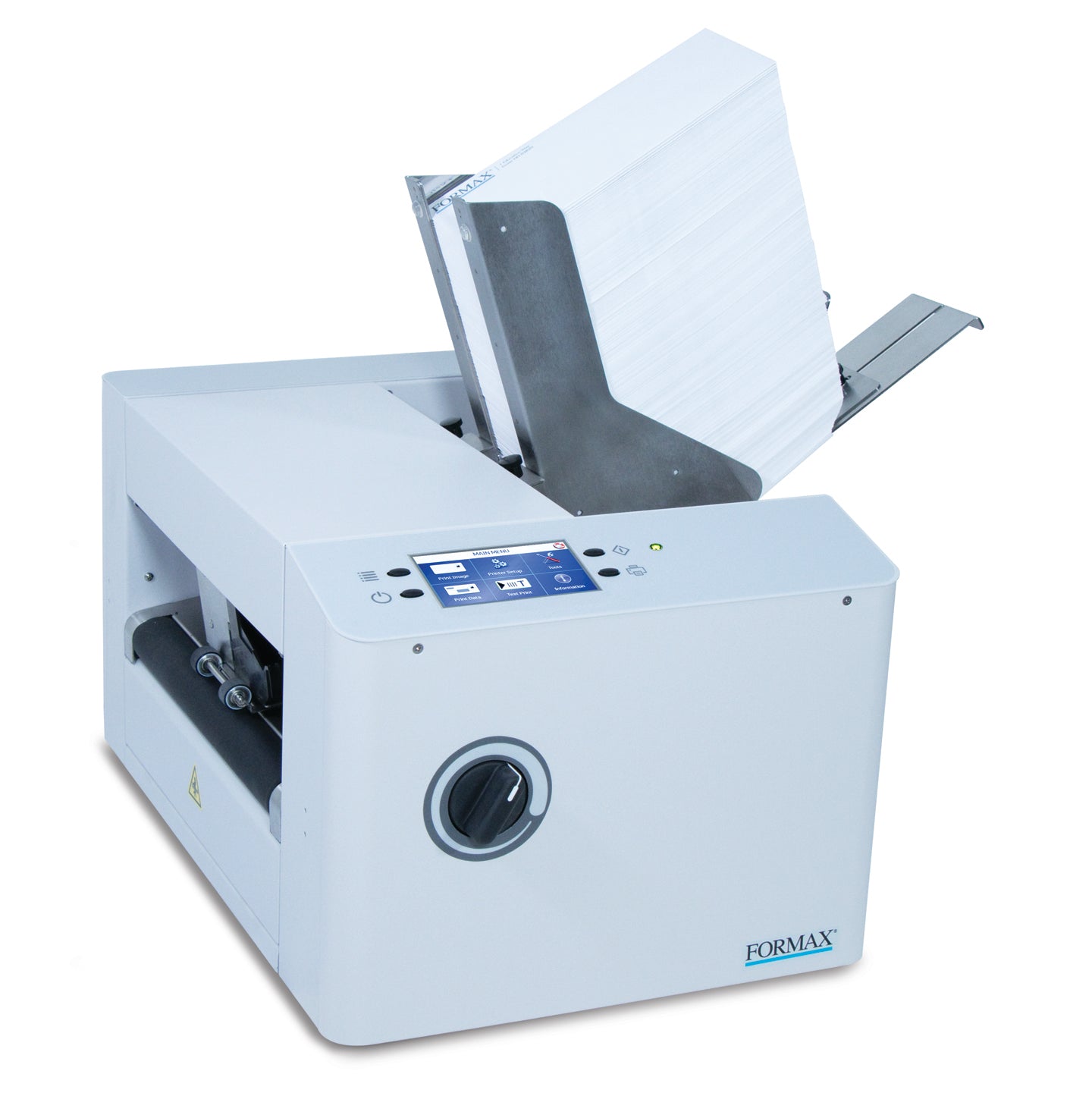

Formax AP2 Monochrome Digital Address Printer
Spec Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Maintenance / Parts Manual: View PDF File
✓ Variable print resolution up to 600 DPI
✓ 4.5" color touchscreen with adjustable backlight
✓ 16GB job memory storage
✓ Integrated feeder holds 500 envelopes
✓ Handles materials up to 1/4" thick

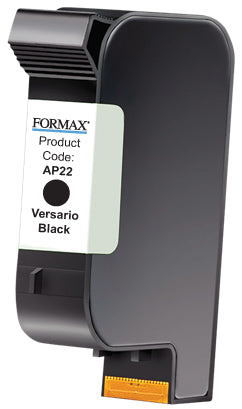

✓ Fixed print head with 4 inkjet cartridges
✓ Image area up to 2" x 15"
✓ Vertical print range up to 10.75"
✓ On-screen ink monitoring
✓ USB 3.0/LAN connectivity
✓ TrueType font compatibility
✓ Spot color capability
✓ Batch/job/lifetime counters
✓ Prints on UV paper stocks
✓ Optional 3-foot conveyor stacker available
- High-speed printing of up to 22,000 #10 envelopes per hour with variable print resolutions up to 600 DPI for crisp, professional results

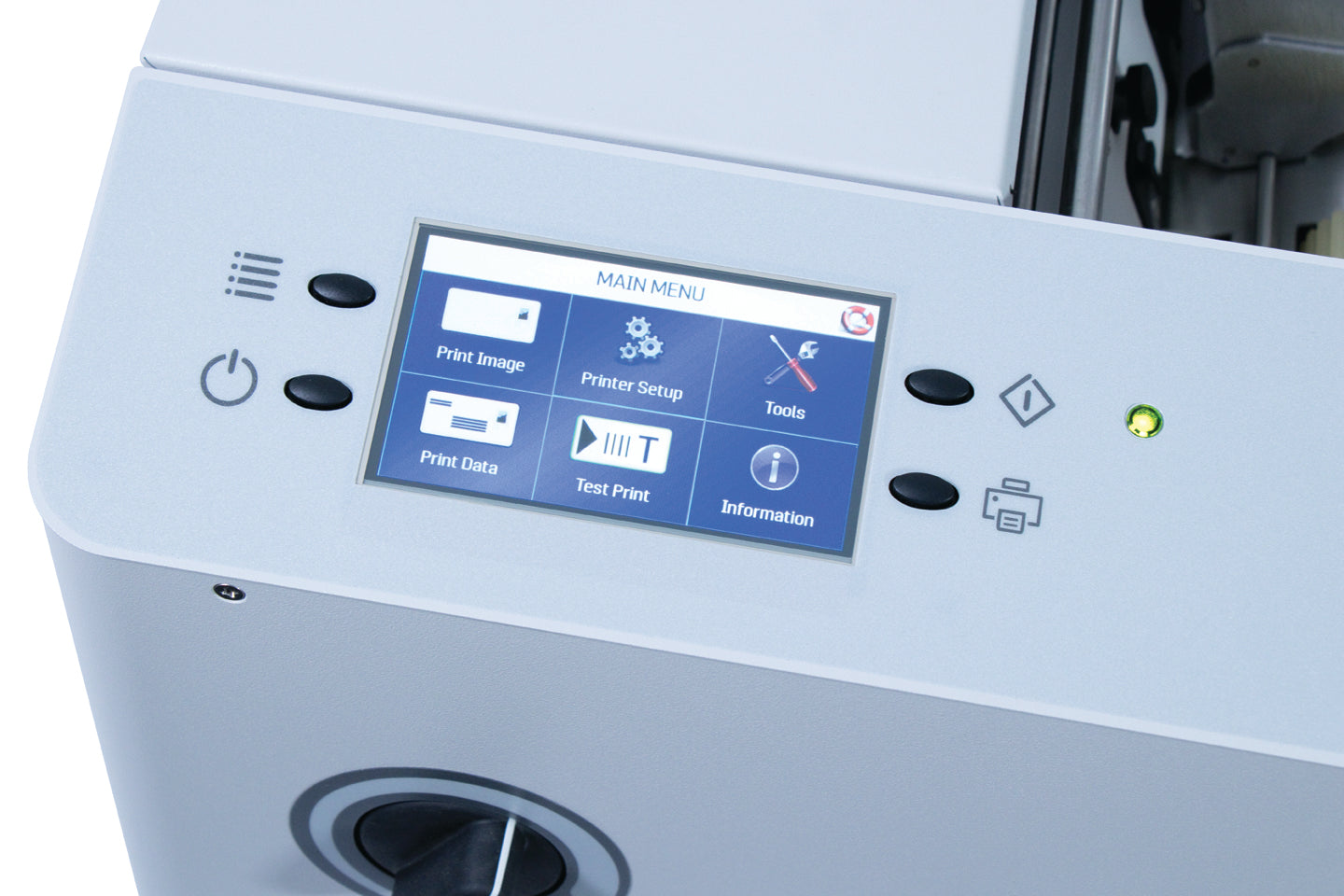

- User-friendly 4.5" color touchscreen with adjustable backlight for easy navigation and control of all functions

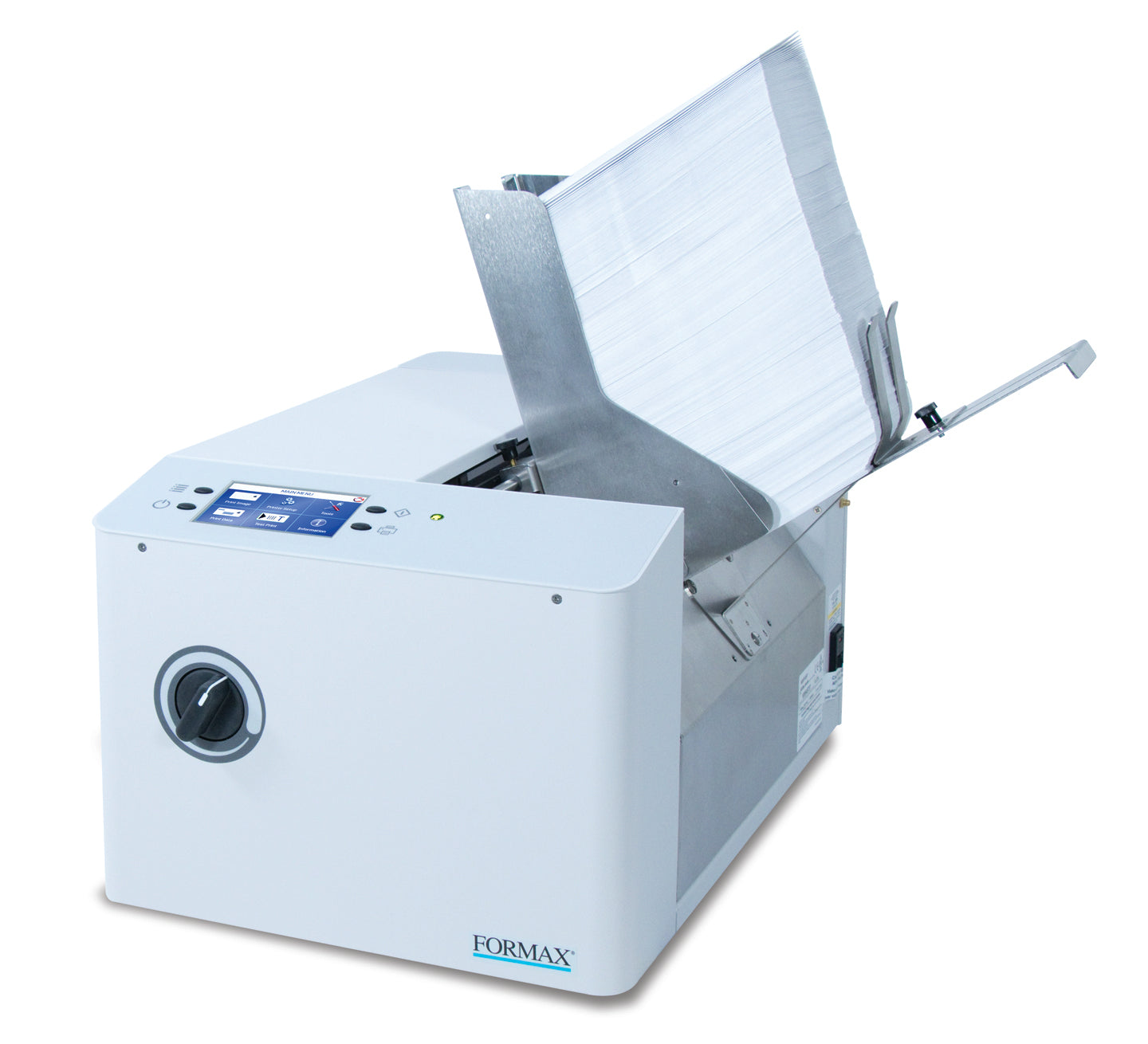

- Integrated feeder holds up to 500 envelopes and can be refilled on the fly, increasing productivity

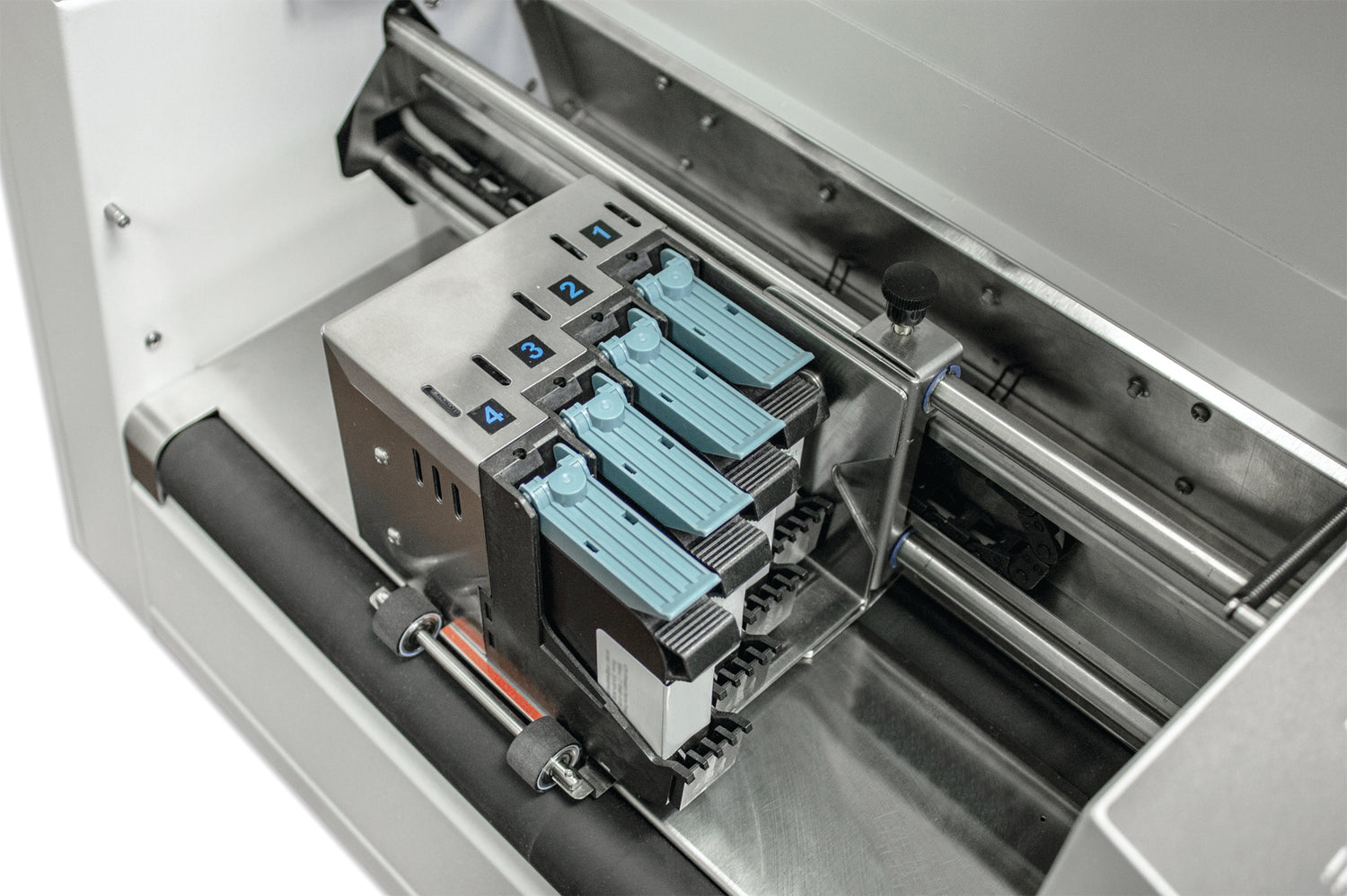

- Fixed print head with 4-pen stitched single-head design using high-capacity thermal inkjet cartridges for efficient, one-pass printing
- Versatile printing capabilities with an image area up to 2" H x 15" L and adjustable vertical print range up to 10.75"
- Job memory up to 16GB for storing and recalling common print jobs, streamlining repetitive tasks
- On-screen ink monitoring for both percentage used and approximate pieces remaining, ensuring uninterrupted operation
- USB 3.0 and LAN connectivity for seamless integration with existing systems
- TrueType font compatibility and spot color options (blue, red, green, invisible) for enhanced design flexibility
- Ability to print on various coated and uncoated paper stocks, including UV paper, for diverse applications
- Batch, job, and lifetime counters for accurate tracking and reporting of print jobs
- Optional 3-foot conveyor stacker available for efficient handling of printed materials
- Ideal for schools, small offices, churches, associations, and entry-level mailers seeking a durable, affordable, and intuitive addressing solution
| Print Technology | Thermal inkjet, 4 high-capacity cartridges* |
| Addressing Speed | Up to 22,000 #10 envelopes/hour |
| Up to 30,000 postcards/hour | |
| Print Quality | Up to 600 x 600 DPI |
| Imaging Area | Up to 2” H x 15” L (51 x 381mm) |
| Material Size | Min: 5” L x 3” W (127 x 76mm) |
| Max: 15” L x 13.5” W (381 x 343mm) | |
| Material Thickness | Up to 6.3mm / 1/4” |
| Duty Cycle | Up to 500,000 per month |
| Memory | Up to 16GB |
| Print Head Layout | 4 pen stitched design |
| Fonts | All True Type fonts available on PC |
| Feeder Capacity | Up to 500 #10 envelopes |
| Print Orientation | Right to left |
| Software | Driver for Windows 7 and higher |
| PC Interface | USB 3.0, Ethernet |
| Dimensions | 23” L x 22” D x 19” H (58 x 56 x 48cm) |
| Weight | 60lbs (27kg) |
| Power | 115VAC 50/60 Hz |
Product Description:
Elevate your mailing efficiency with the Formax AP2 Monochrome Digital Address Printer, a powerhouse that transforms the mundane task of addressing envelopes into a streamlined, professional process. This compact yet robust machine harnesses the precision of thermal inkjet technology to deliver crisp, high-quality prints at an astounding rate of up to 22,000 envelopes per hour. Whether you're managing a small office, running a school administration, or coordinating church communications, the AP2 adapts to your needs with its versatile printing capabilities and user-friendly interface.
At the heart of the AP2's appeal is its ability to blend speed with customization. The 4.5" color touchscreen serves as your command center, allowing you to store and recall up to 16GB of common print jobs, ensuring consistency across your mailings. With variable print resolutions up to 600 dpi, your addresses and logos will stand out with crystal clarity on a variety of paper stocks. The integrated feeder, capable of holding 500 envelopes, minimizes downtime and keeps your workflow smooth. Perhaps most impressively, the AP2's fixed print head, utilizing four high-capacity inkjet cartridges, can produce an image area up to 2" x 15", giving you ample space for creativity in your mail designs. From on-screen ink monitoring to USB 3.0/LAN connectivity, every feature of the AP2 is engineered to make your mailing process more efficient, accurate, and professional.
