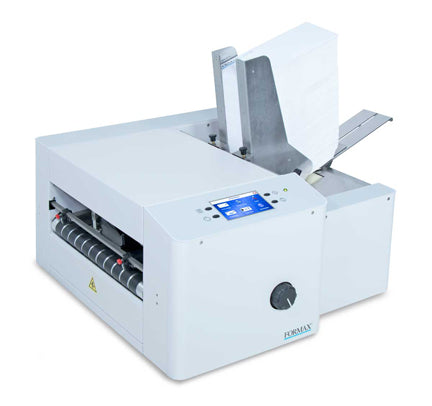

Formax AP3 Monochrome Digital Address Printer
Spec Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Maintenance / Parts Manual: View PDF File
✓ 600 DPI print resolution
✓ 4.5" color touchscreen interface
✓ 16GB job memory storage
✓ 500-envelope integrated feeder
✓ Dual 3-pen print heads
✓ 3" x 17" maximum print area
✓ Handles materials up to 3/8" thick
✓ On-screen ink monitoring
✓ USB 3.0 and LAN connectivity
✓ TrueType font compatibility
✓ Spot color printing capability
✓ Batch, job, and lifetime counters
✓ Prints on coated and uncoated stocks
✓ Optional 3-foot conveyor stacker
- High-speed printing capability, processing up to 26,000 #10 envelopes per hour with variable print resolutions up to 600 DPI for sharp, professional output.

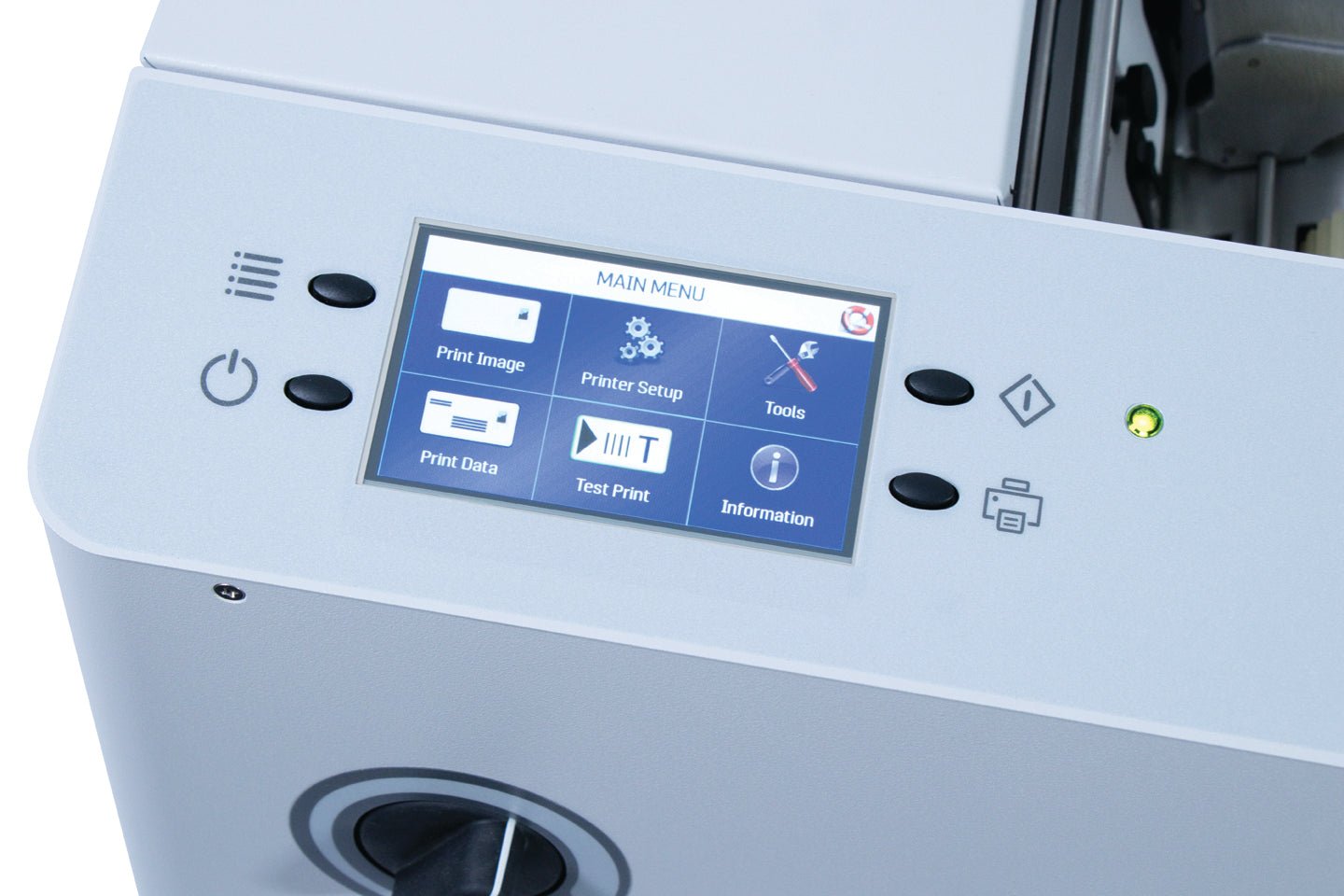

- User-friendly 4.5" color touchscreen with adjustable backlight, offering full control of functions and storage for up to 16GB of common print jobs.

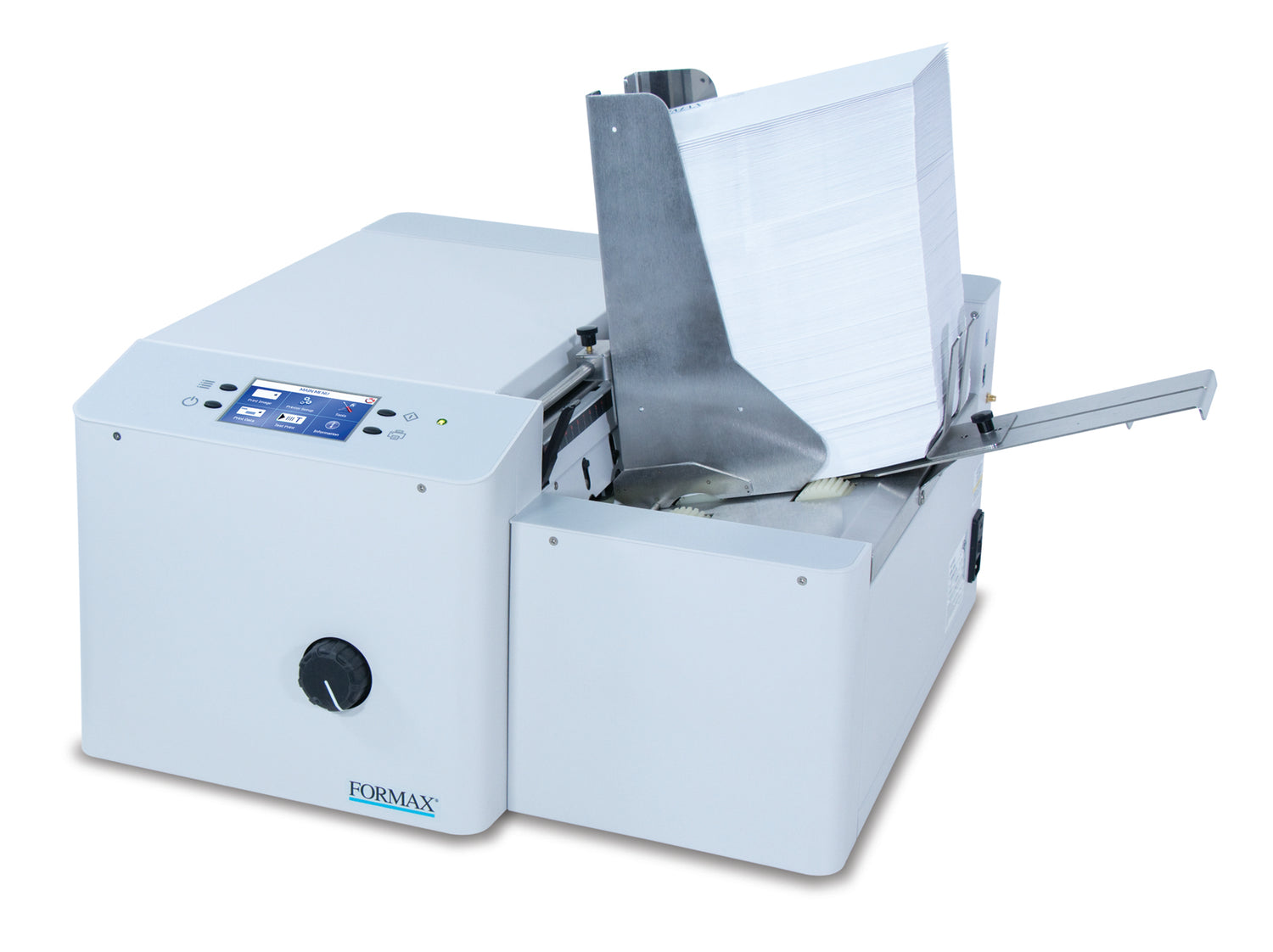

- Versatile integrated feeder that holds up to 500 #10 envelopes and handles materials up to 3/8" thick, accommodating various mailing needs.

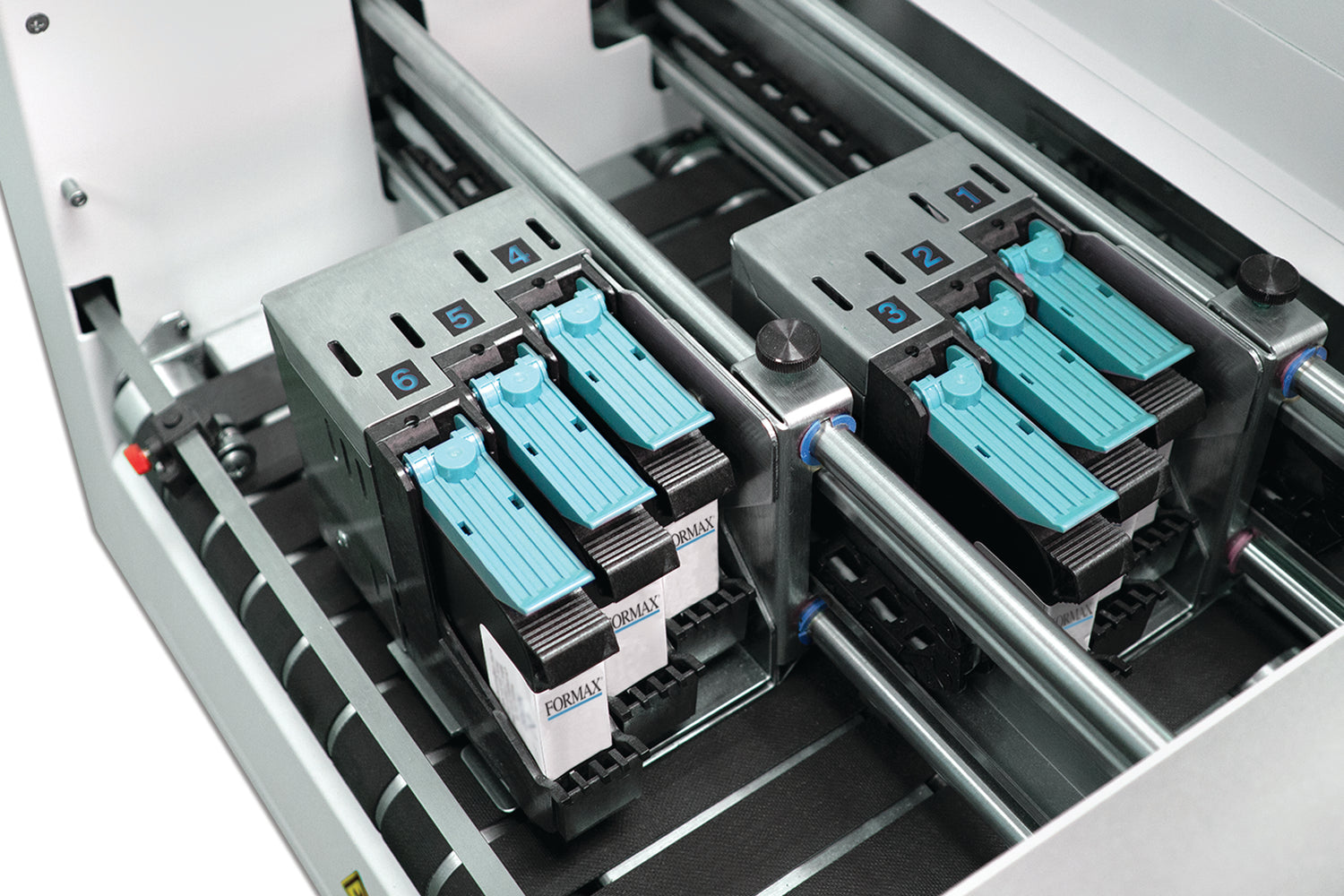

- Dual independent print heads with 6 thermal inkjet cartridges, producing an image area up to 3" x 17" with adjustable vertical print range up to 11".
- Compatible with a wide range of stocks, including coated and uncoated media, UV coated stock, and ability to print using various ink types.
- Advanced features including on-screen ink monitoring, USB 3.0/LAN connectivity, TrueType font compatibility, and spot color capability.
- Convenient batch, job, and lifetime counters for efficient tracking and management of print jobs.
- Optional 3-foot conveyor stacker available for easy handling of printed materials.
- Ideal for mid-range mailers, quick-print operations, large organizations, schools, and universities requiring a balance of speed and print quality.

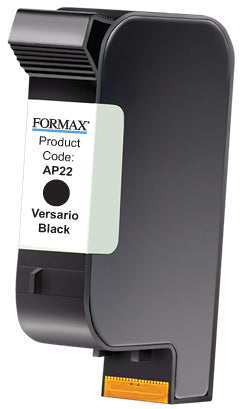

| Print Technology | Thermal inkjet, 6 high-capacity cartridges* |
| Addressing Speed | Up to 26,000 #10 envelopes/hour |
| Up to 34,000 postcards/hour | |
| Print Quality | Up to 600 x 600 DPI |
| Imaging Area | Up to 3” H x 17” L (76 x 432mm) |
| Material Size | Min: 5” L x 3” W (127 x 76mm) |
| Max: 15” L x 13.5” W (381 x 343mm) | |
| Material Thickness | Up to 9.5mm / 3/8” |
| Duty Cycle | Up to 1,000,000 per month |
| Memory | Up to 16GB |
| Print Head Layout | 3-pen stitched + 3-pen stitched design |
| Fonts | All True Type fonts available on PC |
| Feeder Capacity | Up to 500 #10 envelopes |
| Print Orientation | Right to left |
| Software Driver | for Windows 7 and higher |
| PC Interface | USB 3.0, Ethernet |
| Dimensions | 29” L x 23” D x 21” H (74 x 58 x 53cm) |
| Weight | 80lbs (36kg) |
| Power | 115VAC 50/60 Hz |
Product Description:
The Formax AP3 Monochrome Digital Address Printer revolutionizes on-demand printing for businesses of all sizes. This powerhouse combines lightning-fast speed with precision, churning out up to 26,000 envelopes per hour at resolutions reaching 600 DPI. Whether you're managing a university mailing system or running a high-volume print operation, the AP3's versatility shines through its ability to handle various materials, including UV-coated stock, up to 3/8" thick.
At the heart of the AP3 lies a user-friendly 4.5" color touchscreen, granting effortless control over its myriad functions. With 16GB of job memory, recurring print tasks become a breeze, saving valuable time and reducing errors. The dual independent print heads, each sporting three pens, work in harmony to create expansive image areas up to 3" x 17", with the flexibility to adjust vertically up to 11". This adaptability, coupled with TrueType font compatibility and spot color options, empowers users to craft professional, eye-catching prints tailored to their exact specifications. The AP3's on-screen ink monitoring system and robust connectivity options further streamline workflow, making it an indispensable tool for efficient, high-quality address printing in today's fast-paced business environment.
