Cut-True DDC50 Automatic Digital Die Cutter
Spec Sheet: View PDF File
✓ All-digital production, no costly dies
✓ Up to 47"/second cutting speed
✓ QR code recognition for mixed jobs
✓ Dual-action cutting/creasing head
✓ Up to 750gf cut/crease force
✓ 13" x 27.5" maximum cutting area
✓ Handles media up to 350 microns thick
✓ High-capacity 1,000 sheet infeed tray
✓ Vacuum belt feeding system
✓ 7" touchscreen control panel
✓ Cut-True Pro Production Studio Software

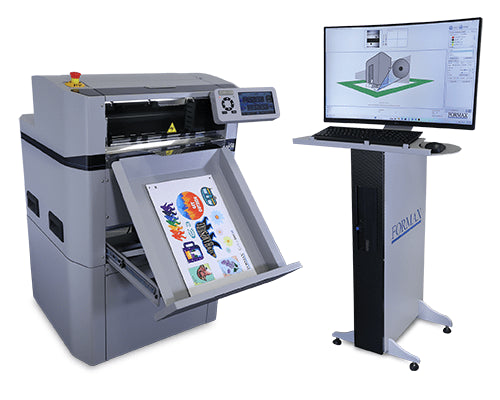

✓ PC workstation with 32" curved monitor
✓ Adobe Illustrator integration
✓ High-speed CCD camera registration
✓ Compact footprint with mobile stand
- All-digital production eliminates the need for costly traditional dies
- Die-cutting, kiss-cutting, creasing, and perforating capabilities in one versatile system
- Dual-action cutting/creasing head applies up to 750gf individually for precise cutting and creasing
- QR Code recognition automatically processes mixed jobs in a single stack
- High-speed cutting at up to 47 inches per second (1,060mm/second)
- High-capacity vacuum belt feeder holds up to 1,000 sheets of 20# bond letter
- Cut-True Pro Production Studio Software included with template maker and job library
- Software integrates easily with Adobe Illustrator for seamless design-to-production workflow
- PC workstation with stand and 32" curved monitor included for enhanced versatility

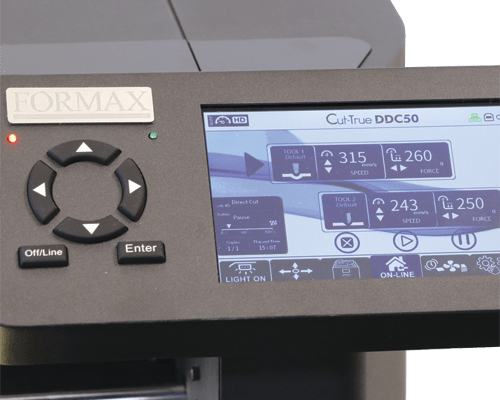

- 7-inch touchscreen control panel pivots to various angles for user convenience
- High-speed CCD camera registration for precision alignment on every cut
- Handles media from 140-350 microns thick with maximum cutting area of 13" x 27.5"
- Supports standard media sizes: 8.5"x11", 11"x17", 12"x18", 13"x19"
- Retention tags hold cut items in sheet for easy handling
- Automatic air blade and automatic jog function for reliable feeding
- Space-saving integrated media catch tray folds away when not in use
- All-metal stand on casters for mobility and durability
- Revolutionary cutting strip for cut-through, creasing, and kiss cutting applications
| Capabilities | Die-Cut (with retention tags), Kiss-Cut, Crease, Perforate |
| Standard Media Size | 8.5"x11", 11"x17", 12"x18", 13"x19" |
| Media Size | Minimum: 7" x 13.4" |
| Maximum: 13.4" x 28" | |
| Maximum Cutting Area | 13" x 27.5" |
| Media Thickness | .0055" - .013" (140-350 microns) |
| Cut/Crease Force | 750gf Max 350 micron |
| Maximum Speed | Up to 47"/second (1,060mm/second) |
| Infeed Tray Capacity | Up to 3.3" high |
| Up to 1,000 sheets 20# Bond Letter | |
| Feeding System | Vacuum belt feeder |
| Weight | Cutter w/stand: 300 lbs (136kg) |
| Workstation w/stand: 71 lbs (32kg) | |
| Dimensions | Cutter: 33" W x 34" D x 49" H |
| (828 x 851 x 1230mm) | |
| Workstation: 29" W x 21" D x 56" H | |
| (737 x 533 x 1422mm) | |
| Power Supply | 100-240V 50/60Hz |
Product Description:
This automatic high-speed die cutter creates on-demand custom packaging, advertising displays, kiss-cut labels, and more with precision and easy setup. Whether you're producing intricate product boxes, eye-catching point-of-sale materials, or professional label sheets, the Cut-True DDC50 delivers unmatched versatility and accuracy in the mid-production market.
Fully automatic with QR Code recognition, the Cut-True DDC50 processes mixed jobs in a single stack, transforming cut sheets up to 350 microns thick into virtually any shape imaginable. Its dual-action cutting/creasing head applies up to 750gf of force individually for both cutting and creasing tools, while the high-speed CCD camera registration ensures pinpoint precision on every piece. The system includes a high-capacity vacuum belt feeder holding up to 1,000 sheets, Cut-True Pro Production Studio Software that integrates seamlessly with Adobe Illustrator, a 7-inch touchscreen control panel, and a freestanding PC workstation with 32" curved monitor. With cutting speeds up to 47 inches per second and an all-digital workflow that eliminates costly dies, the Cut-True DDC50 sets the standard for on-demand print finishing.
