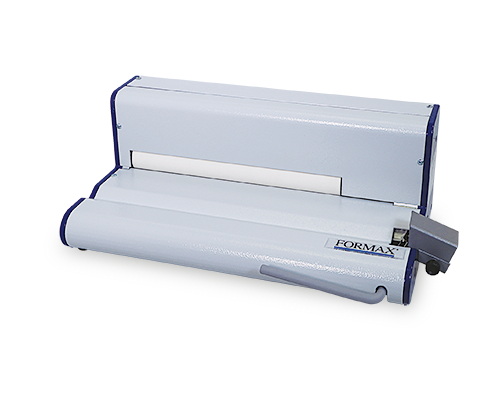

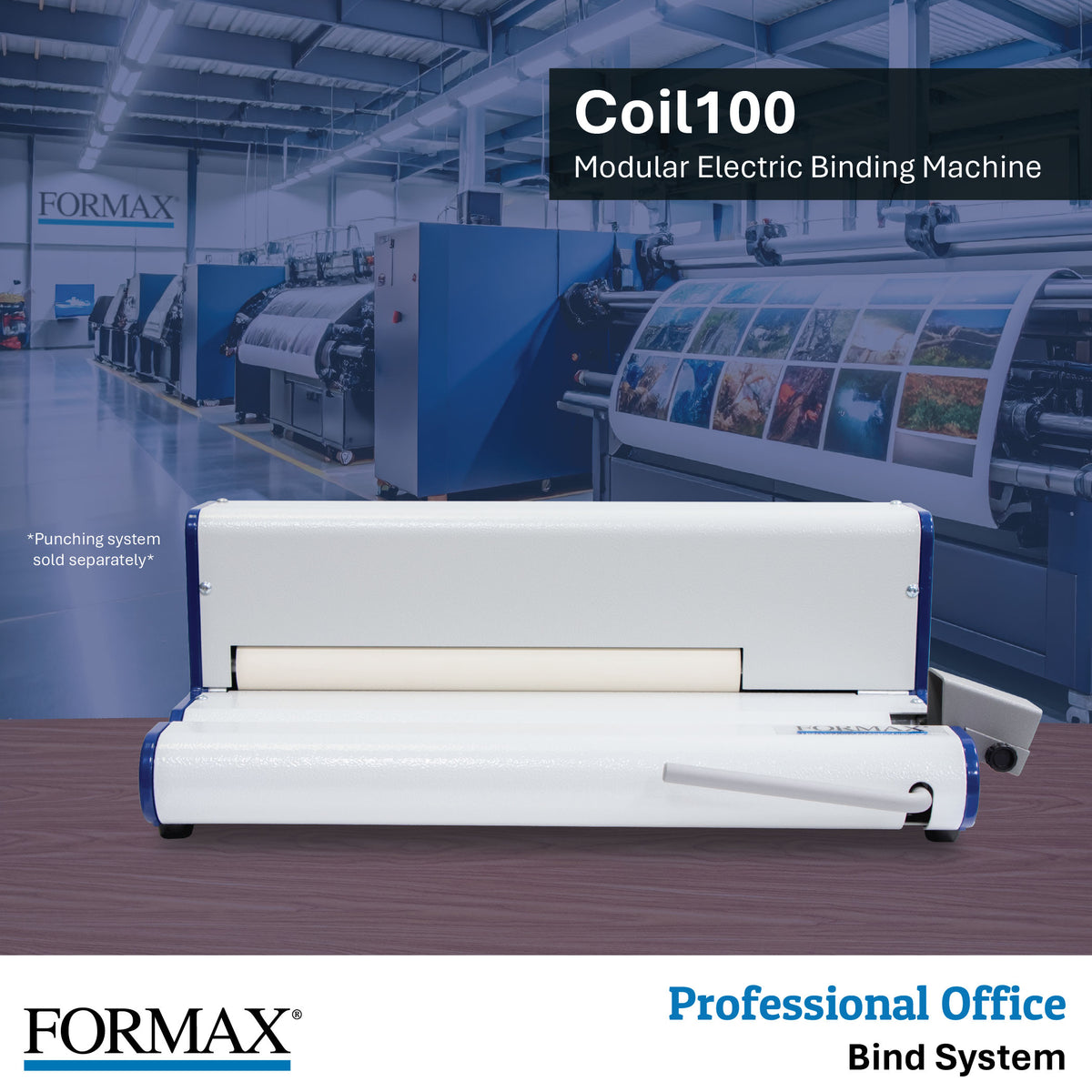

Formax Coil100 Electric Coil Binding & Crimping Machine
Spec Sheet: View PDF File
✓ Electric rubber roller coil inserter
✓ Integrated manual coil cutter and crimper
✓ 45-degree coil crimp finish
✓ Binds up to 80 books per hour
✓ Coil diameters from 1/4 inch to 3/4 inch
✓ Binding width up to 13.4 inches
✓ Automatic roller stop for operator safety
✓ Stand-alone or modular use with Punch100
✓ Rugged all-metal construction
✓ Quick, quiet operation
✓ 115V, 60Hz, 90W power supply
- Compact electric coil inserter for binding and finishing booklets with spiral plastic coil

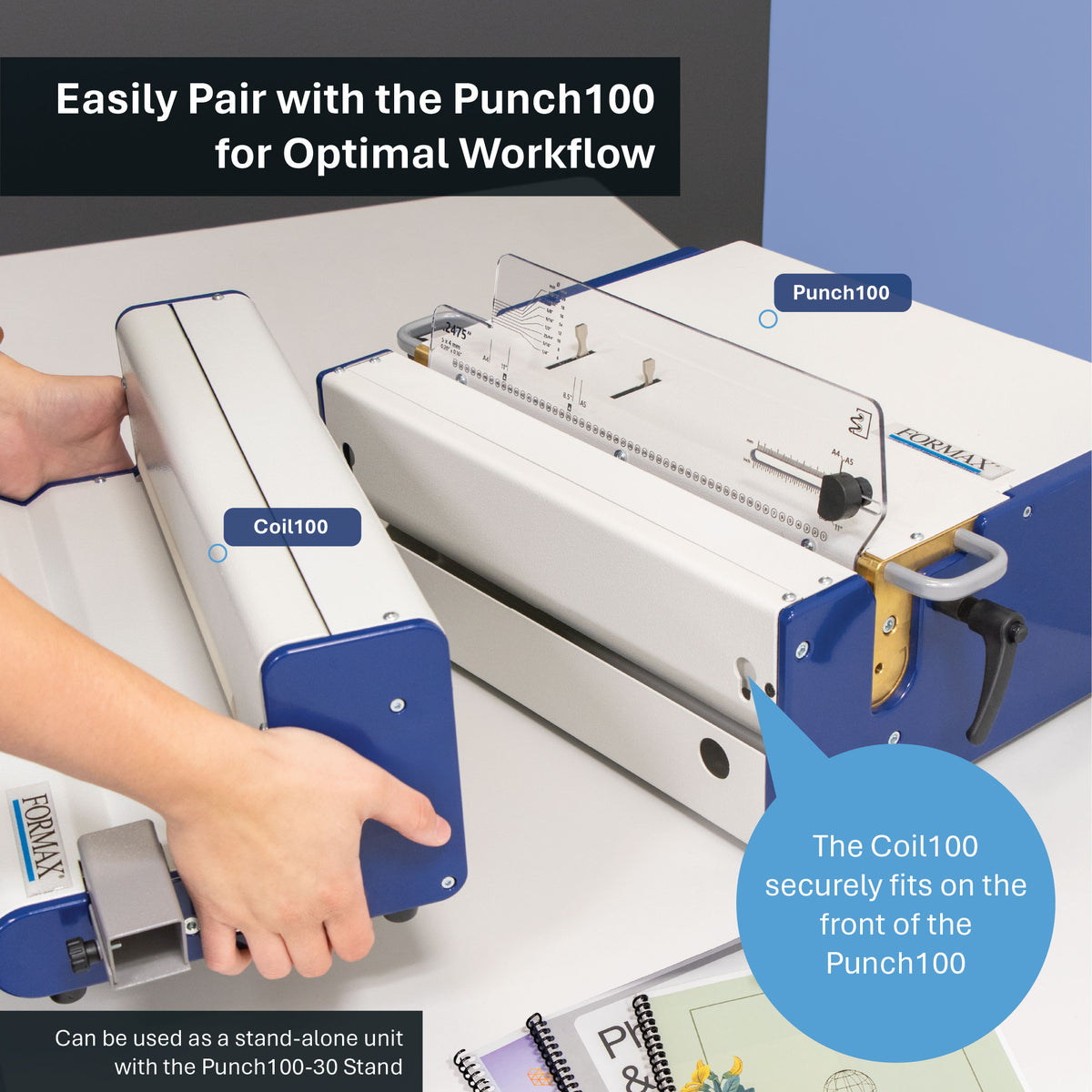

- Modular design works on its own or attaches to the front of the Formax Punch100 with integrated mounting pins for a complete punch and bind system
- Electric rubber roller threads the coil through the document quickly and effectively
- Automatic roller stop feature for operator safety
- Integrated manual coil cutting and crimping unit crimps the plastic coil at a 45-degree angle for a clean finish
- Binds up to 80 books per hour using coil diameters from 1/4 inch to 3/4 inch (6 to 20mm)
- Binding width from 0.39 inch to 13.4 inches (10 to 340mm) and binding thickness from 0.04 inch to 0.62 inch (1 to 16mm)
- Plastic coil bound documents open completely flat or fold back on themselves for convenient viewing
- 0.25 inch (6mm) coil pitch

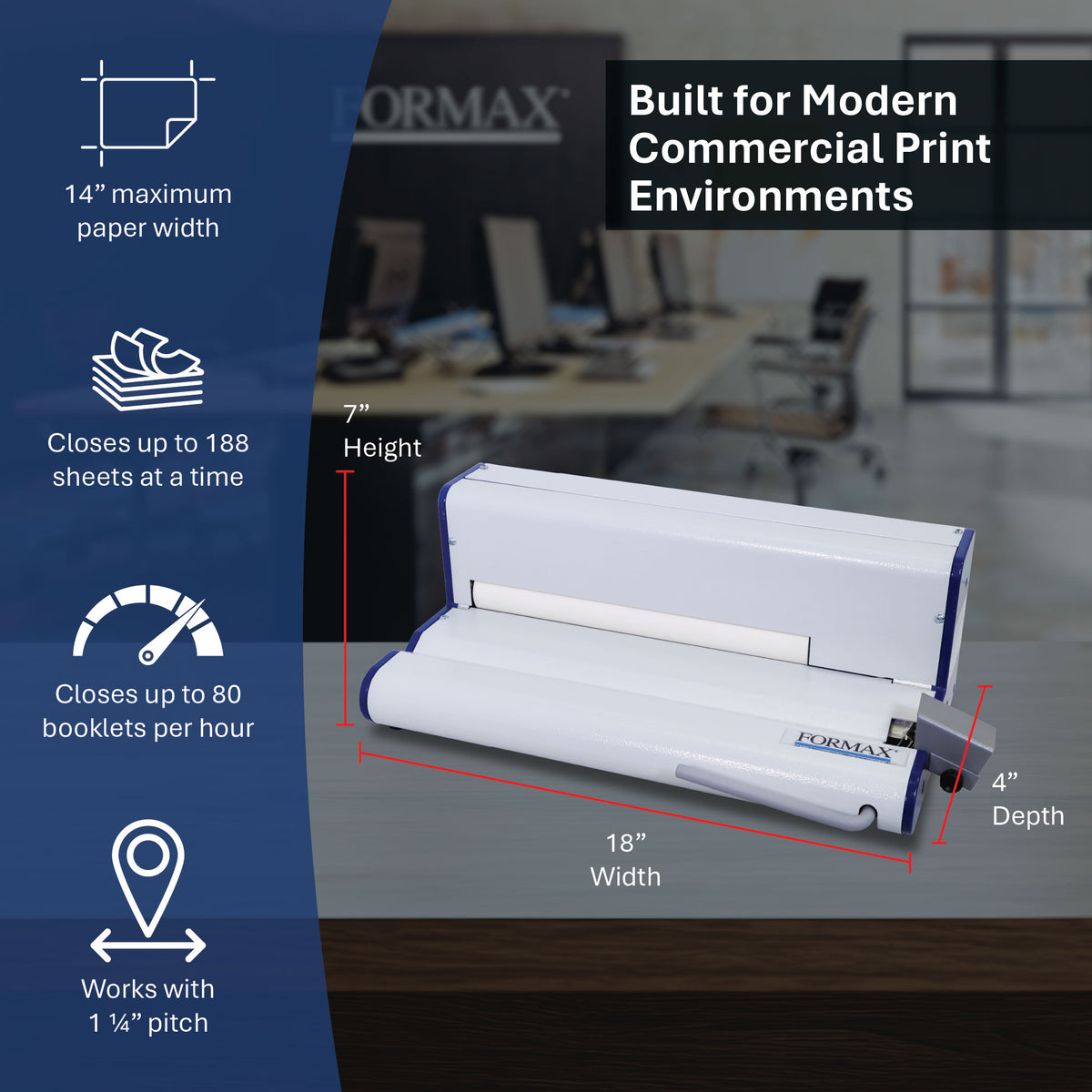

- Rugged all-metal construction with quick, quiet operation in a compact 17.7 x 4 x 6.3 inch footprint at 21 lbs
| Binding Operation | Electric insert, manual crimp & cut |
| Pitch | 0.25 inch (6mm) |
| Binding Thickness | 0.04 inch - 0.62 inch (1 - 16mm) |
| Min. Binding Width | 0.39 inch (10mm) |
| Max. Binding Width | 13.4 inches (340mm) |
| Coil Diameter | 1/4 inch - 3/4 inch (6 - 20mm) |
| Binding Speed | Up to 80 booklets/hr |
| Dimensions | 17.7 x 4 x 6.3 inches (450 x 100 x 160mm) |
| Weight | 21 lbs (9.5kg) |
| Power | 115V, 60Hz, 90W |
Product Description:
The Formax Coil100 Electric Coil Binding and Crimping Machine is a compact electric coil inserter for binding and finishing booklets with spiral plastic coil. Its modular design allows it to be used on its own or attached to the Formax Punch100 Electric Punch for a complete punch and bind system. The easy-to-use electric rubber roller threads the coil through the document quickly and effectively, binding up to 80 books per hour with coil diameters from 1/4 inch to 3/4 inch (6 to 20mm).

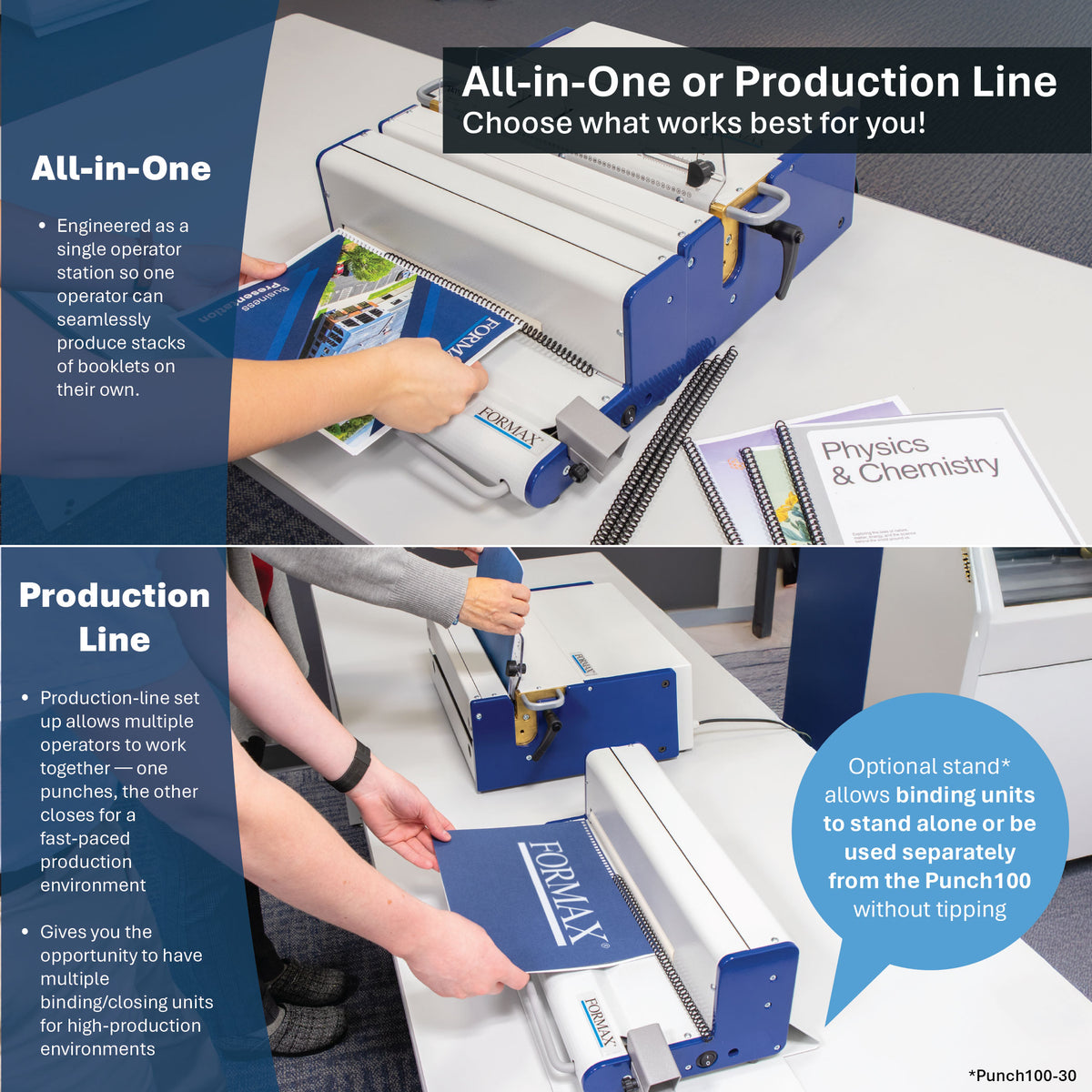

The integrated manual coil cutting and crimping unit finishes each document by crimping the plastic coil at a 45-degree angle, and the roller includes an automatic stop feature for operator safety. Plastic coils are durable and allow documents to be opened completely flat or folded back on themselves for convenient viewing. For a combined system, the Coil100 attaches to the front of the Punch100 using integrated mounting pins; for stand-alone use, the optional Punch100-30 support stand is required. With rugged all-metal construction and quick, quiet operation, the Coil100 is a practical coil binding solution for offices and schools that want a compact, flexible setup.
