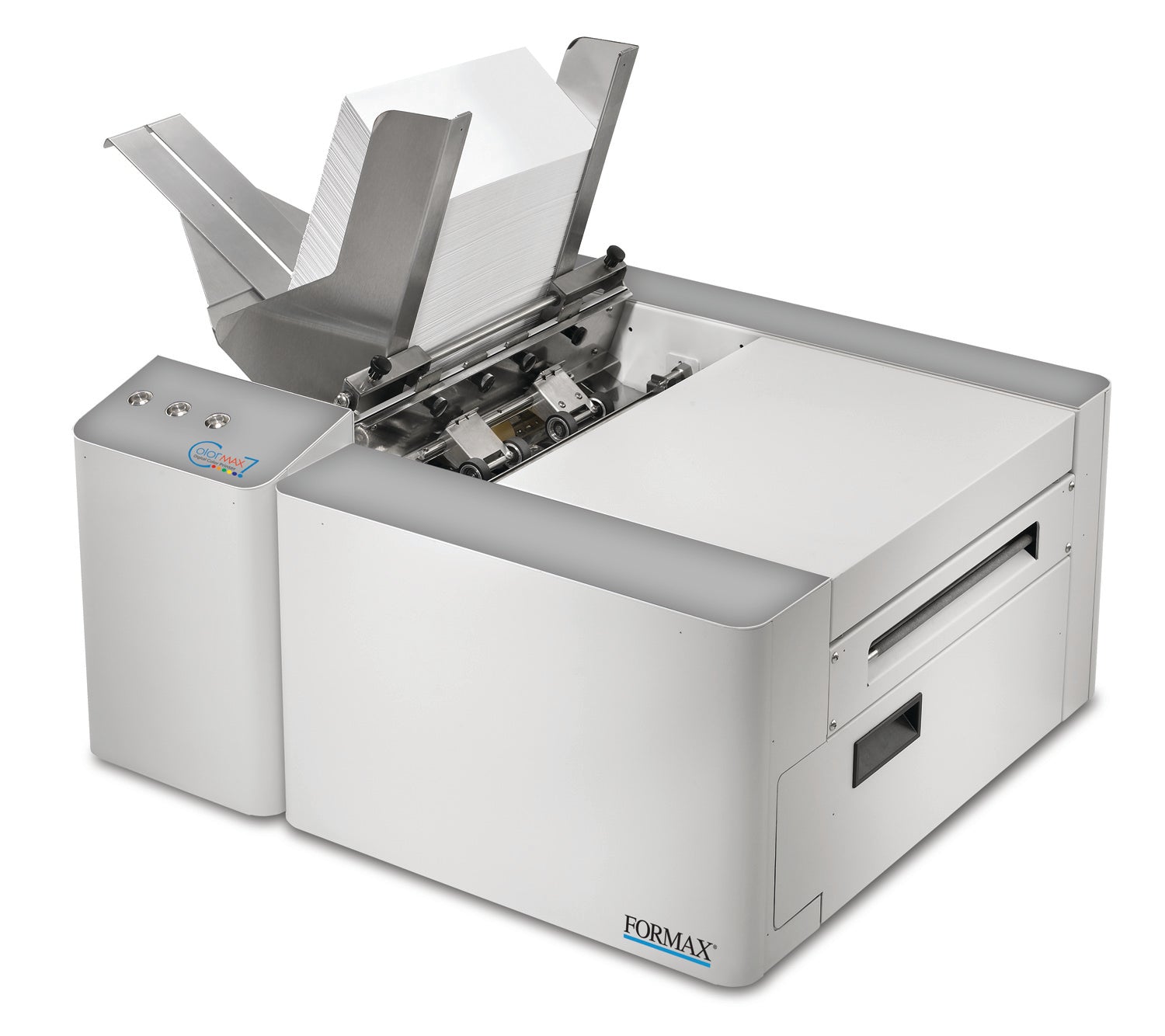

Formax ColorMax7 Digital Color Printer
Spec Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Installation Manual: View PDF File
✓ Memjet® thermal inkjet technology
✓ 1600 x 1600 dpi resolution
✓ Full-bleed capability up to 8.5" wide
✓ 16.8 million color output
✓ Prints on various media types
✓ High-capacity ink tanks
✓ Automated print head maintenance
✓ USB and Ethernet connectivity
✓ TruType and Postscript font compatibility
✓ 30 million piece duty cycle
✓ Handles media up to 0.5 mm thick
✓ Windows-based PC compatibility
✓ Electronic firmware updates
- Revolutionary Memjet® inkjet technology delivers full-color CMYK printing at three times the speed of traditional printers, with one-third the per-page cost
- Impressive print quality with resolutions up to 1600 x 1600 dpi and the ability to produce up to 16.8 million colors
- Versatile media handling capabilities, accommodating various paper stocks and sizes with full-bleed printing up to 8.5" wide
- High-speed performance, printing up to 7,500 #10 envelopes per hour
- Thermal inkjet technology ensures safe printing on pre-printed and windowed envelopes without damage
- Fixed 8.77" print head spans the entire printing surface, eliminating moving parts for increased reliability and reduced noise
- High-capacity ink tanks (Cyan 250ml, Magenta 250ml, Yellow 250ml, Black 500ml) for extended print runs
- Automated print head cleaning system maintains optimal print quality throughout jobs

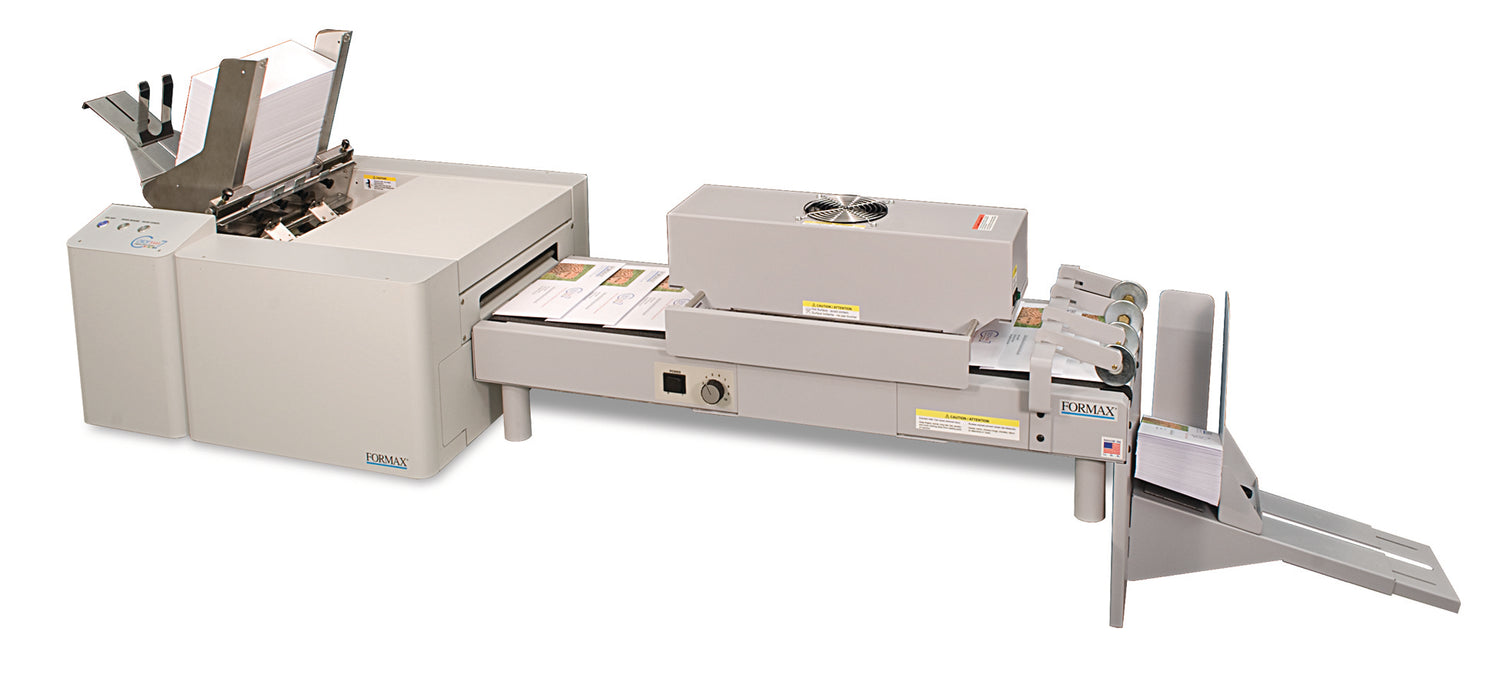

- Built-in top-load feeder and pressure roller transport system for efficient media handling
- Supports TruType and Postscript system fonts for versatile design options
- USB and ethernet connectivity for easy integration into existing workflows
- Electronic firmware updates via PC connection for ongoing performance improvements
- Ideal for printing letterhead, invitations, postage, barcodes, envelopes, and invoices with professional-quality results
| Speed, page printing | Up to 3,600 per hour |
| Speed, #10 envelopes | Up to 7,500 per hour |
| Duty Cycle | 30 million pieces or 500,000 per month over a 5-year life cycle |
| Material Size | Min: 3” W x 4.25” L Max: 9.5” W x 17” L |
| Material Thickness | Up to 1/48” (0.5 mm / 430 gsm / 160# cover / 240# index) |
| Print Quality | Up to 1600 x 1600 dpi @ 6 inches per second, up to 1600 x 800 dpi @ 12 ips |
| Print Area | Up to 8.5” x 17” with full bleed capability |
| Ink Tank Capacity | Cyan 250ml, Magenta 250ml, Yellow 250ml, Black 500ml |
| Color Matrix | Up to 16.8 million colors |
| Hardware Required | Windows-based PC, XP and newer |
| Java 6.0 or newer and Microsoft.NET Framework 3.5 must be installed on PC | |
| PC Interface | USB & Ethernet |
| Firmware Update | Electronic firmware update downloads via PC connection |
| Fonts | All available TruType or Postscript system fonts |
| Dimensions | 24” L x 20” W x 18” H With conveyor stacker: 81” L x 20” W x 18” H |
| Weight | 90 lbs |
| Electrical | 100VAC 60Hz / 2A |
Product Description:
Elevate your printing capabilities with the Formax ColorMax7 Digital Color Printer, a revolutionary device that redefines high-speed, high-quality color printing. This state-of-the-art printer harnesses the power of Memjet® technology, featuring a fixed print head with an astounding 70,400 ink nozzles, to deliver vibrant, full-color output at speeds up to 7,500 #10 envelopes per hour. Whether you're producing eye-catching marketing materials, professional correspondence, or intricate graphics, the ColorMax7 ensures every print is a masterpiece with resolutions up to 1600 x 1600 dpi.
The ColorMax7 isn't just about speed and quality; it's a versatile workhorse designed to handle a wide range of media with ease. From letterhead and invitations to barcodes and windowed envelopes, this printer adapts to your needs without compromising on performance. Its thermal inkjet technology allows for safe printing on pre-printed and windowed envelopes, preserving the integrity of your materials. With high-capacity ink tanks and an automated print head maintenance system, the ColorMax7 ensures consistent, superior output throughout extended print runs, making it an indispensable tool for businesses looking to make a lasting impression while maximizing efficiency and minimizing costs.
