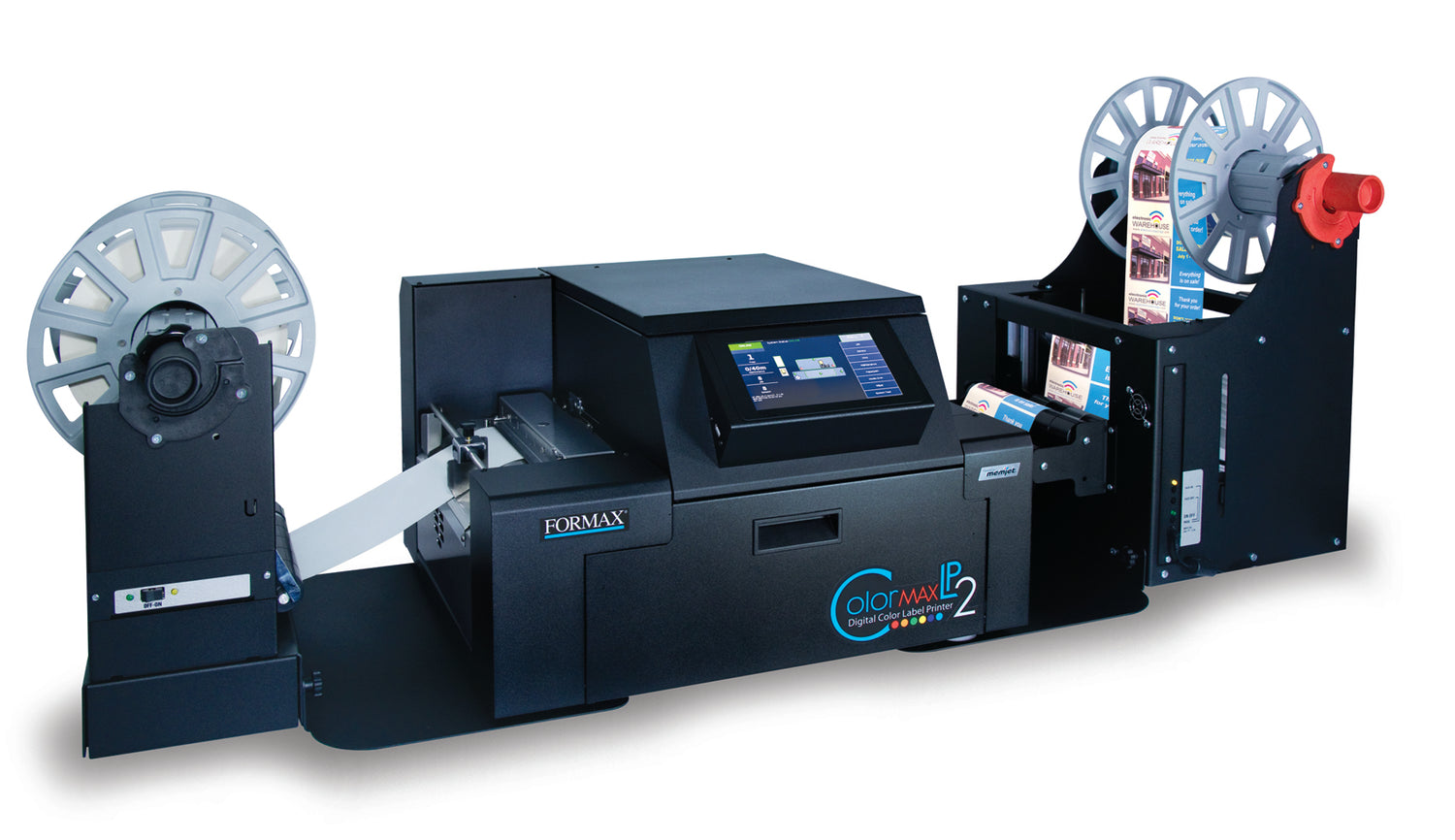

Formax ColorMaxLP2 Digital Color Label Printer
Spec Sheet: View PDF File
User Manual: View PDF File
Maintenance / Parts Manual: View PDF File
Installation Manual: View PDF File
✓ 1600 x 1600 dpi resolution
✓ 7" color touchscreen interface
✓ Memjet thermal inkjet technology
✓ 70,400 nozzle stationary print head
✓ Continuous roll-to-roll printing
✓ Mid-job print head maintenance
✓ Integrated powered cutter
✓ 5 high-capacity ink tanks (CMYKK)
✓ Prints on various label materials
✓ Handles rolls up to 10" diameter
✓ Full bleed capability up to 8.5" wide
✓ Quick start in under 10 seconds
✓ File storage and recall feature
✓ Compatible with Windows 7, 8, and 10
✓ USB 2.0 and TCP/IP connectivity
- High-speed digital color label printer producing vibrant full-color labels at up to 60 feet per minute, ideal for production environments

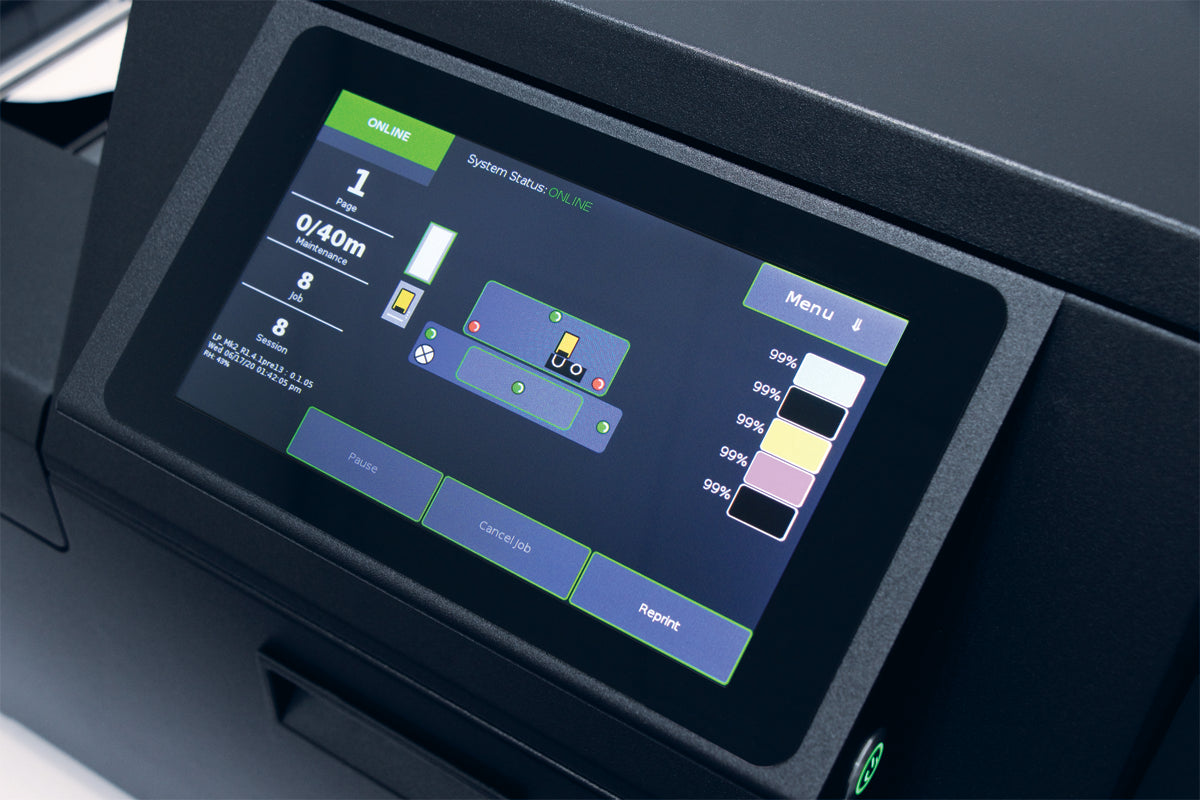

- User-friendly 7" color touchscreen interface for complete control, job storage, and image preview
- Revolutionary print engine design allowing on-the-fly print head maintenance without interrupting print runs
- Industrial-grade all-metal construction for durability and all-day printing capability
- High-speed Unwinder/Rewinder System for continuous roll-to-roll printing, handling rolls up to 10" in diameter
- Integrated cutter for convenient print-and-cut operation on smaller jobs

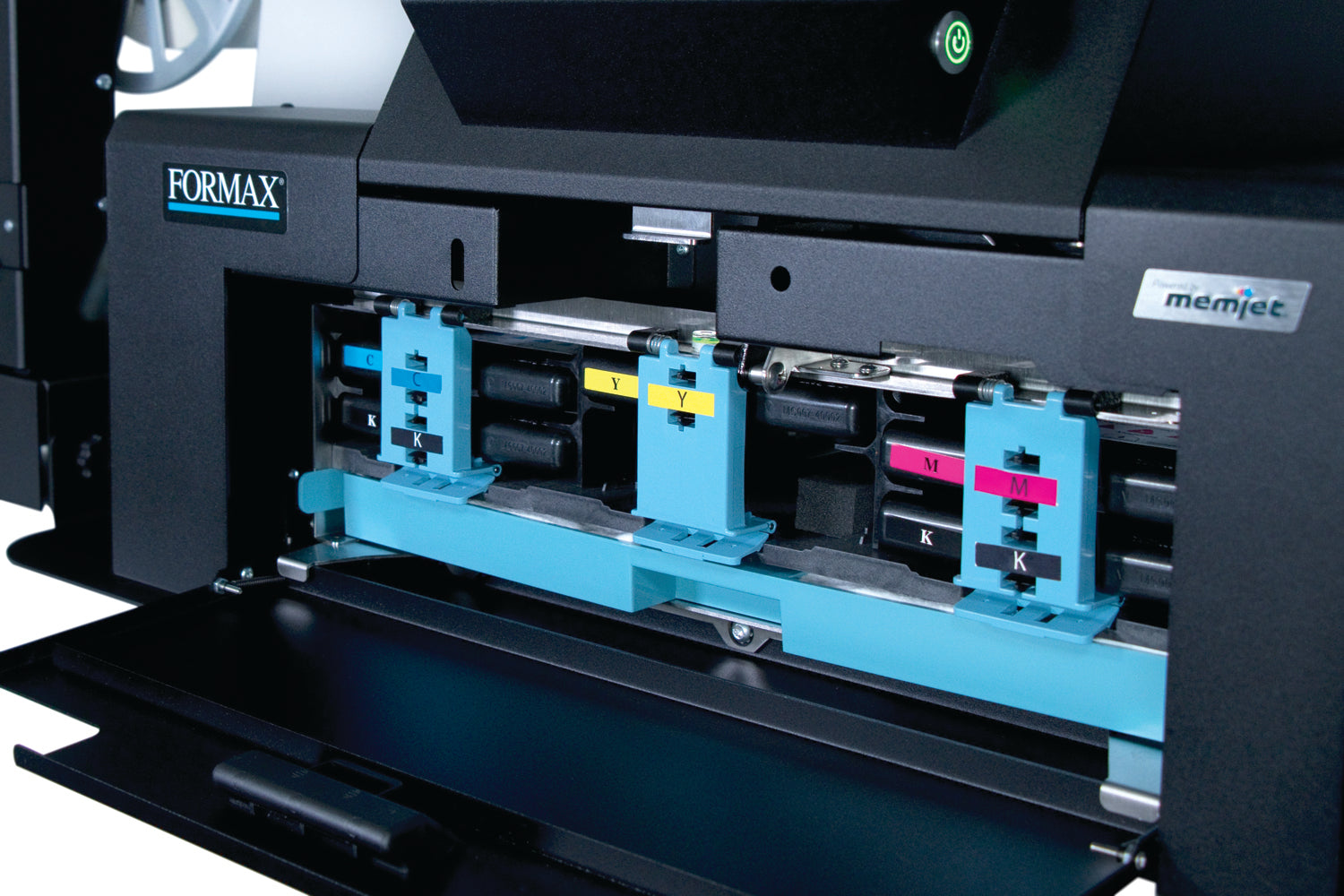

- Five high-capacity 250ml ink tanks for longer uninterrupted print runs and easy front-access replacement

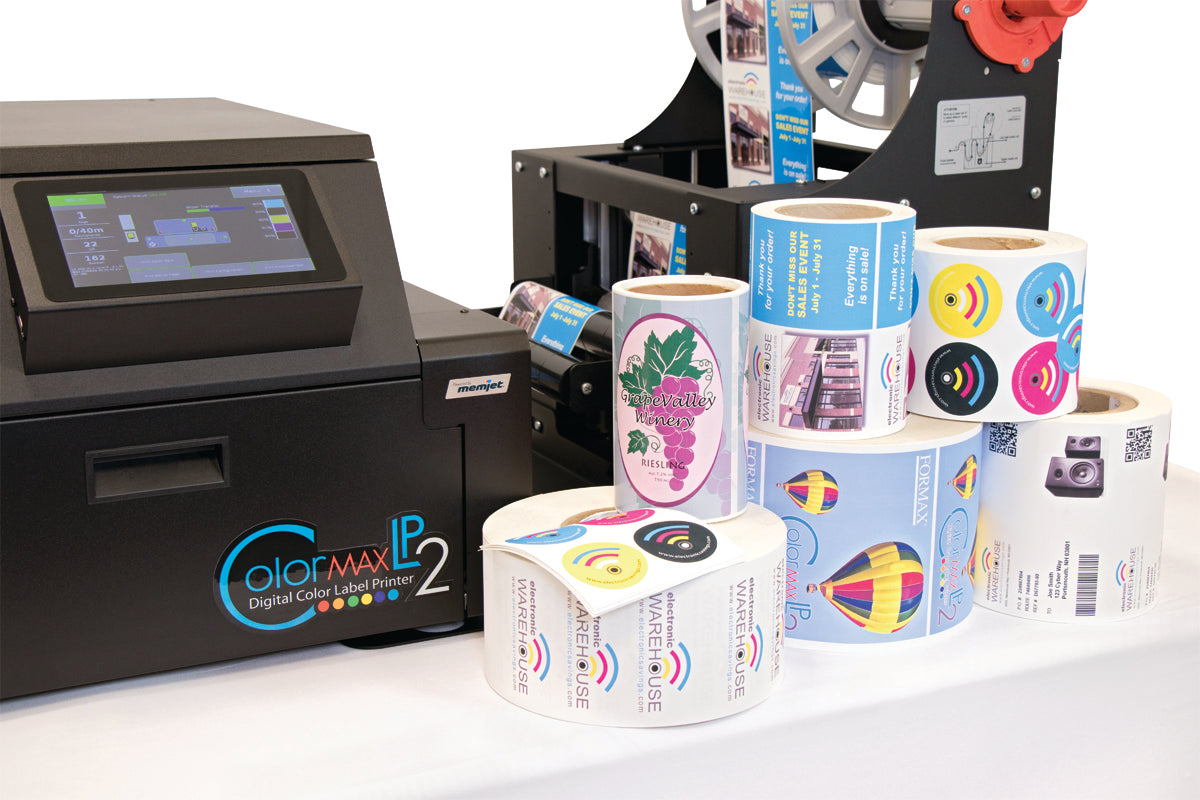

- Versatile printing on various label materials including paper, polyester, polypropylene, and vinyl
- Full bleed capability up to 8.5" wide for edge-to-edge printing
- Advanced thermal inkjet print head with 70,400 nozzles for higher speeds, precision, and lower maintenance costs
- Professional-quality 1600 x 1600 dpi resolution for crisp text, barcodes, and vivid images
- Quick start feature with printing beginning in under 10 seconds
- Ultra-low ink costs with high-capacity CMYKK cartridges
- Flexible operation modes: continuous roll-to-roll for large production runs and integrated cutter for short-run jobs
| Print Speed | Up to 12 inches per second / 60 fpm |
| Label Media Size | Width: 2” - 9” (50.8 - 229mm) Length: 2” - 48” (50.8mm - 1220mm) |
| Label Thickness | Min: 0.005” (0.13mm) Max: 0.01” (0.3mm, including liner) |
| Label Types | Paper, polyester, polypropylene, vinyl |
| Print Resolution | Up to 1600 x 1600 dpi - 1600 x 800 dpi |
| Print Width | Up to 8.5” (216mm) |
| Media Sensors | Gap (movable), continuous, black mark |
| Die-Cut Gap | Min: 0.125” (3.0mm) Max: 0.3” (8.0mm) |
| Black Mark | 3mm wide, 25.4mm long on left |
| Core Diameter | Requires 3” (76.2mm) cardboard core |
| Unwinder/Rewinder | 10” (250mm) outside diameter |
| Cutter | Integrated and powered |
| Ink Tank Capacity | Cyan 250ml, Magenta 250ml, Yellow 250ml, Black 500ml |
| Color Matrix | Up to 16.8 million colors |
| Operating System | Windows 7, 8 and 10 (32 and 64 bit) |
| Interfaces | USB 2.0, TCP/IP (Manual IP configuration or DHCP) |
| Dimensions (printer) | 22.5” W x 14” H x 20.5” D (572 x 356 x 521mm) |
| Dimensions (with Unwind/Rewind System) | 59.5” W x 23” H x 20.5” D (1512 x 585 x 521mm) |
| Weight | 85 lbs (38.5kg) |
| Electrical | AC 110V - 220V, auto-sensing |
Product Description:
Elevate your label printing capabilities with the Formax ColorMaxLP2 Digital Color Label Printer, a powerhouse designed for high-volume production environments. This compact yet robust printer combines lightning-fast speeds of up to 60 feet per minute with stunning 1600 x 1600 dpi resolution, delivering vibrant, professional-quality labels that command attention. The ColorMaxLP2's innovative Memjet thermal inkjet technology, featuring 70,400 nozzles, ensures precise printing with reduced ink consumption and lower maintenance costs.
Experience unparalleled convenience with the ColorMaxLP2's user-friendly 7" touchscreen interface, allowing effortless job storage, preview, and execution. The printer's revolutionary design enables on-the-fly print head maintenance without disrupting the web, maximizing uptime for your production runs. With its high-capacity 250ml ink tanks and front-access door, the ColorMaxLP2 minimizes interruptions and streamlines ink replacement. Whether you're printing on paper, polyester, polypropylene, or vinyl, this versatile printer handles a wide range of label sizes and stocks, making it the ideal solution for businesses seeking to bring their label production in-house and gain greater control over their branding and packaging needs.
