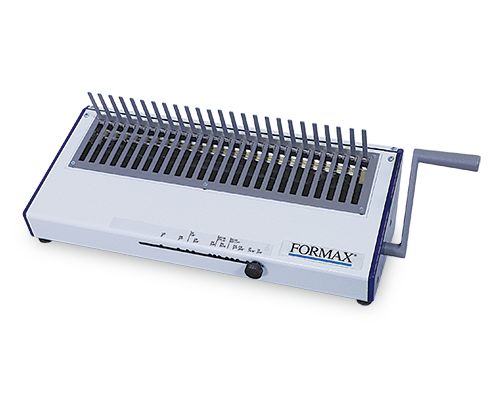

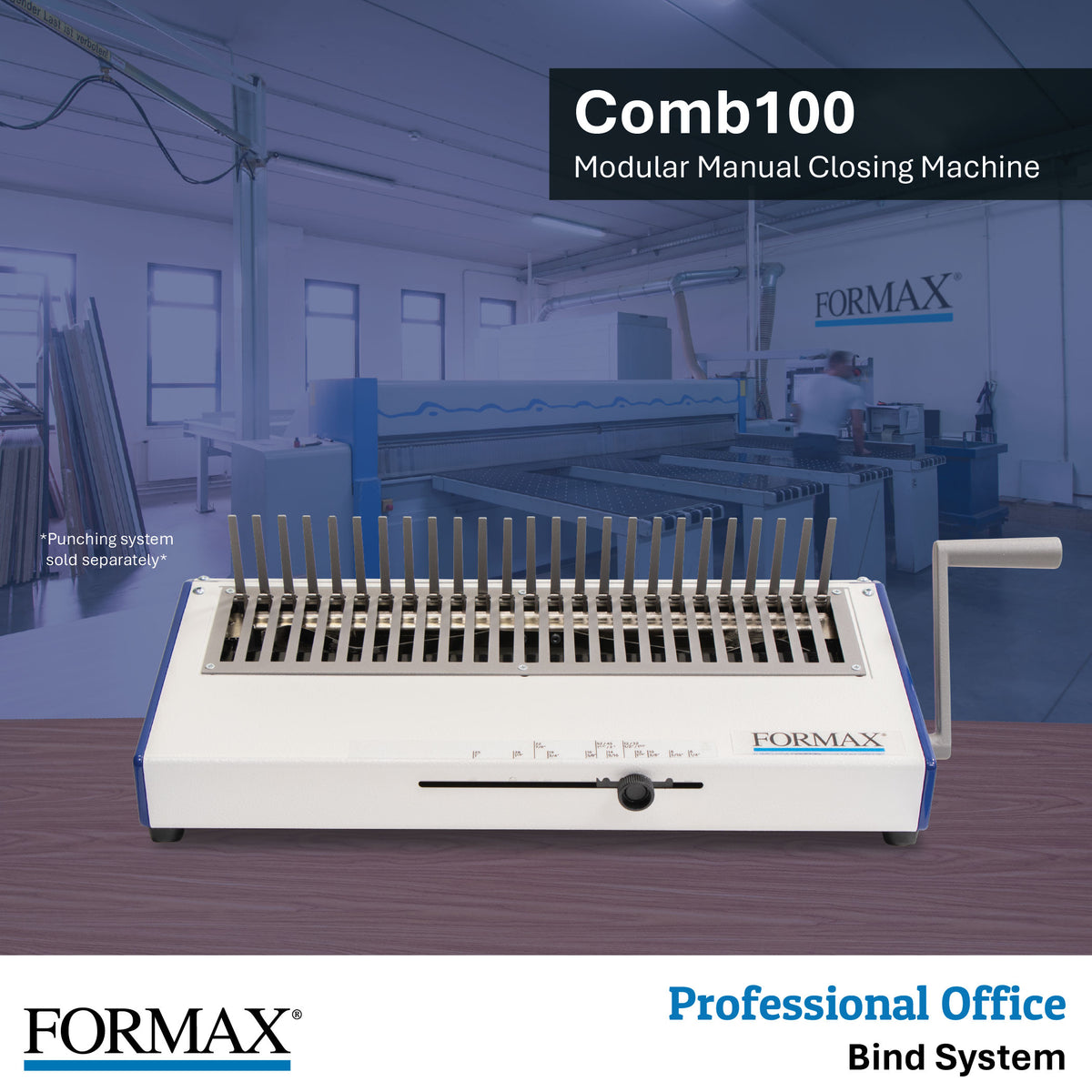

Formax Comb100 Manual Comb Binding Machine
Spec Sheet: View PDF File
✓ Lever-activated comb opening and closing
✓ Binds booklets up to 480 sheets
✓ Binding speed up to 250 booklets per hour
✓ Comb sizes from 1/4 inch to 2 inches
✓ Binding width up to 13.8 inches
✓ Quick-adjust comb dimensions
✓ Precision closure control
✓ Stand-alone or modular use with Punch100
✓ Heavy-duty all-metal construction
✓ Simple, quiet operation
✓ Compact, lightweight design
- Compact manual comb binding machine that produces bound documents quickly and easily
- Modular design works on its own or attaches to the front of the Formax Punch100 with integrated mounting pins for a complete punch and bind system
- Lever-activated comb open and close mechanism provides a secure bind on booklets up to 480 sheets
- Binds up to 250 booklets per hour using comb sizes from 1/4 inch to 2 inches (6 to 52mm)
- Comb binding allows pages to be added or removed without damage to the document or the binding
- Quick-adjust comb dimensions change settings in seconds
- Precision closure control for quick, easy comb opening and closing
- Binding width from 0.39 inch to 13.8 inches (10 to 340mm) and binding thickness from 0.04 inch to 1.96 inches (1 to 50mm)
- US pitch for standard plastic comb bindings
- Heavy-duty all-metal construction with simple, quiet operation in a compact 19.6 x 7.5 x 6.7 inch footprint at 9.5 lbs
| Pitch | US |
| Binding Thickness | 0.04 inch - 1.96 inches (1 - 50mm) |
| Sheets Per Booklet | Up to 480 sheets |
| Min. Binding Width | 0.39 inch (10mm) |
| Max. Binding Width | 13.8 inches (340mm) |
| Comb Size | 1/4 inch - 2 inches (6 - 52mm) |
| Binding Operation | Manual, lever operated |
| Binding Speed | Up to 250 booklets/hr |
| Dimensions | 19.6 x 7.5 x 6.7 inches (500 x 190 x 170mm) |
| Weight | 9.5 lbs (4.3kg) |
Product Description:
The Formax Comb100 Manual Comb Binding Machine is a compact comb binder designed to produce bound documents quickly and easily. Its modular design allows it to be used on its own or attached to the Formax Punch100 Electric Punch for a complete punch and bind system. The lever-activated comb open and close mechanism secures booklets up to 480 sheets, and the Comb100 binds up to 250 booklets per hour using comb sizes from 1/4 inch to 2 inches.
With comb bindings, pages can be added or removed without damage to the document or the binding, making the Comb100 useful for documents that need regular updates. Quick-adjust comb dimensions let operators change settings in seconds, and precision closure control provides quick, easy comb opening and closing for booklets of different sizes. For a combined system, the Comb100 attaches to the front of the Punch100 using integrated mounting pins; for stand-alone use, the optional Punch100-30 support stand is required. With heavy-duty all-metal construction and simple, quiet operation, the Comb100 is a practical comb binding solution for offices and schools that want a compact, flexible setup.
Video of Formax Comb100 Manual Comb Binding Machine
