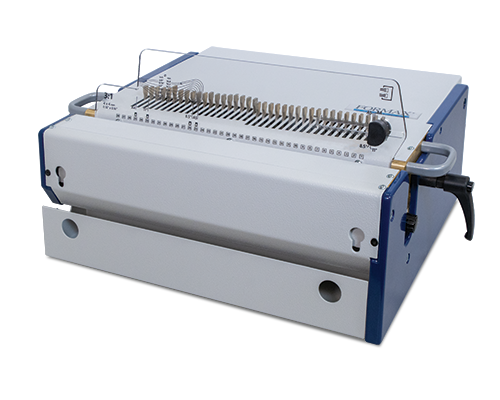

Formax Punch100 Modular Electric Punching System
Spec Sheet: View PDF File
✓ Foot pedal activated punching
✓ Punching speed up to 1,200 sheets per hour
✓ Punches up to 0.137 inch (3.5mm) thick
✓ Punching width up to 13.4 inches
✓ Interchangeable dies for wire, comb, and coil
✓ Tool-free die changes
✓ Precision vertical punching system
✓ Disengageable punch pins
✓ Adjustable depth gauge and variable margin depth
✓ Works with Wire100, Comb100, and Coil100 modules
✓ Easy-access slide-out waste tray
✓ Rugged, compact design
✓ 120V, 60Hz, 250W power supply
- Heavy-duty modular electric punch that works on its own or with the Formax Wire100, Comb100, or Coil100 binding modules

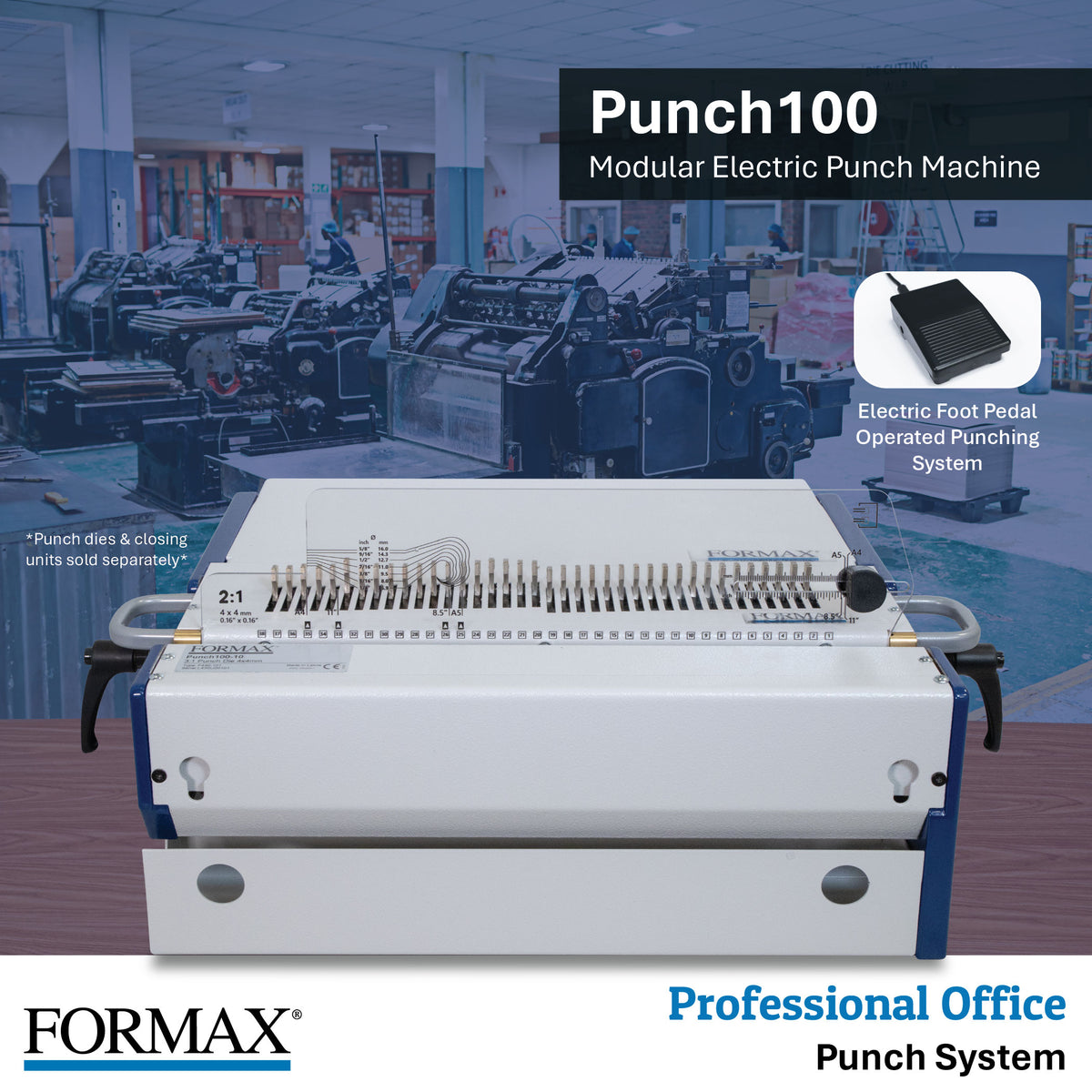

- Convenient foot pedal activation keeps production moving, with punching speeds up to 1,200 sheets per hour
- Precision vertical punching system uses gravity to keep every sheet in place for consistent hole placement on thicker document sets
- Maximum punching thickness of 0.137 inch (3.5mm) and punching width from 0.39 inch to 13.4 inches (10 to 340mm)
- Disengageable punch pins are easy to access and prevent partially punched holes

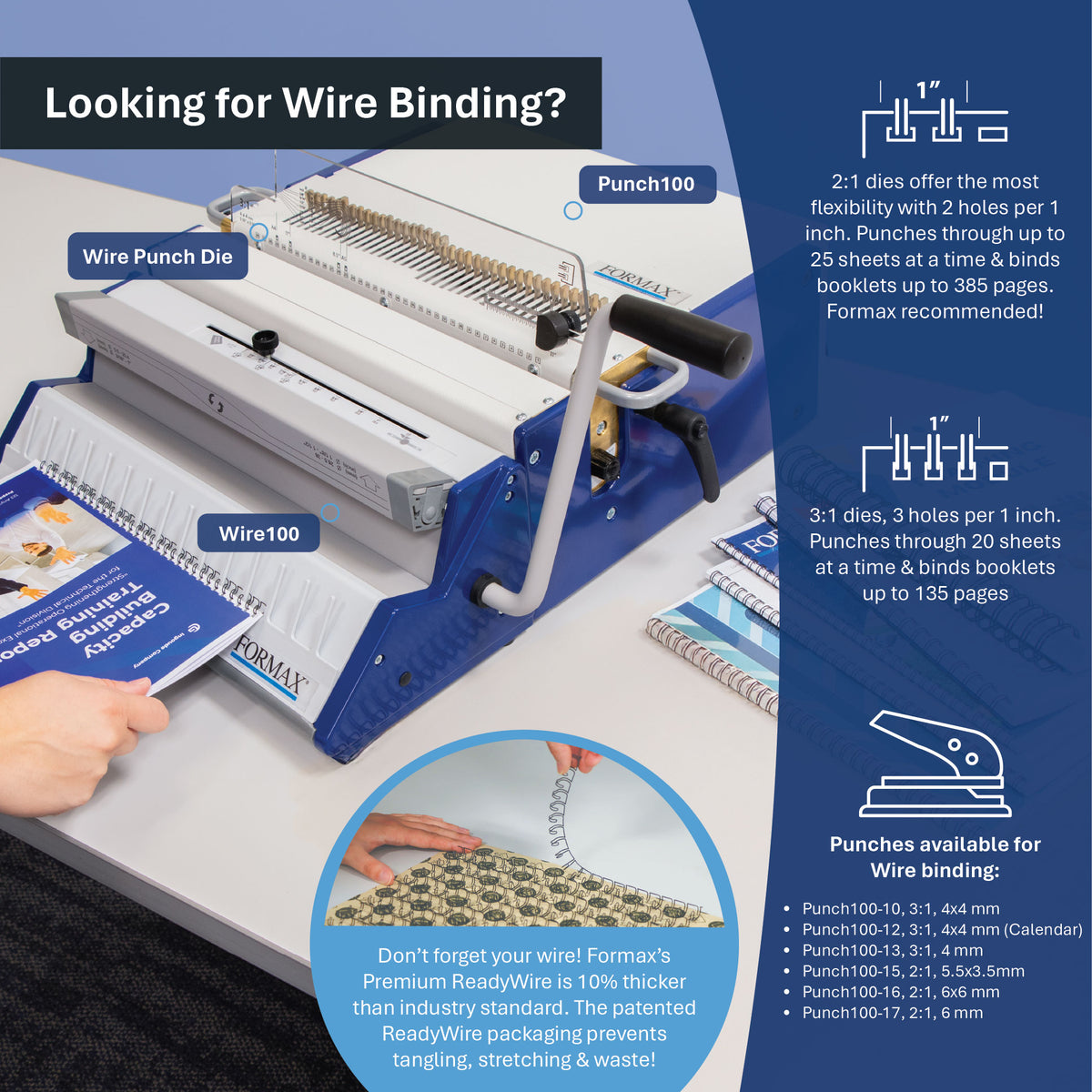

- Interchangeable punching dies swap without tools for double-loop wire, plastic comb, and spiral coil in various pitches

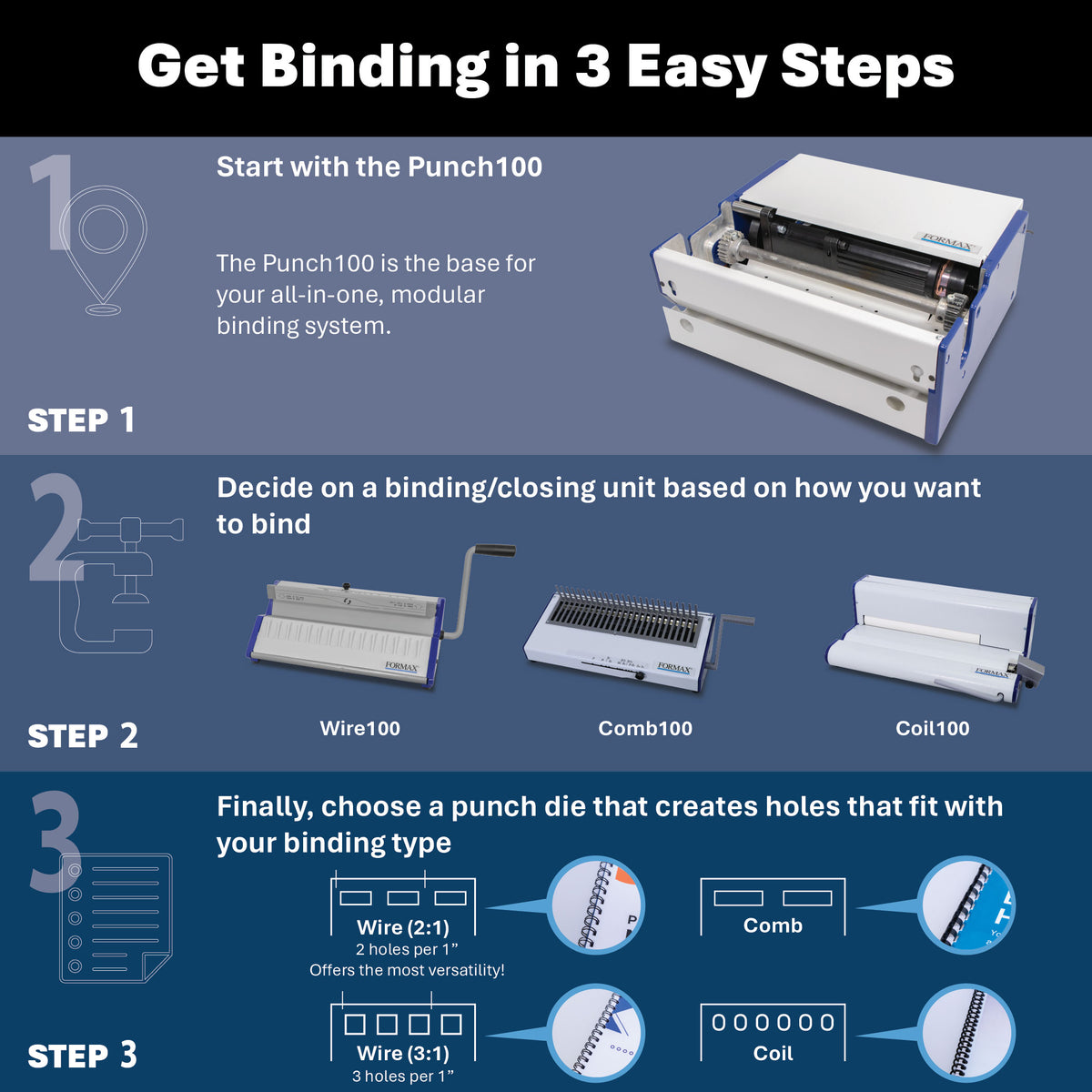

- Binding modules attach to the front of the Punch100 using integrated mounting pins for a combined punch and bind system

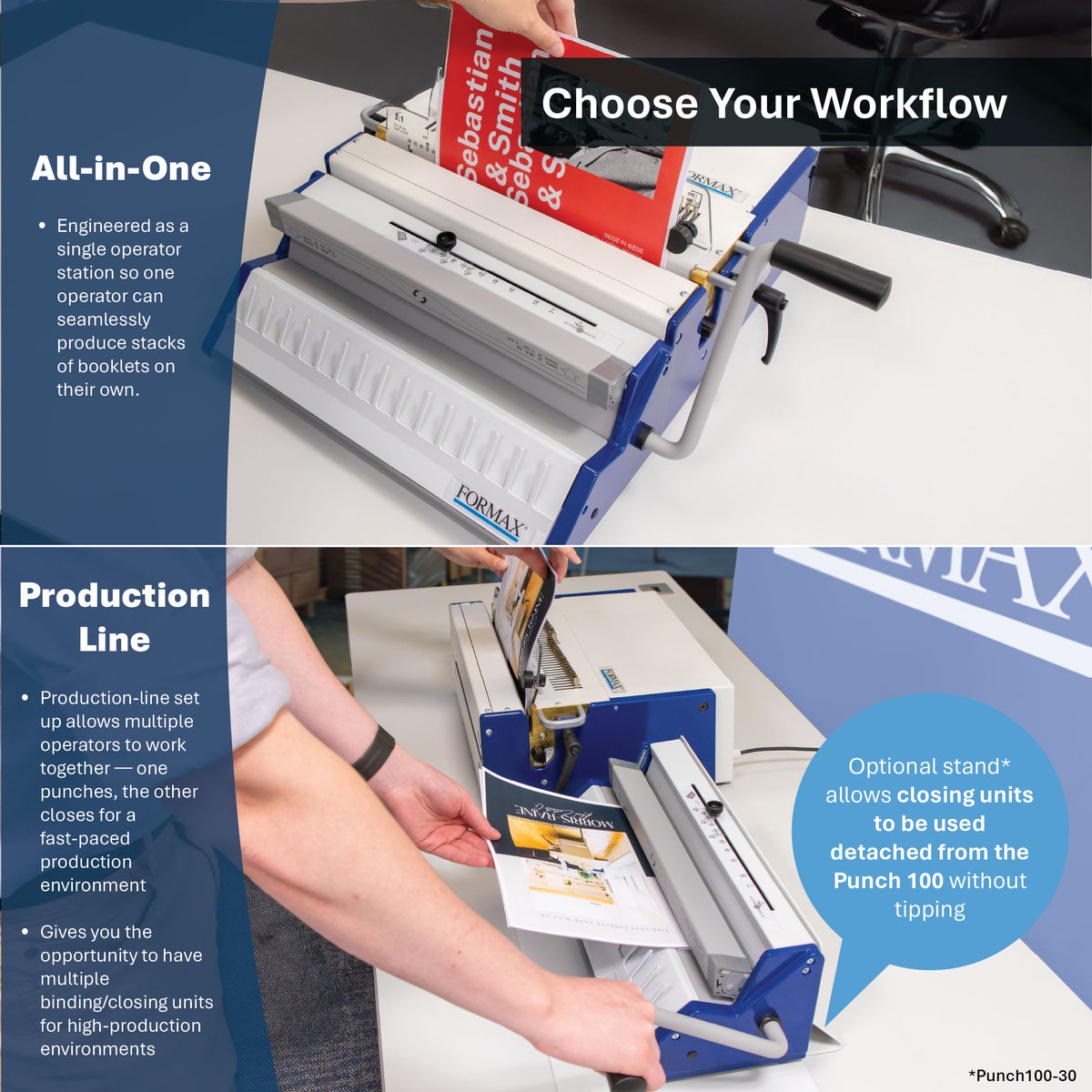

- Supports an assembly line workflow where one operator punches while others bind
- Adjustable depth gauge and variable margin depth for accurate hole placement
- Punches a variety of mixed stocks, with unpunched lengths from 1.57 inches to 31.5 inches (40 to 800mm)
- Easy-access slide-out waste tray for quick cleanup
- Rugged, compact design measuring 22 x 14 x 9.8 inches at 76 lbs
| Punching Speed | Up to 1,200 sheets/hr |
| Modular | Yes |
| Punching Width | 0.39 inch - 13.4 inches (10 - 340mm) |
| Unpunched Length | 1.57 inches - 31.5 inches (40 - 800mm) |
| Max. Punching Thickness | Up to 0.137 inch (3.5mm) |
| Punching Operation | Electric, foot pedal |
| Punch Dies Available | Double-loop wire, spiral coil, plastic comb (2:1 or 3:1 pitch) |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | Yes |
| Dimensions | 22 x 14 x 9.8 inches (559 x 356 x 250mm) |
| Weight | 76 lbs (34.5kg) |
| Power | 120V, 60Hz, 250W |
Product Description:
The Formax Punch100 Modular Electric Punching System is a heavy-duty electric punch that can be used as a stand-alone punch or paired with the Formax Wire100, Comb100, or Coil100 binding modules to produce professionally bound documents from one versatile platform. Foot pedal activation keeps production moving, and the Punch100 punches up to 1,200 sheets per hour with a maximum punching thickness of 0.137 inch (3.5mm) and a punching width up to 13.4 inches.
Its precision vertical punching system uses gravity to keep every sheet in place for consistent hole placement, even on thicker document sets. Disengageable punch pins are easy to access and make setup fast and reliable by preventing partially punched holes. Interchangeable punching dies can be swapped without tools, so a single punch can handle double-loop wire, plastic comb, and spiral coil in different pitches without investing in another machine. An adjustable depth gauge, variable margin depth, and an easy-access slide-out waste tray add everyday convenience. For greater productivity, the Punch100 can be used in an assembly line setup with multiple operators, where one punches while the others bind using the optional binding modules.
