Formax Punch100A Semi-Automatic Electric Punching Machine
Spec Sheet: View PDF File
✓ Automatic sensor or foot pedal activation
✓ Automatic sheet ejection onto adjustable catch tray
✓ Up to 1,200 mechanical cycles per hour
✓ Punches up to 36,000 sheets per hour
✓ Punches up to 0.13 inch (3.5mm) thick
✓ Punching width up to 13.4 inches
✓ Control panel with LED indicators
✓ Adjustable document shelf
✓ Interchangeable dies for wire, comb, and coil
✓ Quick die changes, no tools required
✓ Disengageable punch pins
✓ Adjustable depth gauge and variable margin depth
✓ Large slide-out waste tray
✓ 115V, 60Hz, 300W power supply
- Semi-automatic electric punch for a wide range of binding applications

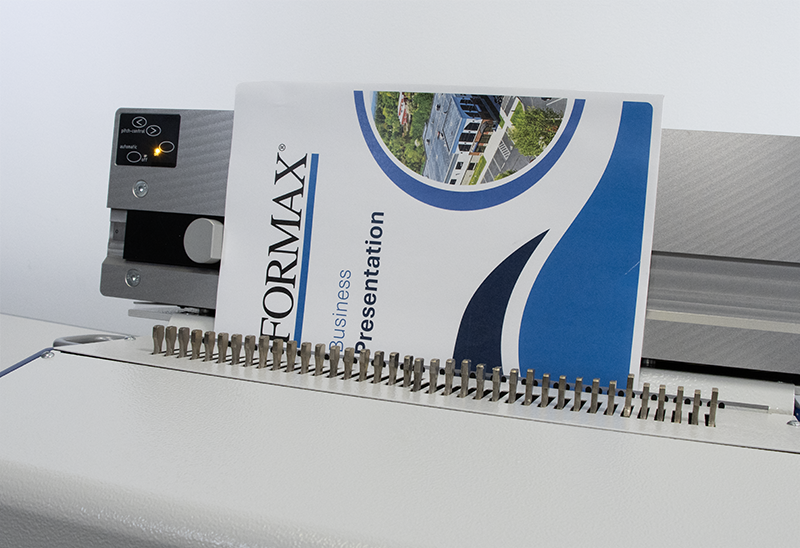

- Adjustable paper stop with automatic sensor engages the punch as soon as paper is inserted, with foot pedal activation also available

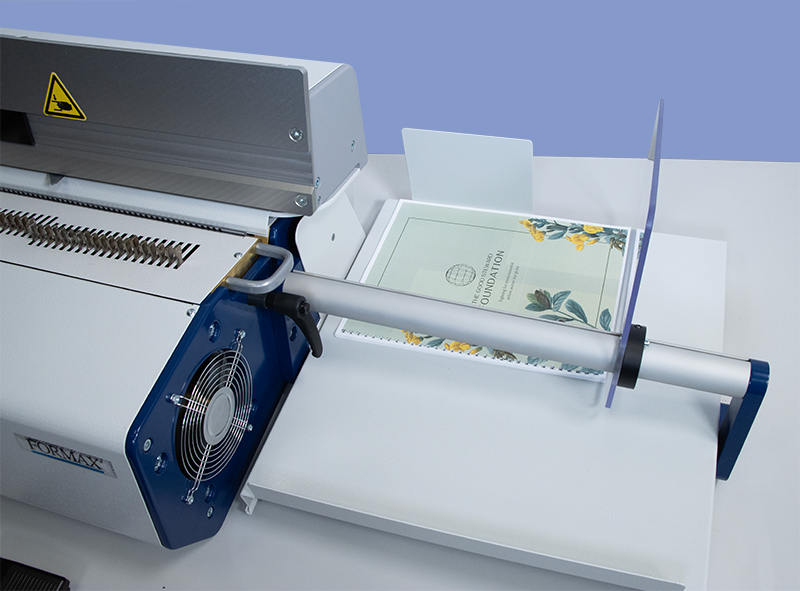

- Punched sheet sets are automatically ejected onto an adjustable catch tray, keeping them neat and ready for binding
- Runs up to 1,200 mechanical cycles per hour and punches up to 36,000 sheets per hour
- Precision vertical punching system uses gravity to keep every sheet in place for consistent hole placement on thicker document sets
- Maximum punching thickness of 0.13 inch (3.5mm), punching width from 0.39 inch to 13.4 inches (10 to 340mm), and unpunched length from 4.3 inches to 31.5 inches (110 to 800mm)

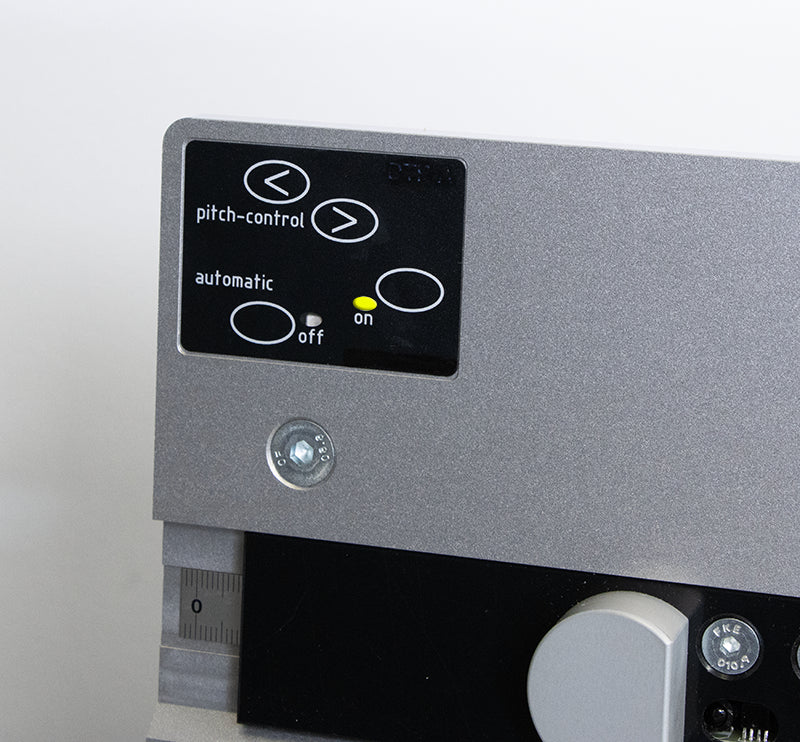

- User-friendly control panel shows paper format, pitch adjustment, and auto sensor status with LED indicators

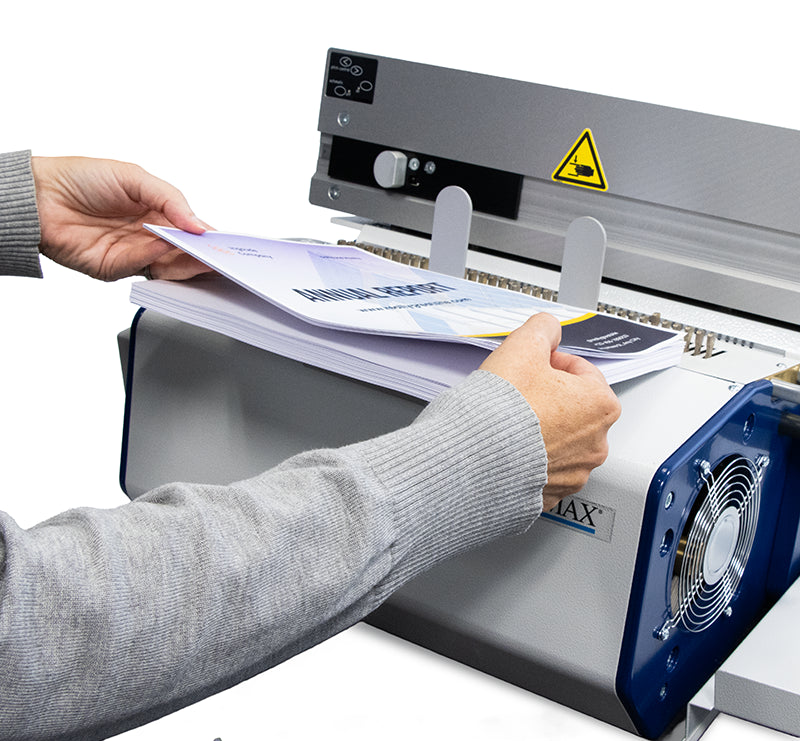

- Adjustable document shelf keeps pages in order before punching

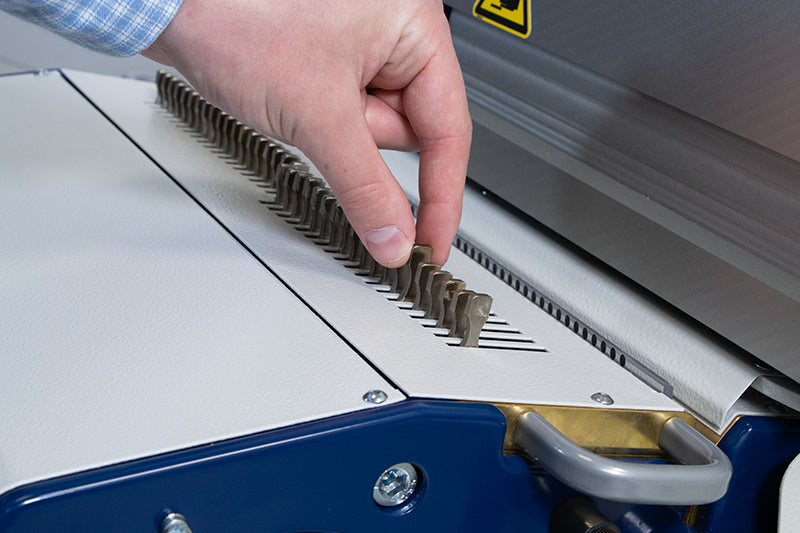

- Punch pins are easy to access and can be disengaged individually without tools to prevent partially punched holes

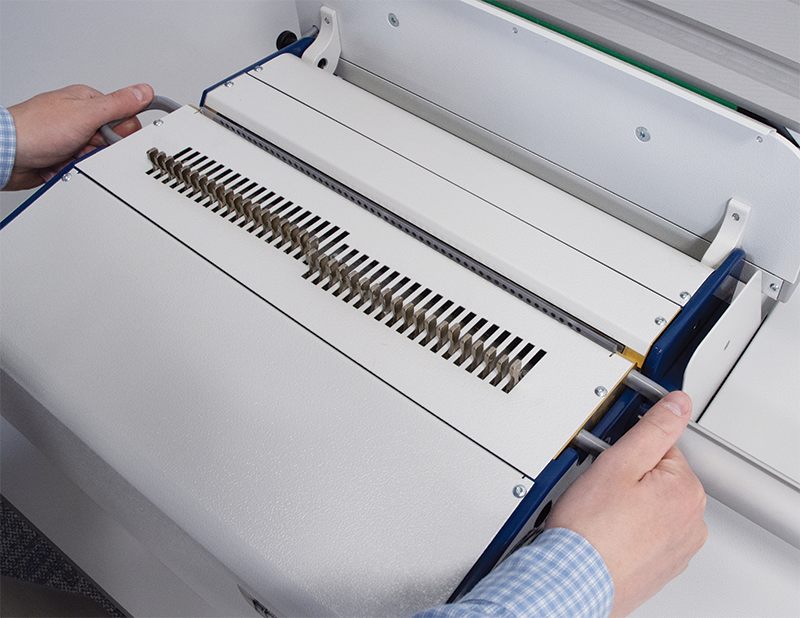

- Heavy-duty interchangeable dies swap without tools, with options for 3:1 and 2:1 double-loop wire, plastic comb, and spiral coil
- Adjustable depth gauge and variable margin depth for accurate hole placement
- Punches a variety of mixed stocks, with a large easy-access slide-out waste tray
- Measures 34.6 x 25 x 15 inches and weighs 116 lbs
| Mechanical Cycles | Up to 1,200/hr |
| Max. Punched Sheets | Up to 36,000/hr |
| Punching Width | 0.39 inch - 13.4 inches (10 - 340mm) |
| Unpunched Length | 4.3 inches - 31.5 inches (110 - 800mm) |
| Max. Punching Thickness | Up to 0.13 inch (3.5mm) |
| Punching Operation | Automatic sensor or foot pedal |
| Punch Dies Available | 3:1, 2:1 double-loop wire, plastic comb, spiral coil |
| Disengageable Punch Pins | Yes |
| Variable Margin Depth | Yes |
| Dimensions | 34.6 x 25 x 15 inches (880 x 640 x 380mm) |
| Weight | 116 lbs (53kg) |
| Power | 115V, 60Hz, 300W |
Product Description:

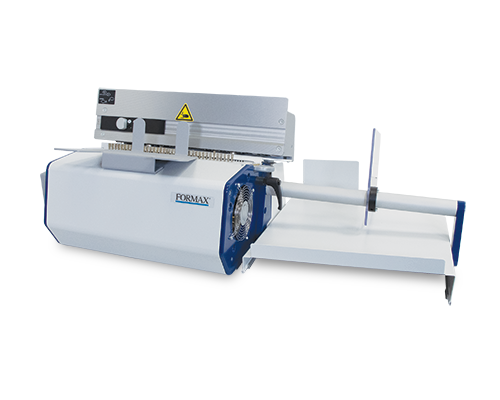

The Formax Punch100A Semi-Automatic Electric Punching Machine is a heavy-duty tabletop booklet punch built for a wide range of binding applications. The adjustable paper stop includes an automatic sensor that engages the punching mechanism as soon as paper is inserted, then automatically ejects the punched sheets onto an adjustable catch tray, keeping them neat and ready for binding. Operators can also activate the punch with the convenient foot pedal. The Punch100A runs up to 1,200 mechanical cycles per hour, punching up to 36,000 sheets per hour with a maximum punching thickness of 0.13 inch (3.5mm).
Its precision vertical punching system uses gravity to keep every sheet in place for consistent hole placement, even on thicker document sets. A handy document shelf keeps pages in order before punching, and the punch pins are easy to access and can be disengaged individually without tools to prevent partially punched holes. The user-friendly control panel shows paper format, pitch adjustment, and auto sensor status with LED indicators. Heavy-duty interchangeable dies swap easily without tools, with options for double-loop wire, plastic comb, and spiral coil in various pitches, so one punch can handle multiple binding styles. An adjustable depth gauge, variable margin depth, and a large slide-out waste tray complete the Punch100A for offices and print rooms with regular punching needs.
