Spec Sheet: View PDF File
✓ Manual lever-activated punching with precision vertical system
✓ Integrated electric coil inserter with rubber roller
✓ Integrated manual coil cutting and crimping tool
✓ Punching speed up to 8,000 sheets per hour
✓ Binding speed up to 50 booklets per hour
✓ Binds up to 160 sheets
✓ Specially hardened, disengageable punch pins
✓ Measuring guides for document and coil size
✓ Quick size adjustment with simple knob slides
✓ Easy-empty sliding waste tray
✓ Heavy-duty construction, compact size
✓ Punching width from 0.39 inch to 14 inches
✓ 115V, 60Hz, 90W power supply

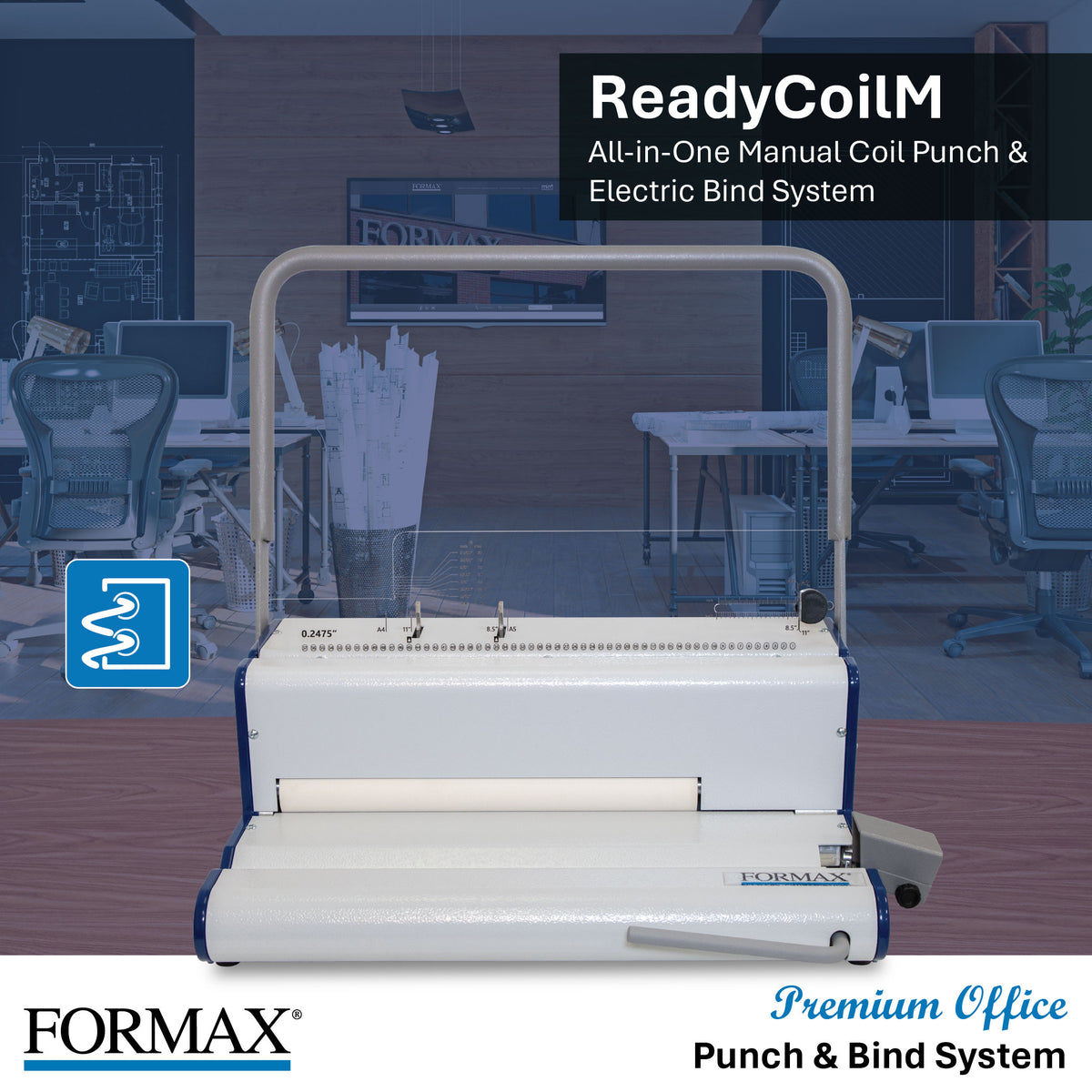

- Combination punch and coil binding system combining manual lever-activated punching with an integrated electric coil inserter for low to medium volume offices

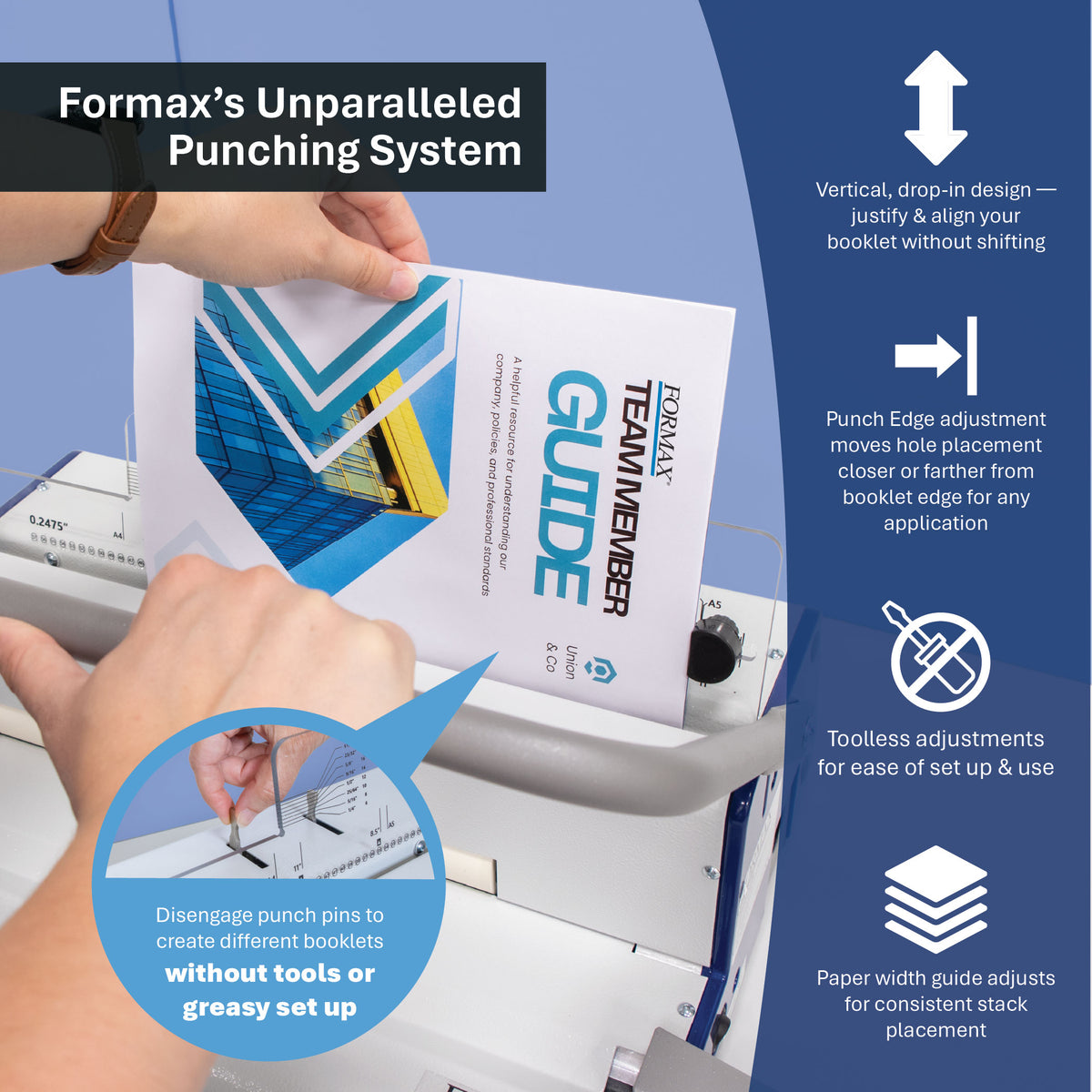

- Precision vertical punching system uses gravity to keep sheets in place for consistent hole placement on document sets up to 0.078 inch (2mm) thick
- Specially hardened, disengageable punch pins can be accessed without tools to prevent partially punched holes on various paper sizes
- Electric coil inserter with rubber roller automatically threads PVC spiral coil for fast, consistent binding
- Integrated manual coil cutting and crimping tool provides a professional 45-degree coil crimp finish
- Punches up to 8,000 sheets per hour and binds up to 50 booklets per hour, handling documents up to 160 sheets
- Clearly marked thickness gauge visually determines the correct coil size, with measuring guides for documents and coil diameter
- Quick size adjustment with simple knob slides to accommodate a variety of paper sizes from 0.39 inch to 14 inches wide
- Staggered punching pins with oval 5.0 x 4.0mm punch dies and 0.2475 inch (6mm) pitch
- Easy-empty sliding waste tray and automatic roller stop for operator safety

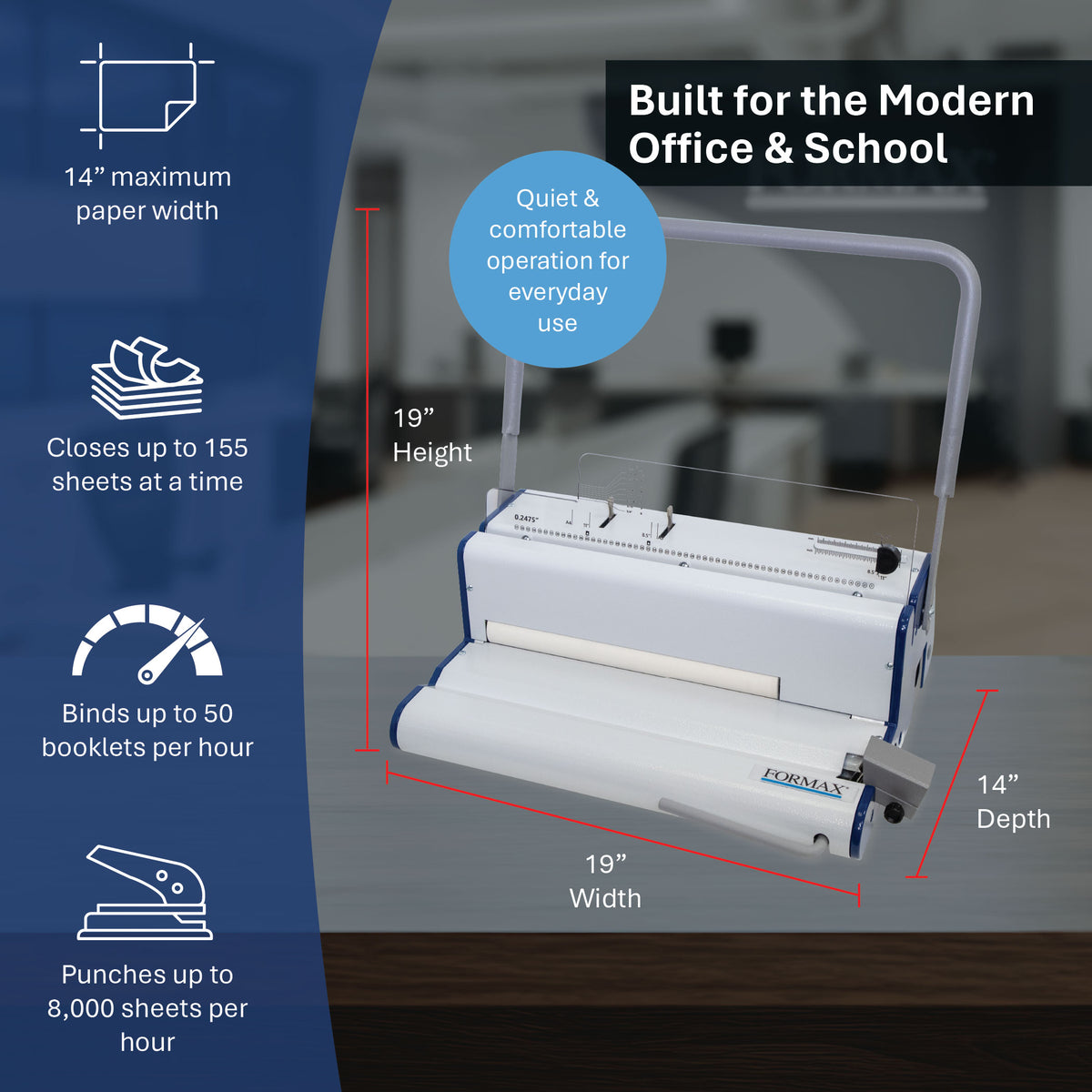

- Heavy-duty construction in a compact 18.5 x 14 x 18.5 inch footprint at 42 lbs
- Binding thickness range from 0.04 inch to 0.62 inch (1 to 16mm) for flexible project sizes
| Punching Speed | Up to 8,000 sheets/hr |
| Punching Width | 0.39 inch - 14 inches (10 - 360mm) |
| Unpunched Length | 1.96 inches - 10.6 inches (50 - 270mm) |
| Max. Punching Thickness | Up to 0.078 inch (2mm) |
| Punching Operation | Manual |
| Punch Dies | Oval 5.0 x 4.0mm |
| Pitch | 0.2475 inch (6mm) |
| Disengageable Punch Pins | Yes |
| Binding Thickness | 0.04 inch - 0.62 inch (1 - 16mm) |
| Binding Width | 0.39 inch - 14 inches (10 - 360mm) |
| Binding Operation | Electric insert, manual crimp & cut |
| Binding Speed | Up to 50 booklets/hr |
| Max. Binding Capacity | Up to 160 sheets |
| Dimensions | 18.5 x 14 x 18.5 inches (470 x 355 x 470mm) |
| Weight | 42 lbs (19kg) |
| Power | 115V, 60Hz, 90W |
Product Description:

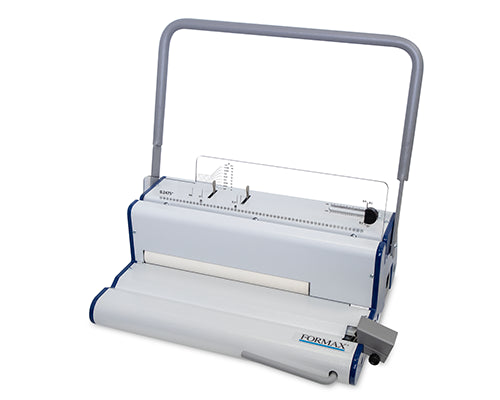

The Formax ReadyCoilM Combination Punch and Coil Binder is a premium office binding system that combines manual punching with an integrated electric coil inserter for easy, efficient booklet finishing. Designed for offices with low to medium volume binding needs, this machine punches up to 8,000 sheets per hour and binds up to 50 booklets per hour, handling documents up to 160 sheets thick. The precision vertical punching system uses gravity to keep every sheet in place, ensuring consistent hole placement even on thicker document sets.
The ReadyCoilM features specially hardened, disengageable punch pins that can be easily accessed without tools to prevent partially punched holes when working with different paper sizes. The electric coil inserter uses a rubber roller to automatically thread PVC spiral coil, while the integrated coil cutting and crimping tool provides a professional 45-degree coil crimp finish. User-friendly features include clearly marked measuring guides for documents and coil diameter, simple knob slides for quick size adjustment, an easy-empty sliding waste tray, and automatic roller stop for operator safety. Built with heavy-duty construction in a compact footprint, the ReadyCoilM is an economical solution for schools, offices, and print rooms that need reliable coil binding without a large machine.
