Spec Sheet: View PDF File
✓ Electric foot pedal operation
✓ Binds up to 400 books per hour
✓ Binds booklets up to 340 sheets
✓ Wire diameters from 1/4 inch to 1 1/2 inches
✓ Compatible with 2:1, 3:1, and 4:1 pitch
✓ Binding width up to 14 inches
✓ Wire diameter adjustment hand wheel
✓ Integrated easy-load wire holder
✓ Parallel adjustment knob for a precise bind
✓ Automatic safety shut-off sensor
✓ Heavy-duty all-metal design
✓ 115V, 60Hz, 250W power supply

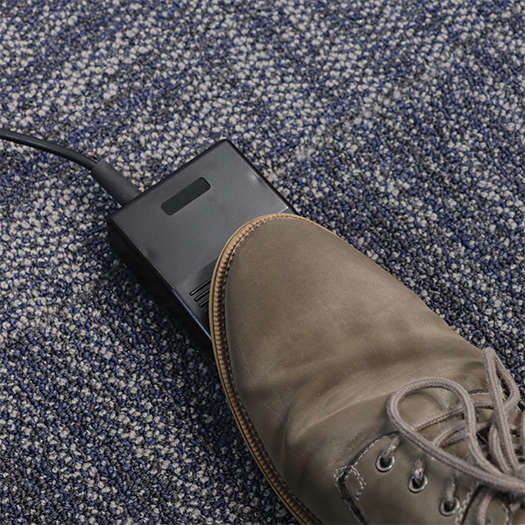

- Electric wire binding machine with foot pedal operation, binding up to 400 books per hour

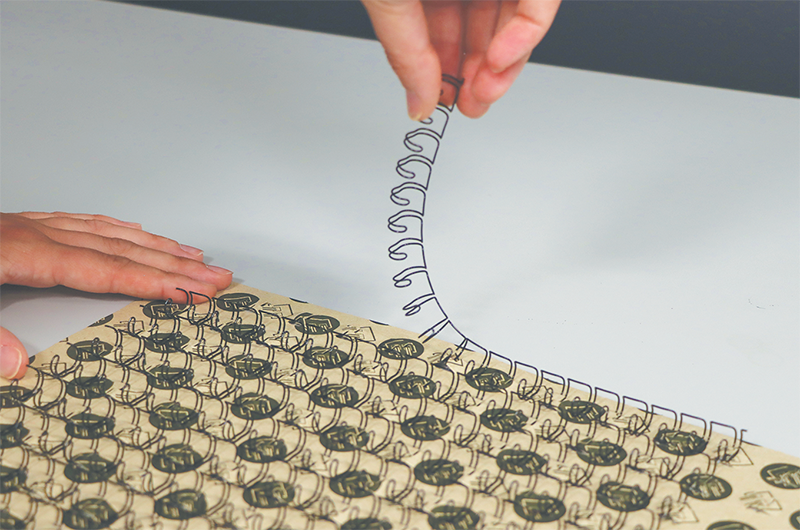

- Binds booklets up to 340 sheets using ReadyWire double-loop wire from 1/4 inch to 1 1/2 inches in diameter
- Works with 2:1, 3:1, and 4:1 pitch wire for flexibility across different binding projects
- Handles binding widths from 0.39 inch to 14 inches (10 to 360mm) and binding thickness from 0.03 inch to 1.3 inches (1 to 34mm)
- Accommodates unbound edges from 2.5 inches to 23.6 inches (65 to 600mm)

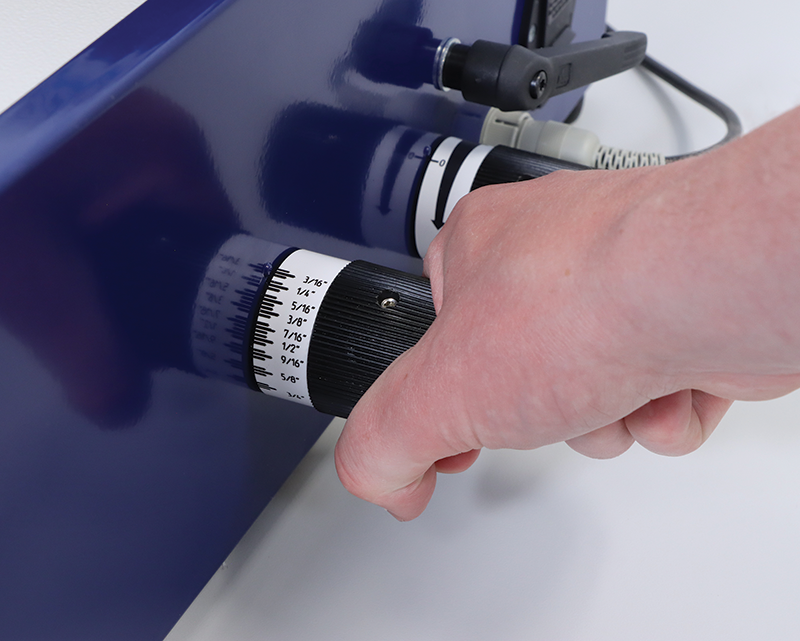

- Intuitive wire diameter adjustment hand wheel for fast, accurate setup

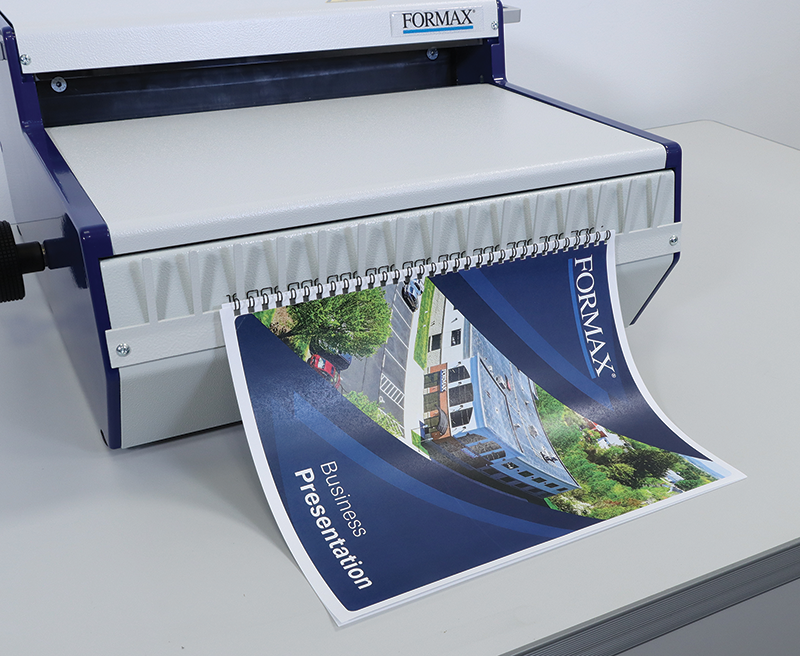

- Integrated easy-loading wire holder with convenient fingers for simple paper loading onto the wire
- Parallel adjustment knob ensures a precise bind from the first document to the last

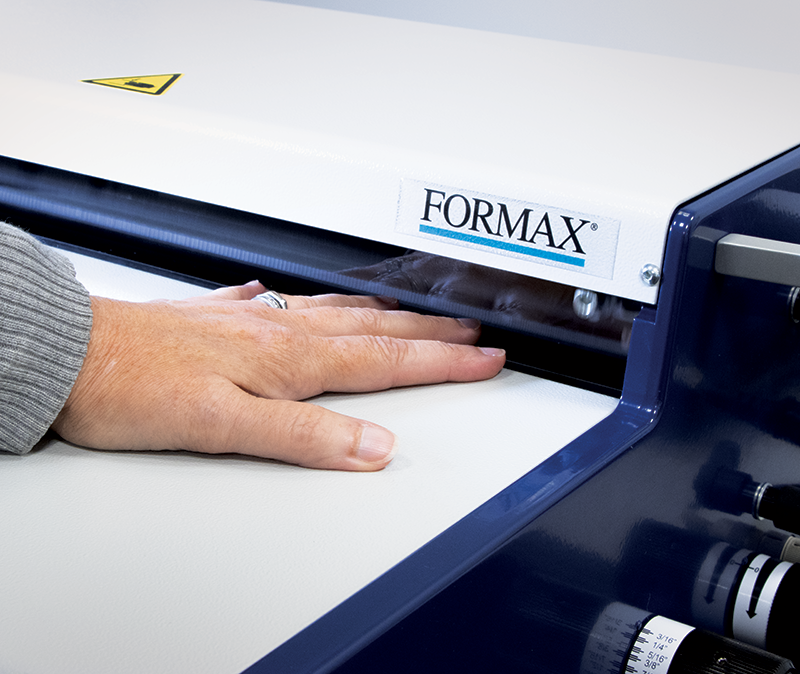

- Automatic safety shut-off sensor stops the machine and cuts power to protect the operator

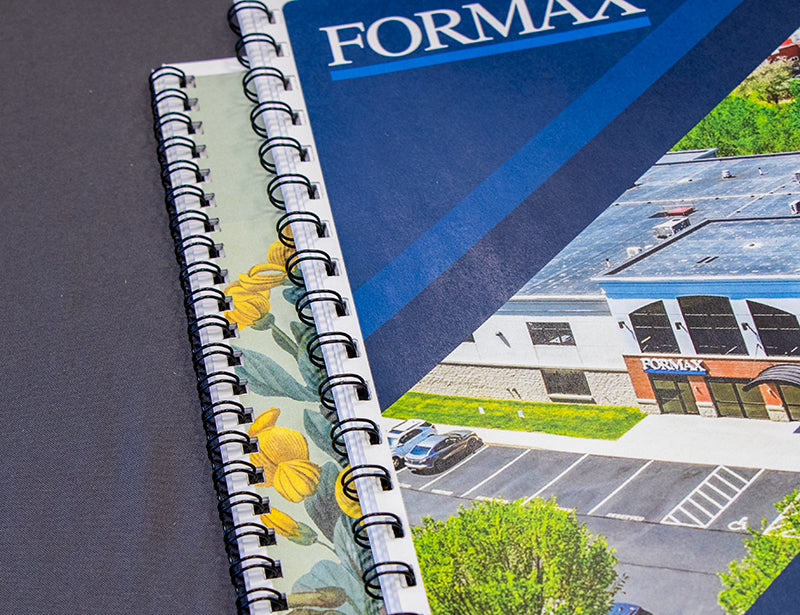

- Wire-bound documents open a full 360 degrees and lay flat for easier reading, writing, scanning, and presentations
- Heavy-duty all-metal design measuring 21 x 21 x 9.25 inches at 84 lbs
| Pitch | 2:1, 3:1, 4:1 |
| Binding Thickness | 0.03 inch - 1.3 inches (1 - 34mm) |
| Min. Binding Width | 0.39 inch (10mm) |
| Max. Binding Width | 14 inches (360mm) |
| Min. Unbound Edge | 2.5 inches (65mm) |
| Max. Unbound Edge | 23.6 inches (600mm) |
| Binding Operation | Electric, foot pedal |
| Binding Speed | Up to 400 booklets/hr |
| Binding Capacity | Up to 340 sheets |
| Wire Binding Diameter | 1/4 inch - 1 1/2 inches |
| Dimensions | 21 x 21 x 9.25 inches (533 x 533 x 235mm) |
| Weight | 84 lbs (38kg) |
| Power | 115V, 60Hz, 250W |
Product Description:

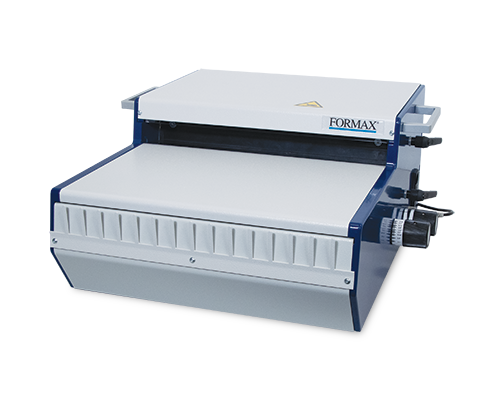

The Formax Wire200 Electric Wire Binding Machine provides fast, effortless double-loop wire binding with consistent, professional results. Its electric foot pedal operation binds up to 400 books per hour, handling booklets up to 340 sheets with ReadyWire diameters from 1/4 inch to 1 1/2 inches. The Wire200 supports 2:1, 3:1, and 4:1 pitch wire and handles paper stacks up to 14 inches (360mm) wide, making it a reliable choice for everyday wire binding.
Designed for easy operation, the Wire200 features an intuitive wire diameter adjustment hand wheel for fast, accurate setup and an integrated easy-loading wire holder with convenient fingers that hold the wire in place for simple paper loading. The parallel adjustment knob ensures a precise bind from the first document to the last, and the automatic safety shut-off sensor stops the machine and cuts power to protect the operator. Wire-bound documents open a full 360 degrees and lay flat for easier reading, writing, scanning, and presentations, while double-loop wire binding keeps pages secure through years of use. With heavy-duty all-metal construction, the Wire200 is suited for offices, schools, and print shops that bind wire documents on a regular basis.
