Spec Sheet: View PDF File
✓ Electric foot pedal operation
✓ Binds up to 400 books per hour
✓ Binds booklets up to 340 sheets
✓ Wire diameters from 1/4 inch to 1 1/2 inches
✓ Compatible with 2:1, 3:1, and 4:1 pitch
✓ Binding width up to 19.6 inches
✓ Wire diameter adjustment hand wheel
✓ Integrated easy-load wire holder
✓ Parallel adjustment knob for a precise bind
✓ Automatic safety shut-off sensor
✓ Heavy-duty all-metal design
✓ 115V, 60Hz, 250W power supply
- Electric wire binding machine with foot pedal operation, binding up to 400 books per hour
- Binds booklets up to 340 sheets using ReadyWire double-loop wire from 1/4 inch to 1 1/2 inches in diameter
- Works with 2:1, 3:1, and 4:1 pitch wire for flexibility across different binding projects
- Handles binding widths from 0.39 inch to 19.6 inches (10 to 500mm) and binding thickness from 0.03 inch to 1.3 inches (1 to 34mm)
- Accommodates unbound edges from 2.5 inches to 23.6 inches (65 to 600mm)
- Intuitive wire diameter adjustment hand wheel for fast, accurate setup
- Integrated easy-loading wire holder with convenient fingers for simple paper loading onto the wire
- Parallel adjustment knob ensures a precise bind from the first document to the last
- Automatic safety shut-off sensor stops the machine and cuts power to protect the operator
- Wire-bound documents open a full 360 degrees and lay flat for easier reading, writing, scanning, and presentations
- Heavy-duty all-metal design measuring 25 x 21 x 9.25 inches at 101 lbs
| Pitch | 2:1, 3:1, 4:1 |
| Binding Thickness | 0.03 inch - 1.3 inches (1 - 34mm) |
| Min. Binding Width | 0.39 inch (10mm) |
| Max. Binding Width | 19.6 inches (500mm) |
| Min. Unbound Edge | 2.5 inches (65mm) |
| Max. Unbound Edge | 23.6 inches (600mm) |
| Binding Operation | Electric, foot pedal |
| Binding Speed | Up to 400 booklets/hr |
| Binding Capacity | Up to 340 sheets |
| Wire Binding Diameter | 1/4 inch - 1 1/2 inches |
| Dimensions | 25 x 21 x 9.25 inches (635 x 533 x 235mm) |
| Weight | 101 lbs (46kg) |
| Power | 115V, 60Hz, 250W |
Product Description:

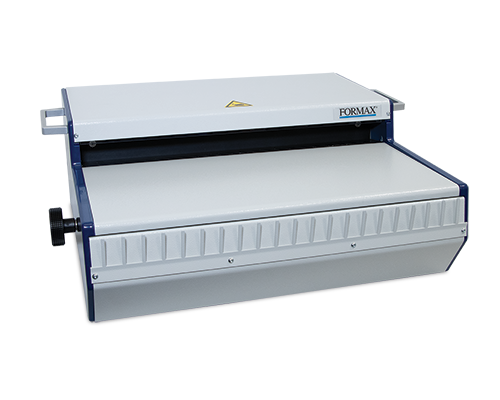

The Formax Wire300 Electric Wire Binding Machine provides fast, effortless double-loop wire binding with consistent, professional results. Its electric foot pedal operation binds up to 400 books per hour, handling booklets up to 340 sheets with ReadyWire diameters from 1/4 inch to 1 1/2 inches. The Wire300 supports 2:1, 3:1, and 4:1 pitch wire and handles paper stacks up to 19.6 inches (500mm) wide, offering all the features of the Wire200 with the capacity to handle wider booklets.
Designed for easy operation, the Wire300 features an intuitive wire diameter adjustment hand wheel for fast, accurate setup and an integrated easy-loading wire holder with convenient fingers that hold the wire in place for simple paper loading. The parallel adjustment knob ensures a precise bind from the first document to the last, and the automatic safety shut-off sensor stops the machine and cuts power to protect the operator. Wire-bound documents open a full 360 degrees and lay flat for easier reading, writing, scanning, and presentations, while double-loop wire binding keeps pages secure through years of use. With heavy-duty all-metal construction, the Wire300 is suited for offices, schools, and print shops that bind wire documents on a regular basis.
